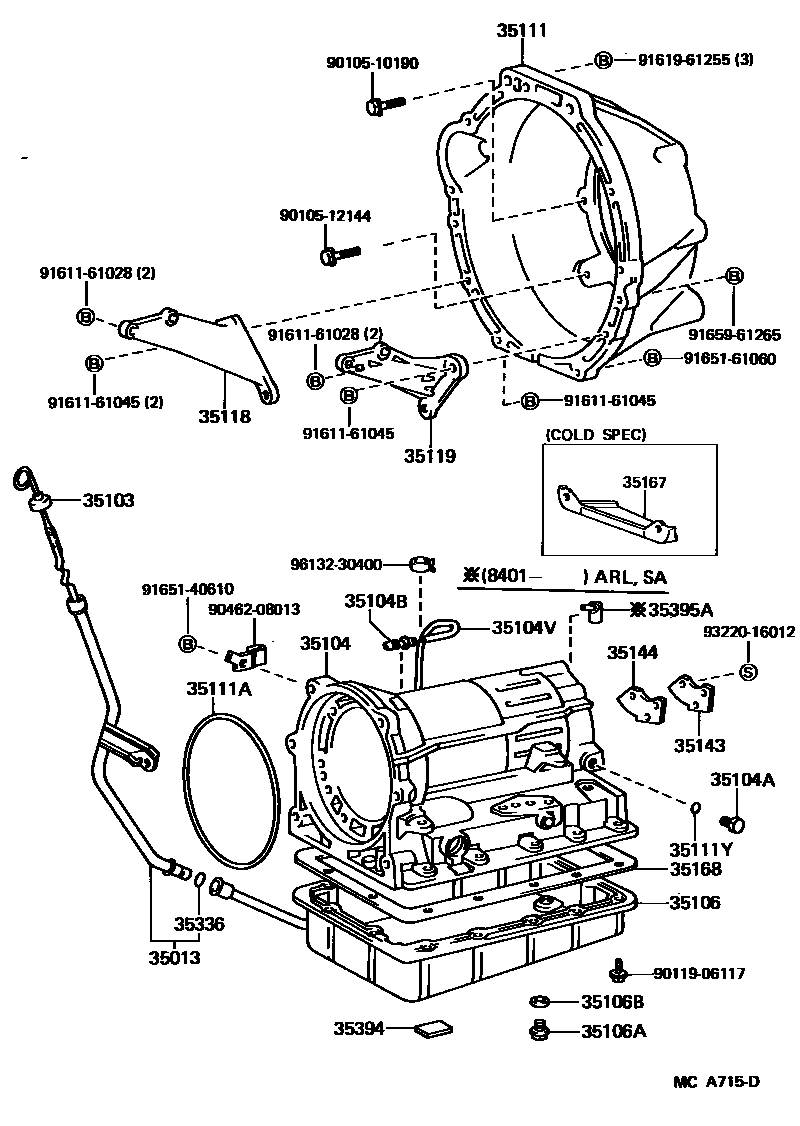

TRANSMISSION CASE & OIL PAN (ATM)

0001 1 0002 1

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-26020iYH50,51,53,61,63..ATM198212-198807

main35013-26030iLH50,51,61..4HC198212-198708

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-26020iYH50..4HC198212-198308

main35103-26021iYH50,51,53,61,63..ATM198308-198807

main35103-30130iLH50..4HC198212-198308

sub35103-30131

main35103-30131iLH50,51,61..4HC198308-198708

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-26011iLH50,YH50..4HC198212-198401

sub35104-26020

main35104-26020iLH51,61,YH51,61..4HC198401-198508

sub35104-26030

main35104-26021iLH51,61,YH51,53,61,63..ATM198508-198807

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03084iLH5#,61,YH5#,61..4HC198212-198508

main90930-03098iLH51,61,YH51,53,61,63..ATM198508-198807

T/M CASE SIDE

main90930-03099iLH51,61,YH51,53,61,63..ATM198508-198807

BODY SIDE

35104VHOSE (FOR BREATHER PLUG)

main90445-10008iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-30050iLH50,51,61..4HC198212-198708

sub35106-30051

main35106-30060iYH50,51,53,61,63..ATM198212-198807

sub35106-30061

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10003iLH50,YH50..4HC198212-198307

sub90341-10011

main90341-10006iLH50,51,61,YH50,51,53,61,63..ATM198307-198807

sub90341-10011

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-22060iLH50,51,61..4HC198212-198708

sub35111-26030

main35111-28010iYH5#,61..ATM198212-198509

sub35111-28011

main35111-28011iYH51,53,61,63..ATM198509-198807

35111ARING, O (FOR AUTOMATIC TRANSMISSION HOUSING)

main90301-99006iLH50,51,61,YH50,51,53,61,63..ATM198212-198708

sub90301-99054

main90301-99054iYH53..4HC198708-198807

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

35118PLATE, STIFENER, RH (ATM)

main33118-25020iLH50,51,61..4HC198212-198708

main33118-28010iYH5#,61,63..ATM198212-198610

main33118-36031iYH51,53,61,63..ATM198610-198807

35119PLATE, STIFENER, LH (ATM)

main33119-25020iLH50,51,61..4HC198212-198708

main33119-28010iYH5#,61,63..ATM198212-198610

main33119-36030iYH51,53,61,63..ATM198610-198807

35143COVER, TRANSMISSION CASE, REAR

main35143-22010iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

35144GASKET, TRANSMISSION CASE REAR COVER

main35144-22010iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

sub35144-28010

35167PROTECTOR, TRANSMISSION OIL PAL

main35167-26010iYH51,61..4HC198608-198708

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-22011iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

35395ASTRAINER, GOVERNOR OIL

main35395-40010iYH51..ATM..GL;YH61..4HC..ARL198401-198708

9010510190

main90105-10190

9010512144

main90105-12144

9011906117

main90119-06117

9046208013

main90462-08013

9161161028

main91611-61028

9161161045

main91611-61045

9161961255

main91619-61255

9165140610

main91651-40610

9165161060

main91651-61060

9165961265

main91659-61265

9322016012

main93220-16012

9613230400

main96132-30400

33 parts on this diagram · 2 diagrams in section
