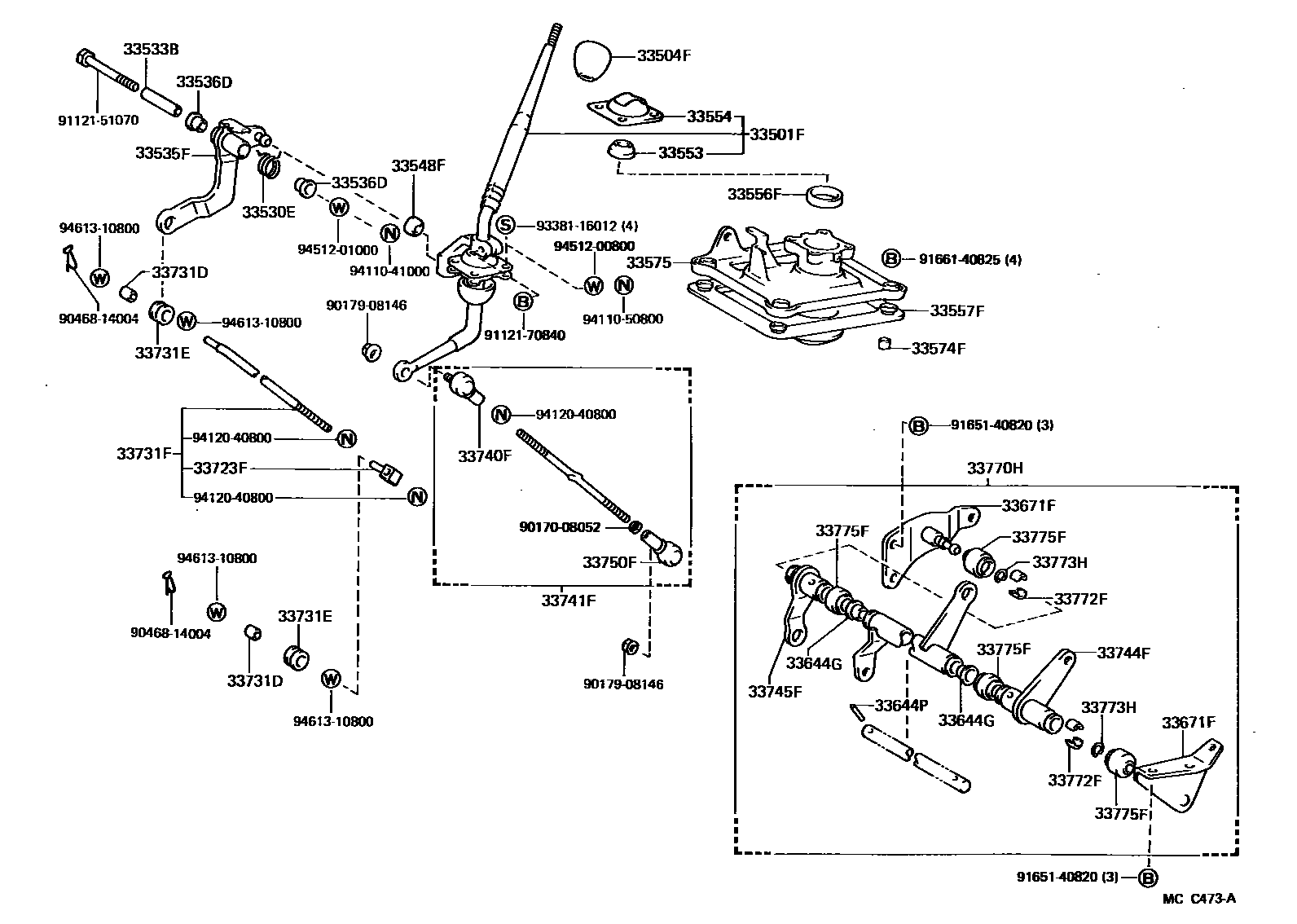

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1

33501FSHAFT SUB-ASSY, CONTROL (FOR FLOOR SHIFT)

main33501-26192iYH51,53..5F198508-198708

main33501-26220iLH56,66,YH56,66198608-198708

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-20052-01iLH56,66,YH51,53,56,66..5F198508-198708

BLACK,BLACK

sub33504-20052

sub33504-14050

main33542-32040-14iYH51,53..4FC198508-198708

BLUE,BLUE

sub33542-32040

33530ESPRING, TENSION (FOR SELECT RETURN)

main90508-35016iLH56,66,YH51,53,56,66..5F198508-198708

33533BTUBE (FOR BELLCRANK SHAFT)

main90387-10004iLH56,66,YH51,53,56,66..5F198508-198708

33535FLEVER, CONTROL SELECT (FOR FLOOR SHIFT)

main33535-26051iLH56,66,YH51,53,56,66..5F198508-198708

33536DBUSH, CONTROL SELECT LEVER SHAFT (FOR FLOOR SHIFT)

main90386-13192iLH56,66,YH51,53,56,66..5F198508-198708

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-12021iLH56,66,YH51,53,56,66..5F198508-198708

33553SEAT, SHIFT LEVER SPRING

main33553-28010iLH56,66,YH51,53,56,66..5F198508-198708

33554CAP, SHIFT LEVER

main33554-28010iLH56,66,YH51,53,56,66..5F198508-198708

33556FSEAT, TRANSMISSION SHIFT LEVER BALL

main33556-27010iLH56,66,YH51,53,56,66..5F198508-198708

33557FCOVER, CONTROL BELLCRANK DUST (FOR FLOOR SHIFT)

main33557-28010iLH56,66,YH51,53,56,66..5F198508-198708

33574FRETAINER, DUST SEAL (FOR FLOOR SHIFT)

main33574-28010iLH56,66,YH51,53,56,66..5F198508-198708

33575RETAINER, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33575-26041iLH56,66,YH51,53,56,66..5F198508-198708

33644GBUSH (FOR GEAR SELECTING SHAFT)

main90386-15110iLH56,66,YH51,53,56,66..5F198508-198708

33644PPIN (FOR GEAR SELECTING SHAFT)

main90256-08001iLH56,66,YH51,53,56,66..5F198604-198708

main90256-08002iYH51..5F198508-198604

33671FSUPPORT, CONTROL ROD, NO.1

main33671-26090iYH51,53..5F198508-198708

INNER

main33671-26130iLH56,66,YH56,66198608-198708

INNER

main33673-26080iLH56,66,YH51,53,56,66..5F198508-198708

OUTER

33723FSWIVEL, CONNECTING ROD (FOR FLOOR SHIFT)

main33723-10020iLH56,66,YH51,53,56,66..5F198508-198708

33731DBUSH (FOR GEAR SELECTING ROD)

main90389-08005iLH56,66,YH51,53,56,66..5F198508-198708

33731EGROMMET (FOR GEAR SELECTING ROD)

main90480-17177iLH56,66,YH51,53,56,66..5F198508-198708

33731FROD, GEAR SELECTING, NO.1 (FOR FLOOR SHIFT)

main33720-26042iLH56,66,YH51,53,56,66..5F198508-198708

33740FEND ASSY, CONNECTING ROD, NO.1(FOR FLOOR SHIFT)

main33740-26010iLH56,66,YH51,53,56,66..4FC,5F198508-198708

33741FROD, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)

main33710-26120iYH51,53..4FC198508-198708

main33710-26131iLH56,66,YH51,53,56,66..5F198508-198708

33744FLEVER, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)

main33744-26120iYH51,53..5F198508-198708

main33744-26150iLH56,66,YH56,66198608-198708

33745FLEVER, GEAR SHIFTING, NO.2 (FOR FLOOR SHIFT)

main33745-26102iLH56,66,YH51,53,56,66..5F198508-198708

33750FEND, CONNECTING ROD, NO.2 (FOR FLOOR SHIFT)

main33750-26010iLH56,66,YH51,53,56,66..5F198508-198708

33770HCROSS SHAFT ASSY (FOR FLOOR SHIFT)

main33770-26032iYH51,53..5F198508-198708

main33770-26060iYH51,53..4FC198508-198708

main33770-26100iLH56,66,YH56,66198608-198708

33772FBUSH, CROSS SHAFT SUPPORT, NO.1 (FOR FLOOR SHIFT)

main33772-20010iYH51,53..4FC198508-198708

INNER

main33772-35011iYH51,53..4FC198508-198708

OUTER

33773HRING, SNAP (FOR CROSS SHAFT SUPPORT SNAP)

main96151-01600iLH56,66,YH51,53,56,66..4FC,5F198508-198708

33775FCOVER, CROSS SHAFT DUST, NO.1 (FOR FLOOR SHIFT)

main33775-20020iYH51,53..4FC198508-198708

INNER

main33775-26030iYH51,53..4FC198508-198708

OUTER

main33775-28040iLH56,66,YH51,53,56,66..5F198508-198708

OUTER

main33775-35010iYH51,53..4FC198508-198708

CTR

main33789-36030iLH56,66,YH51,53,56,66..5F198508-198708

INNER

9017008052

main90170-08052

9017908146

main90179-08146

9046814004

main90468-14004

9112151070

main91121-51070

9112170840

main91121-70840

9165140820

main91651-40820

9166140825

main91661-40825

9338116012

main93381-16012

9411041000

main94110-41000

9411050800

main94110-50800

9412040800

main94120-40800

9451200800

main94512-00800

9451201000

main94512-01000

9461310800

main94613-10800

43 parts on this diagram · 5 diagrams in section
