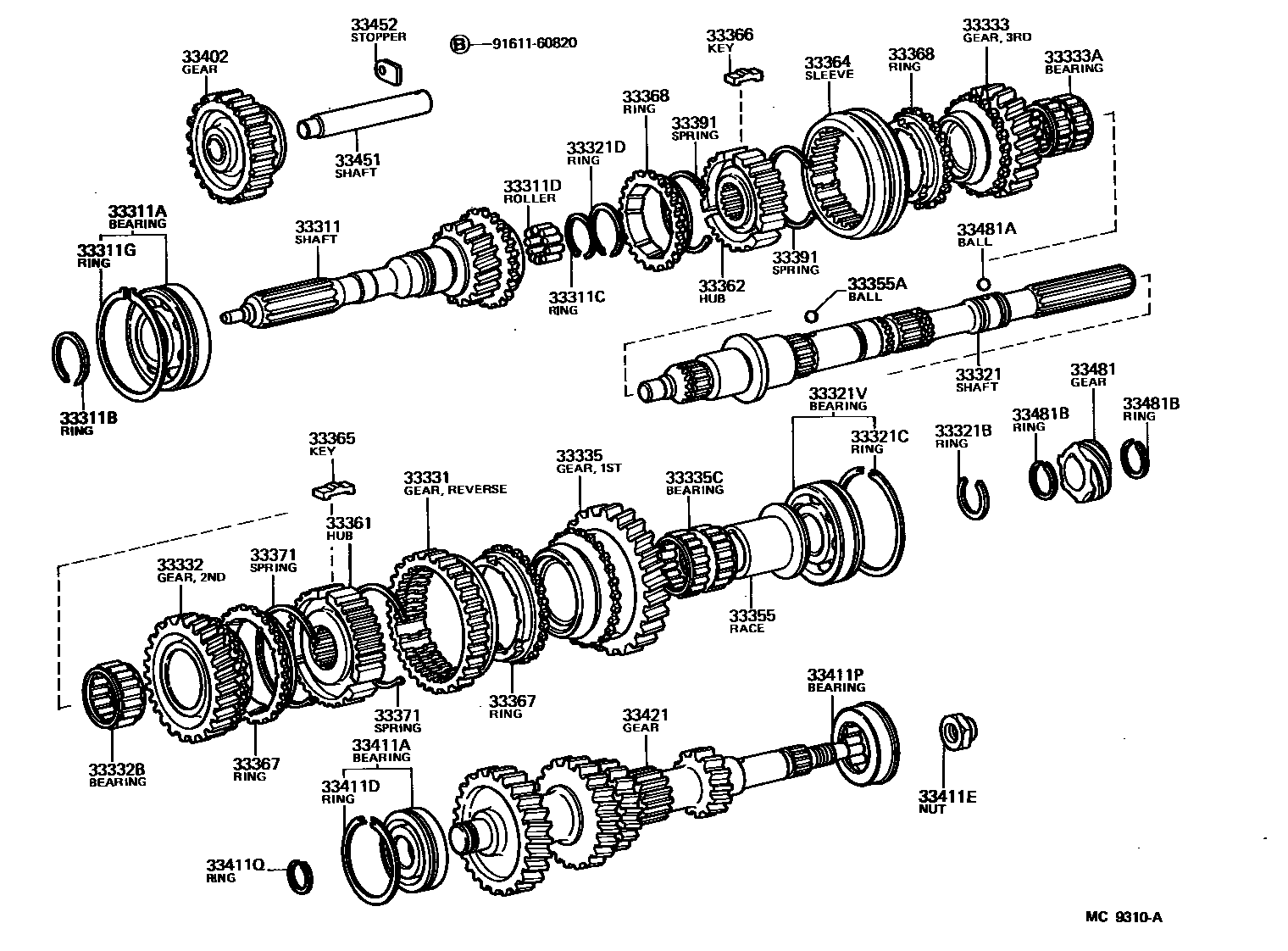

TRANSMISSION GEAR (MTM)
33311ABEARING (FOR INPUT SHAFT FRONT)
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
T=2.05,MARK 0,T=2.05-2.10
T=2.10,MARK 1,T=2.10-2.15
T=2.15,MARK 2,T=2.15-2.20
T=2.20,MARK 3,T=2.20-2.25
T=2.25,MARK 4,T=2.25-2.30
T=2.30,MARK 5,T=2.30-2.35
T=2.10,MARK A,T=2.10-2.15
T=2.15,MARK B,T=2.15-2.20
T=2.20,MARK C,T=2.20-2.25
T=2.25,MARK D,T=2.25-2.30
T=2.30,MARK E,T=2.30-2.35
T=2.35,MARK F,T=2.35-2.40
T=2.40,MARK G,T=2.40-2.45
33311CRING, HOLE SNAP (FOR NEEDLE ROLLER)
33311GRING, SHAFT SNAP (FOR FRONT BEARING)
33321BRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
T=2.67-2.72,MARK A,T=2.67-2.72
T=2.73-2.78,MARK B,T=2.73-2.78
T=2.79-2.84,MARK C,T=2.79-2.84
T=2.85-2.90,MARK D,T=2.85-2.90
T=2.91-2.96,MARK E,T=2.91-2.96
T=2.97-3.02,MARK F,T=2.97-3.02
T=3.03-3.08,MARK G,T=3.03-3.08
T=3.09-3.14,MARK H,T=3.09-3.14
T=3.15-3.20,MARK J,T=3.15-3.20
T=3.21-3.26,MARK K,T=3.21-3.26
T=3.27-3.32,MARK L,T=3.27-3.32
T=2.70,MARK B,T=2.70-2.74
T=2.75,MARK C,T=2.75-2.79
T=2.80,MARK D,T=2.80-2.84
T=2.85,MARK E,T=2.85-2.89
T=2.90,MARK F,T=2.90-2.94
T=2.95,MARK G,T=2.95-2.99
T=3.00,MARK H,T=3.00-3.04
T=3.05,MARK J,T=3.05-3.09
T=3.10,MARK K,T=3.10-3.14
T=3.15,MARK L,T=3.15-3.19
T=3.20,MARK M,T=3.20-3.24
T=3.25,MARK N,T=3.25-3.29
T=3.30,MARK P,T=3.30-3.34
T=3.35,MARK Q,T=3.35-3.39
T=3.40,MARK R,T=3.40-3.44
T=3.45,MARK S,T=3.45-3.49
33321CRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
T=1.65,ID=71.1
T=1.65,ID=81.4
33321DRING, SHAFT SNAP (FOR CLUTCH HUB SET)
T=1.85-1.90,MARK D-1,T=1.85-1.90
T=1.95-2.00,MARK E-1,T=1.95-2.00
T=1.75-1.80,MARK C-1,T=1.75-1.80
T=2.05-2.10,MARK F-1,T=2.05-2.10
T=1.80-1.85,MARK D,T=1.80-1.85
T=1.90-1.95,MARK E,T=1.90-1.95
T=2.00-2.05,MARK F,T=2.00-2.05
T=1.80,MARK A,T=|.80-1.85
T=1.85,MARK B,T=1.85-1.90
T=1.90,MARK C,T=1.90-1.95
T=1.95,MARK D,T=1.95-2.00
T=2.00,MARK E,T=2.00-2.05
T=2.05,MARK F,T=2.05-2.10
T=2.10,MARK G,T=2.10-2.15
33321VBEARING (FOR OUTPUT SHAFT CENTER)
33332GEAR, 2ND
SWITZERLAND SPEC
33333GEAR, 3RD
sub33034-26040
sub33034-28020
SWITZERLAND SPEC
sub33034-26041
sub33034-26041
sub33034-26051
sub33034-60110
33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
33355RACE, 1ST GEAR BEARING INNER
33355AKEY OR BALL, 1ST GEAR BEARING INNER RACE LOCK
33362HUB, TRANSMISSION CLUTCH, NO.2
33366KEY, SYNCHROMESH SHIFTING, NO.2
33367RING, SYNCHRONIZER, NO.1
33368RING, SYNCHRONIZER, NO.2
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33411DRING, COUNTER GEAR FRONT BEARING SNAP, NO.1
T=1.07,OD=55.6
T=1.07,OD=62
33411ENUT(FOR COUNTER GEAR SHAFT)
33411PBEARING, COUNTERSHAFT CENTER
33411QRING, COUNTER GEAR FRONT BEARING SNAP, NO.2
T=2.00,MARK A,T=2.00-2.05
T=2.05,MARK B,T=2.05-2.10
T=2.10,MARK C,T=2.10-2.15
T=2.15,MARK D,T=2.15-2.20
T=2.20,MARK E,T=2.20-2.25
T=2.10-2.15,T=2.10-2.15
T=2.20-2.25,T=2.20-2.25
T=2.05-2.10,T=2.05-2.10
T=2.15-2.20,T=2.15-2.20
T=2.25-2.30,T=2.25-2.30
T=2.30-2.35,T=2.35-2.40
T=2.65,MARK A,T=2.65-2.70
33421GEAR, COUNTER
sub33421-26H03
sub33421-60160
sub90520-20066
sub90520-20067
sub90520-20068
sub90520-20069
sub90520-20070
sub90520-20071
sub90520-20072
sub90520-20073
33452STOPPER, REVERSE IDLER GEAR SHAFT
33481GEAR, SPEEDOMETER DRIVE (MTM)
N=5,MARK 5X17-19,N=5
N=5,MARK 5X17-19,N=5,W/185R14 TIRE
N=5,MARK 5X17-19,*AXC=G162 OR W/185R14 TIRE,N=5
N=6,MARK 6X18-20,N=6
N=6,MARK 6X18-20
N=6,MARK 6X18-20,*AXC=G282,N=6
N=6,MARK 6X18-20,W/185R14 TIRE
N=6,MARK 6X21-23,N=6
N=6,MARK 6X21-23,N=6,W/185R14 TIRE
N=6,MARK 6X21-23,*AXC=G252,N=6
N=6,MARK 6X21-23
N=6,MARK 6X21-23,N=6,SAUDI ARABIA SPEC
N=6,MARK 6X21-23,N=6 SWITZERLAND SPEC
N=6,MARK 6X21-23,*AXC=G252,W/185R14 TIRE,N=6
33481AKEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM)
33481BRING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR)
T=1.50,OD=31.3
sub90520-26061
9161160820
main91611-60820
42 parts on this diagram · 5 diagrams in section
