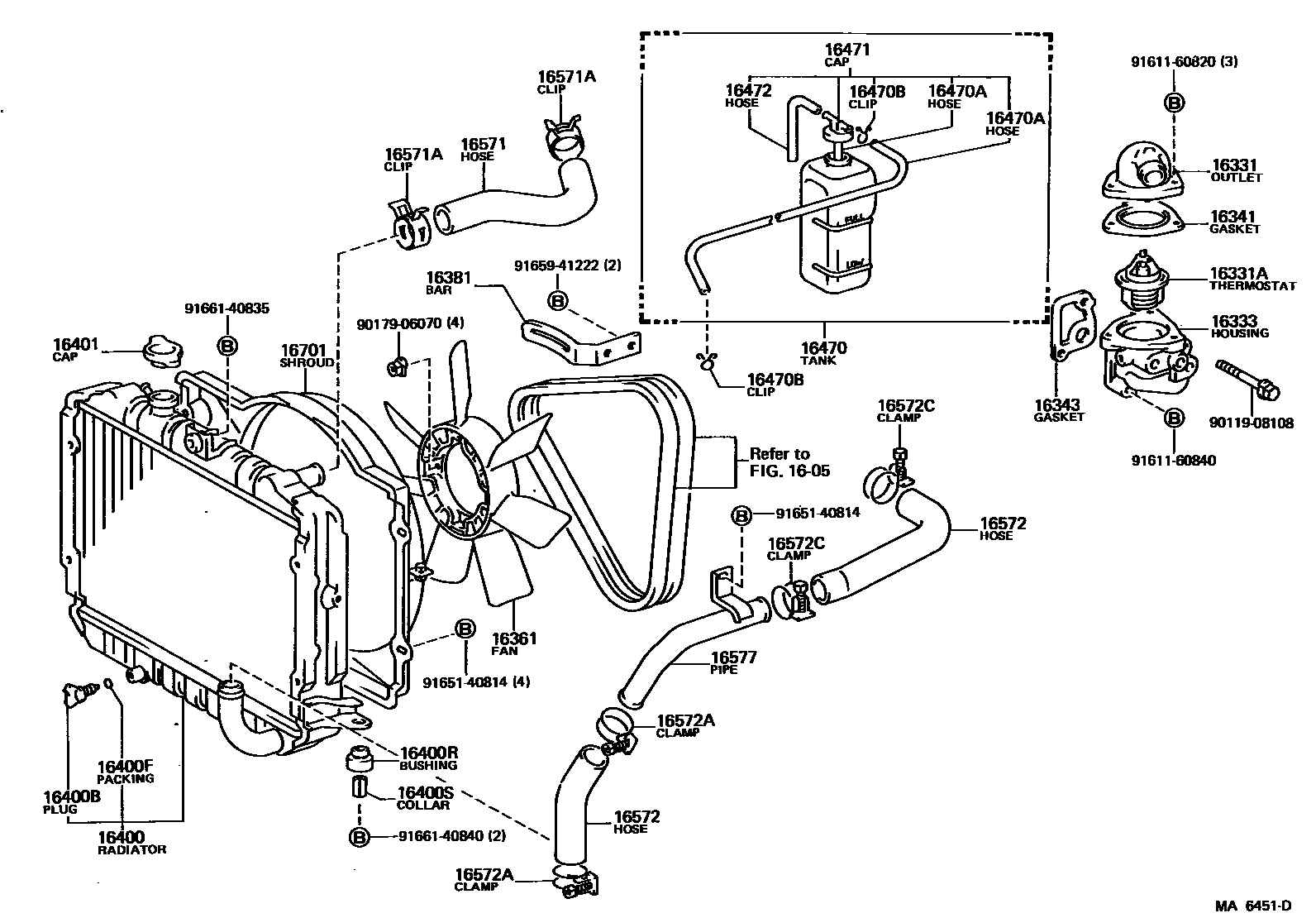

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1

1605

16331OUTLET, WATER

main16331-54030iL,2L..LH5#,6#,7#198212-198708

main16331-54040i2L..LH51,61,71..COM..(ARL,GEN)198212-198708

W/COOLER

main16331-71010i2Y#,3Y,4Y..YH5#,6#,71198212-198807

16331ATHERMOSTAT

main90916-03046i2Y#,3Y..YH5#,6#,71198212-198502

*WAX 82-95

main90916-03062iL,2L..LH5#,6#,7#198212-198708

*WAX 88-100

sub90916-03072

main90916-03069i2Y,3Y,4Y..YH5#,6#,71198502-198807

*WAX 82-95

sub90916-03046

16333HOUSING, WATER OUTLET

main16333-54050iL,2L..LH5#,6#,7#198212-198708

16341GASKET, WATER OUTLET

main16341-54010iL..LH50,60,70198212-198304

sub16341-54011

main16341-54011iL,2L..LH5#,6#,7#198304-198708

sub16341-54030

main16341-71010i2Y#,3Y,4Y..YH5#,6#,71198212-198807

sub16341-71011

16343GASKET, WATER OUTLET HOUSING

main16343-54011iL,2L..LH5#,6#,7#198212-198708

sub16343-54021

16361FAN

main16361-38010i3Y..YH51,61..EUR198408-198708

SINGAPORE SPEC

main16361-38010i2Y,4Y..YH53,56,60,63,66,73198212-198807

main16361-41050iL..LH50,60,70198212-198401

main16361-44032i2Y..YH50,60..GEN198212-198708

main16361-54010i2L..LH51,61,71198401-198508

sub16361-54020

main16361-54020i2L..LH5#,6#,71198508-198708

16381BAR, FAN BELT ADJUSTING

main16381-54011iL,2L..LH50,51,60,61,7#198212-198708

main16381-54040i2L..LH56,66198608-198708

main16381-71010i2Y#,3Y,4Y..YH5#,6#,71198212-198807

16400RADIATOR ASSY

main16400-54220i2L..LH51,61..4HC..N1198404-198708

sub16400-54370

main16400-54280i2L..LH51,61,71..5H198404-198708

main16400-54370i2L..LH51,61..4HC..ARL198404-198708

main16400-54550i2L..LH56,66198608-198708

main16400-72040i2Y,3Y..YH50,51,61..MTM..EUR198401-198708

main16400-72040i3Y..YH51,61..RHD..GEN198408-198708

SINGAPORE SPEC

main16400-72050i2Y,3Y,4Y..YH50,51,53,60,61,63,71..MTM..(ARL,GEN,SA)198401-198807

main16400-72050i3Y..YH61..V4D..VSG..03S..N1198405-198410

*SA

main16400-72060i3Y..YH51,61..ATM198401-198807

sub16400-73300

main16400-73270i4Y..YH56,66198612-198708

main16400-73300i4Y..YH53,63..ATM..ARL198608-198708

main16410-54210iL..LH50,60..5H..EUR198212-198401

sub16400-54210

main16410-54220i2L..LH51,61..4HC..N1198212-198404

sub16400-54220

main16410-54280iL..LH50,60,70..5H..(ARL,GEN)198212-198404

sub16400-54280

main16410-54370i2L..LH51,61..4HC..ARL198401-198404

sub16400-54370

main16410-72040i2Y..YH50,60..MTM..EUR198212-198401

sub16400-72040

main16410-72050i2Y#,3Y..YH5#,6#,71..MTM..(ARL,GEN,SA)198212-198401

sub16400-72050

main16410-72060i2Y#..YH50..4HC198212-198401

sub16400-72060

16400BPLUG, RADIATOR DRAIN COCK

main16417-24200iL,2L..LH5#,6#,7#198212-198807

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16418-24200iL,2L..LH5#,6#,7#198212-198807

16400RBUSHING(FOR RADIATOR)

main90540-10019iL,2L..LH5#,6#,7#198212-198807

16400SCOLLAR(FOR RADIATOR)

main90440-11042iL,2L..LH5#,6#,7#198212-198807

16401CAP SUB-ASSY, RADIATOR

main16401-71010iL,2L..LH5#,6#,7#198212-198807

sub16401-54750

16470TANK ASSY, RADIATOR RESERVE

main16470-54030i2Y#,3Y..YH5#,6#,71198212-198401

main16470-54040i2L..LH51,61,71198401-198807

main16470-54130i3Y..YH51..VSG..5H..EUR;3Y..YH51..(03S,12S)..EUR;2Y,3Y,4Y..YH50,56,61,66..EUR198508-198708

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90099-33534iL..LH50,60,70198212-198401

L=1450(*H,L=900)

main90099-33534i2L..LH5#,6#,71198401-198807

L=1800(*H,L=720)

main90445-12078iL..LH50,60,70198212-198401

L=1800(*H,L=230)

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085iL,2L..LH5#,6#,7#198212-198807

16471CAP SUB-ASSY, RESERVE TANK

main16405-54040iL..LH50,60,70198212-198401

main16405-54050i2L..LH5#,6#,71198401-198807

16472HOSE, BREATHER

main85338-30010iL..LH50,60,70198212-198401

main90445-12078i2L..LH51,61,71198401-198807

L=600(*H,L=120)

16571HOSE, RADIATOR, INLET

main16571-54120iL,2L..LH50,51,60,61,7#198212-198708

main16571-54160i2L..LH56,66198608-198708

main16571-72020i2Y,3Y,4Y..YH51,53,60,61,63,73198212-198807

main16571-73070i4Y..YH56,66198608-198708

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-37001iL,2L..LH5#,6#,7#198212-198807

sub90467-37003

16572HOSE, RADIATOR, OUTLET

main16572-54050i4Y..YH56,66198608-198708

RADIATOR SIDE

main16572-54090iL,2L..LH50,51,60,61,7#198212-198708

WATER PUMP SIDE

main16572-54140i2L..LH56,66198608-198708

WATER PUMP SIDE

main16572-72020i2Y,3Y,4Y..YH51,53,60,61,63,73198212-198807

WATER PUMP SIDE

main16572-73060i4Y..YH56,66198608-198708

WATER PUMP SIDE

main16573-54030iL,2L..LH5#,6#,7#198212-198807

RADIATOR SIDE

main16573-54050i2L..LH56,66198608-198708

RADIATOR SIDE

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90460-47036iL,2L..LH5#,6#,7#198212-198807

16572CCLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2)

main90460-47036iL,2L..LH5#,6#,7#198212-198708

PIPE SIDE

main96111-10440i2Y#,3Y,4Y..YH5#,6#,71198212-198807

main96111-10500iL,2L..LH5#,6#,7#198212-198708

WATER PUMP SIDE

16577PIPE, RADIATOR, NO.7

main16577-54060iL,2L..LH5#,6#,7#198212-198708

main16577-72010i2Y#,3Y,4Y..YH5#,6#,71198212-198807

16701SHROUD SUB-ASSY, FAN

main16701-54060iL..LH50,60,70198212-198401

main16701-54100i2L..LH51,61,71198401-198708

main16701-54140i2L..LH56,66198608-198708

main16701-72010i2Y,3Y,4Y..YH51,53,60,61,63,73198212-198807

main16701-73040i4Y..YH56,66198612-198708

9011908108

main90119-08108

9017906070

main90179-06070

9161160820

main91611-60820

9161160840

main91611-60840

9165140814

main91651-40814

9165941222

main91659-41222

9166140835

main91661-40835

9166140840

main91661-40840

34 parts on this diagram · 3 diagrams in section
