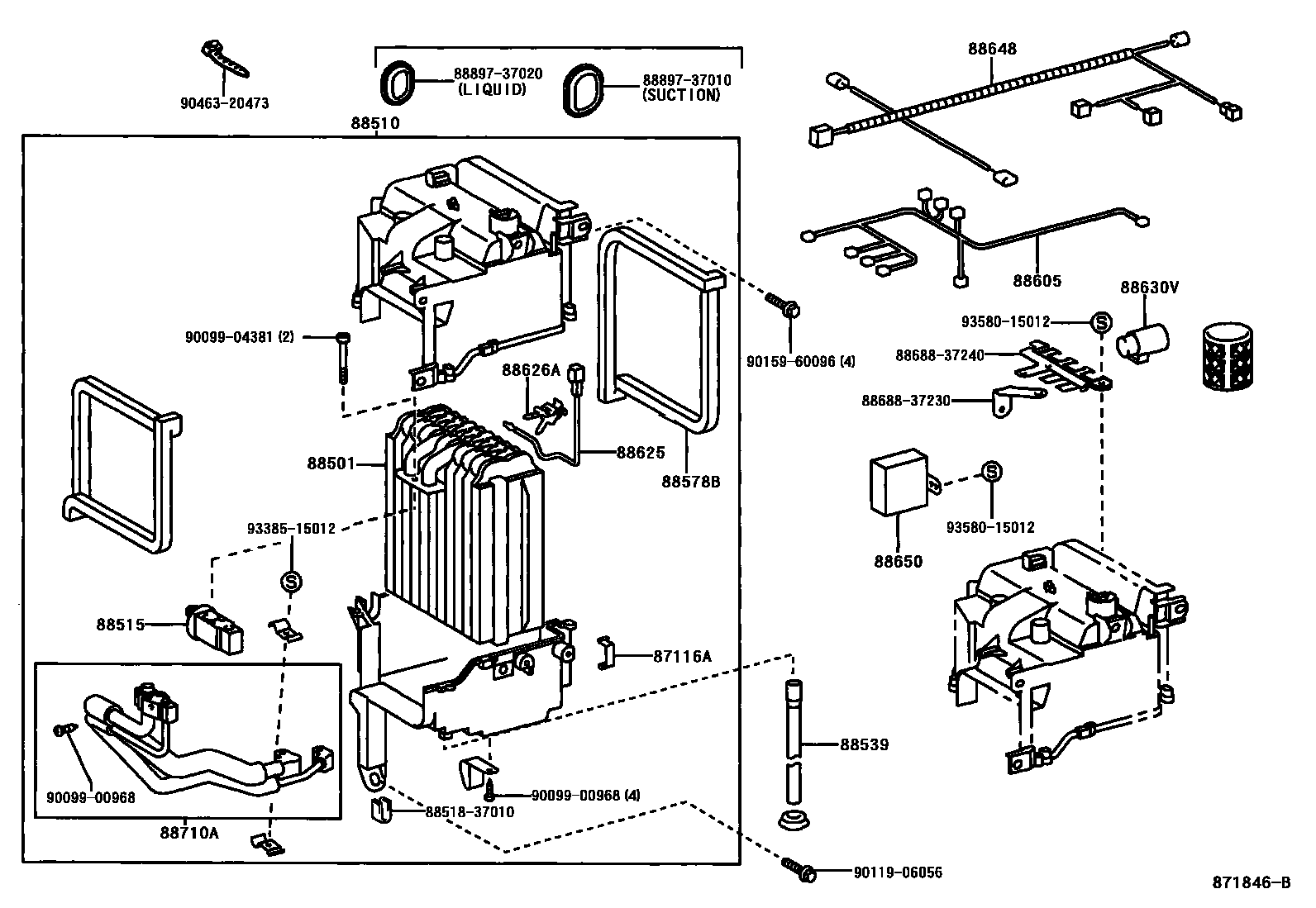

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1

87116ASPRING, HOLDING (FOR COOLER UNIT CASE)

main87116-14010iLY100,YY100..RHD..IV199510-199905

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-35020iYY100..IV199510-199905

sub88501-35021

main88501-35021iLY100..RHD..IV199905

main88501-37050iLY100..RHD..IV199708-199905

88510UNIT ASSY, COOLER

main88510-25060iLY100..RHD..IV199905

main88510-37050iYY100..IV199510-199708

sub88510-25060

main88510-37051iLY100,YY100..RHD..IV199708-199905

sub88510-25060

88515VALVE, COOLER EXPANSION

main88515-20100iYY100..IV199510-199905

sub88515-22240

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-37020iLY100..RHD..IV199905

88578BPACKING, COOLING UNIT, NO.1

main88578-20470iLY100..RHD..IV199510-199905

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-25040iYY100..IV199510-199905

main88605-37090iLY100..RHD..IV199708

88625THERMISTOR, COOLER, NO.1

main88625-3A020iYY100..IV199510-199905

sub88625-3A090

88626AHOLDER, THERMISTOR

main88626-28010iLY100..RHD..IV199510-199905

88630VRELAY ASSY

main88630-95702iYY100..IV199510-199905

88648WIRING, COOLER, NO.1

main88648-25110iYY100..IV199510-199905

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-37010iLY100..RHD..IV199708

main88650-37080iYY100..IV199510-199905

88710ATUBE ASSY, AIR CONDITIONER

main88710-25160iLY100..RHD..IV199905

main88710-37150iYY100..IV199510-199708

sub88710-37190

main88710-37190iLY100,YY100..RHD..IV199708-199905

8851837010HOLDER, COOLING UNIT DOOR

main88518-37010

8868837230BRACKET, COOLER DIAPHRAGM

main88688-37230

8868837240BRACKET, COOLER DIAPHRAGM

main88688-37240

8889737010VALVE, COOLER MAGNET

main88897-37010

8889737020VALVE, COOLER MAGNET

main88897-37020

9009900968

main90099-00968

9009904381

main90099-04381

9011906056

main90119-06056

9015960096

main90159-60096

9046320473

main90463-20473

9338515012

main93385-15012

9358015012

main93580-15012

25 parts on this diagram · 2 diagrams in section
