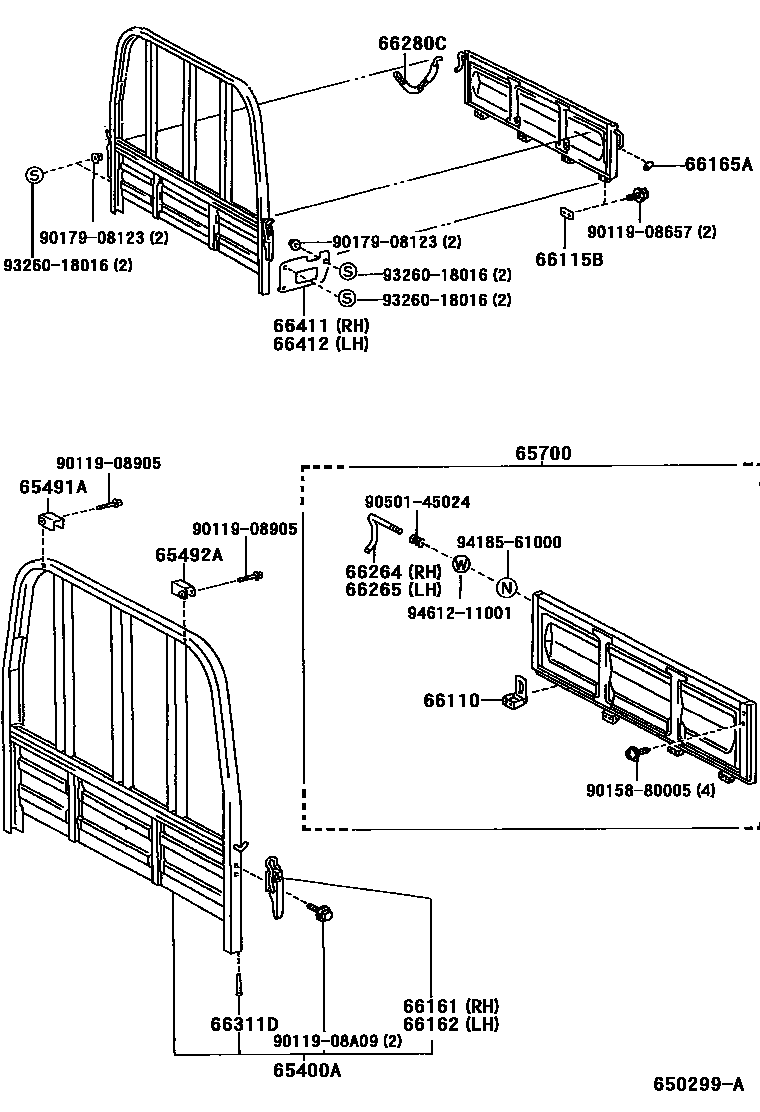

REAR BODY GUARD FRAME & TAIL GATE

0001 1 0002 1

65400AGUARD ASSY, REAR BODY

main65400-26070iLY100..TW2..CBU199505

main65400-26080iLY100,YY100..T3..CBU199505

65491ASTOP, GUARD FRAME LOAD SLIDE, RH

main65491-25010iLY100,YY100..T3..CBU199505

65492ASTOP, GUARD FRAME LOAD SLIDE, LH

main65492-25010iLY100,YY100..T3..CBU199505

65700GATE ASSY, REAR BODY TAIL

main65700-25010iLY100..TW2..CBU199505

main65700-26010iLY100,YY100..T3..CBU199505

66110HINGE ASSY, TAIL GATE

main66110-26010iLY100,YY100..T3..CBU199505

main66110-95014iLY100..TW2..CBU199505

66115BRETAINER, GATE HINGE

main66115-95013iLY100,YY100..T3..CBU199505

66161HANDLE, SIDE GATE LATCH, RH

main65480-92700iLY100,YY100..T3..CBU199505

66162HANDLE, SIDE GATE LATCH, LH

main65490-92701iLY100,YY100..T3..CBU199505

66165ACAP, GATE LATCH HANDLE

main66165-87402iLY100,YY100..T3..CBU199505

66264HANDLE, TAIL GATE LATCH, RH

main66264-26010iLY100,YY100..T3..CBU199505

66265HANDLE, TAIL GATE LATCH, LH

main66265-26010iLY100,YY100..T3..CBU199505

66280CCHAIN ASSY, TAIL GATE

main66280-25010iLY100,YY100..T3..CBU199505

main66280-37010iLY100..TW2..CBU199505

66311DHOOK, ROPE

main66312-95A01iLY100,YY100..T3..CBU199505

66411BRACKET, GUARD FRAME, RH

main66411-95022iLY100,YY100..T3..CBU199505

66412BRACKET, GUARD FRAME, LH

main66412-95022iLY100,YY100..T3..CBU199505

9011908657

main90119-08657

9011908905

main90119-08905

9011908A09

main90119-08A09

9015880005

main90158-80005

9017908123

main90179-08123

9050145024

main90501-45024

9326018016

main93260-18016

9418561000

main94185-61000

9461211001

main94612-11001

24 parts on this diagram · 2 diagrams in section
