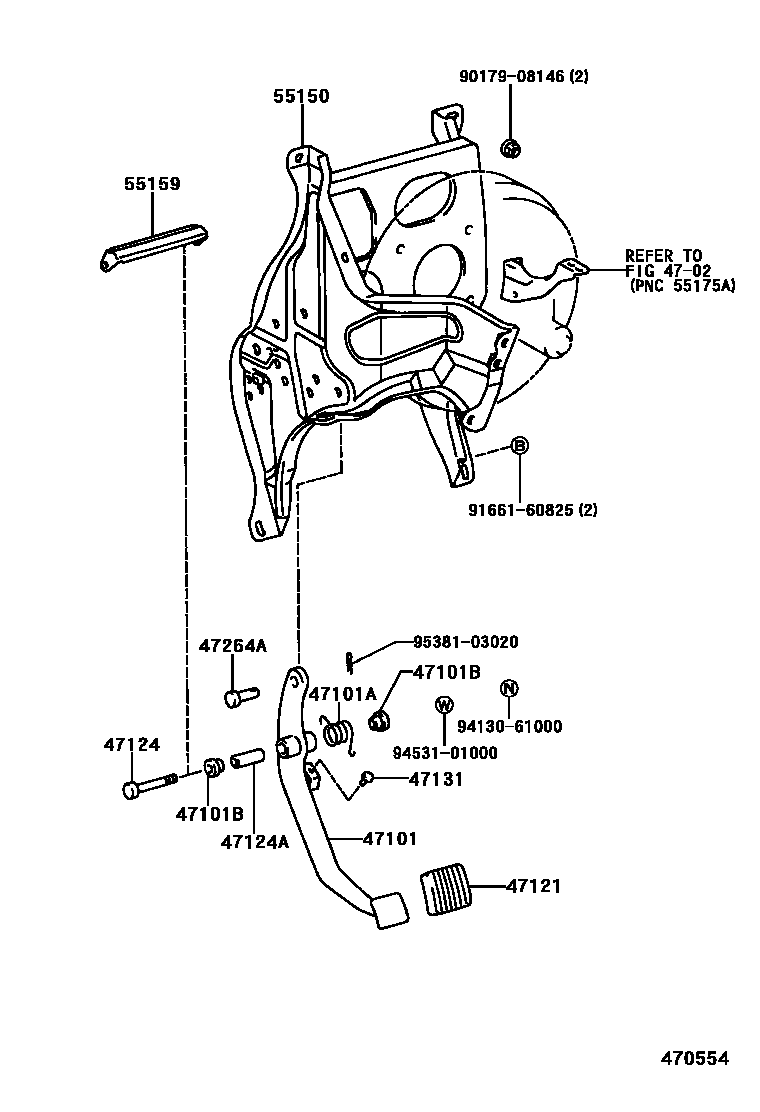

BRAKE PEDAL & BRACKET

4702

47101PEDAL SUB-ASSY, BRAKE

main47101-37040iLY100,YY100199505

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90508-35324iLY100,YY100199505

47101BBUSH(FOR BRAKE PEDAL)

main90386-13007iLY100,YY100199505

47121PAD, BRAKE PEDAL

main31321-14020iLY100,YY100199505

47124SHAFT, BRAKE PEDAL

main91121-51070iLY100,YY100199505

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10004iLY100,YY100199505

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iLY100,YY100199505

47264APIN(FOR PUSH ROD)

main90240-10015iLY100,YY100199505

55150BRACKET ASSY, PEDAL

main55150-37010iLY100,YY100199505-199610

main55150-37020iLY100,YY100199610

55159STAY, PEDAL BRACKET

main55159-37010iLY100,YY100199505

9017908146

main90179-08146

9166160825

main91661-60825

9413061000

main94130-61000

9453101000

main94531-01000

9538103020

main95381-03020

16 parts on this diagram · 1 diagram in section
