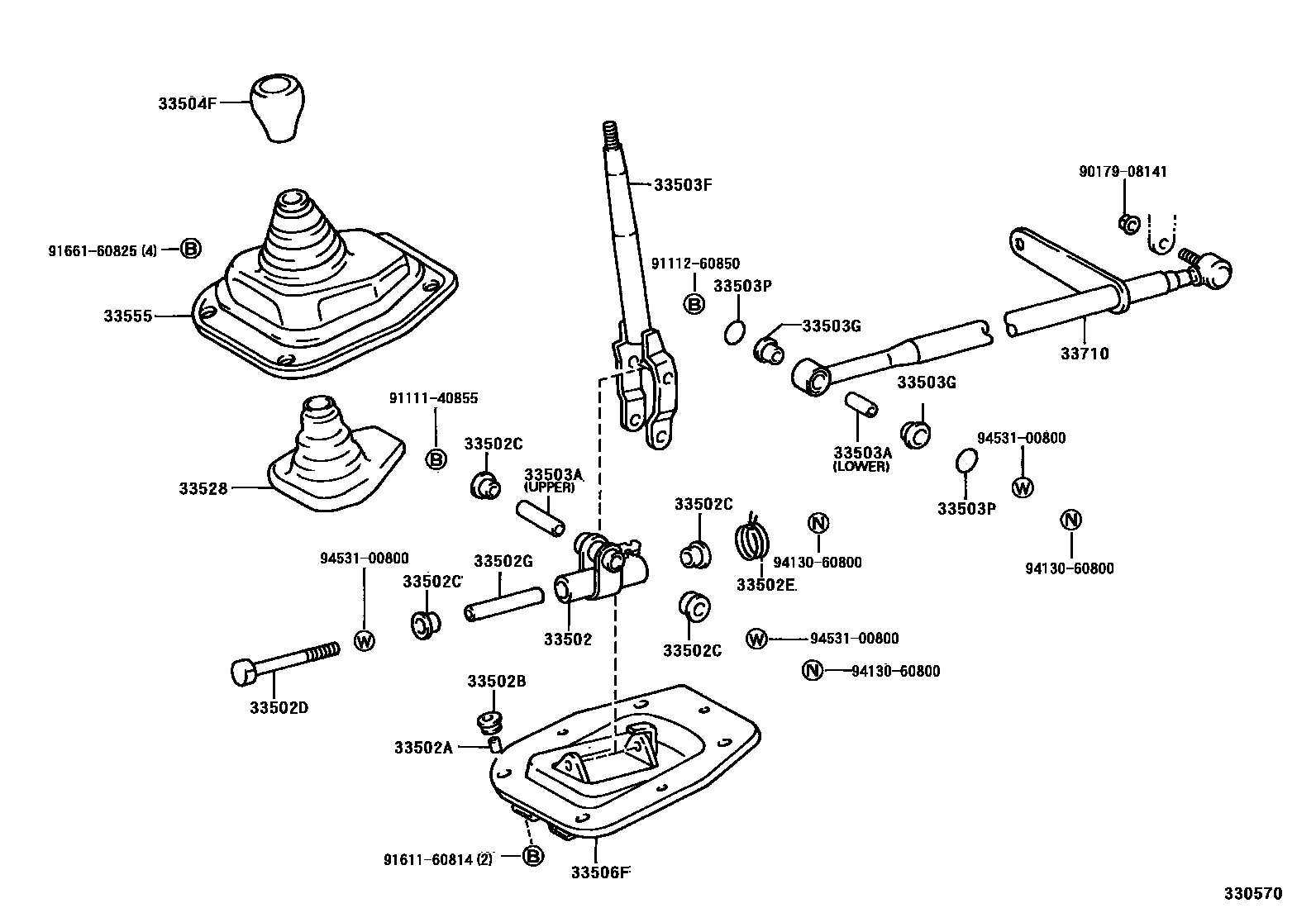

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1

33502PLATE SUB-ASSY, SHIFT LEVER

main33502-25010iLY100,YY100199505

33502ACOLLAR (FOR FLOOR SHIFT SETTING)

main90387-10081iLY100,YY100199505

OD=13.8

33502BGROMMET (FOR SHIFT LEVER PLATE)

main90480-17018iLY100,YY100199505

33502CBUSH (FOR FLOOR SHIFT SETTING)

main90386-13007iLY100,YY100199505

33502DBOLT, HEXAGON (FOR SHIFT LEVER PLATE)

main90101-08107iLY100,YY100199505

33502ESPRING, TORSION (FOR SHIFT LEVER PLATE)

main90508-23094iLY100,YY100199505

33502GCOLLAR (FOR SHIFT LEVER PLATE)

main90387-08064iLY100,YY100199505

33503ACOLLAR(FOR SHIFT LEVER)

main90387-08063iLY100,YY100199505

UPPER

main90387-08065iLY100,YY100199505

LOWER

33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

main33503-25010iLY100,YY100..LHD199505

main33503-25011iLY100,YY100..RHD199505

33503GBUSH(FOR SHIFT LEVER)

main90389-11002iLY100,YY100199505

33503PRING, O(FOR SHIFT LEVER)

main96711-24018iLY100,YY100199505

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-35030-B1iLY100,YY100199505

BLUISH GRAY,TRIM1#

sub33504-24010

sub33504-35030

sub33504-60121

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33506-25010iLY100,YY100..RHD199505

main33506-25020iLY100,YY100..LHD199505

33528COVER, CONTROL SHAFT

main33528-25010iLY100,YY100199505

33555BOOT, SHIFT LEVER

main33555-25011iLY100,YY100199505

33710ROD ASSY, GEAR SHIFTING, NO.1

main33710-25143iLY100,YY100..RHD199505

main33710-25151iLY100,YY100..LHD199505

9017908141

main90179-08141

9111140855

main91111-40855

9111260850

main91112-60850

9161160814

main91611-60814

9166160825

main91661-60825

9413060800

main94130-60800

9453100800

main94531-00800

23 parts on this diagram · 3 diagrams in section
