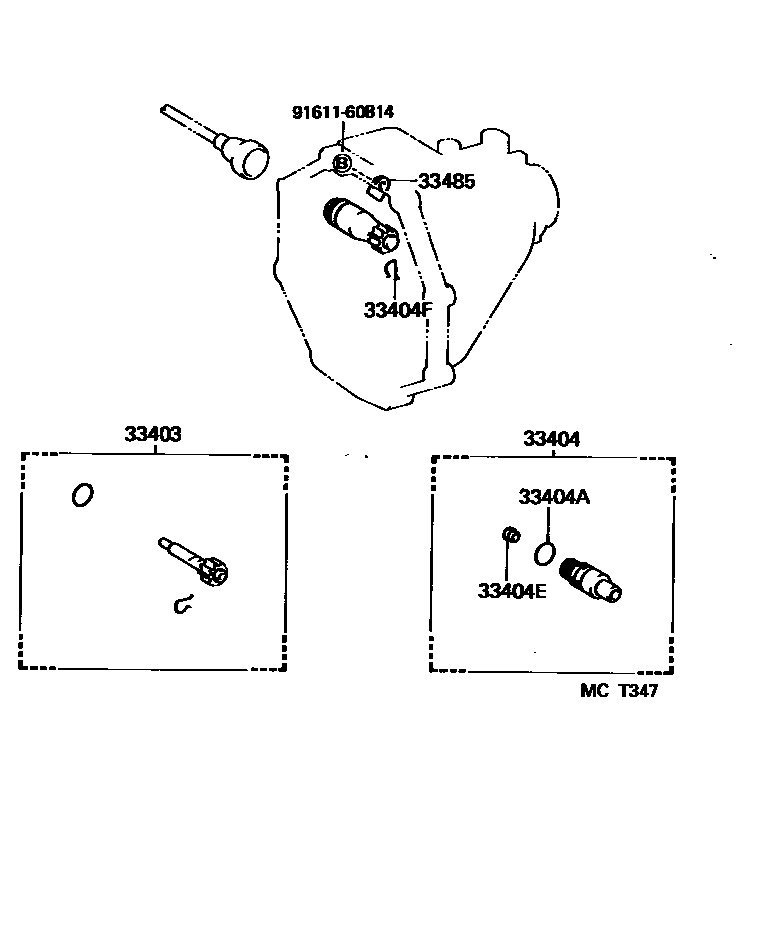

SPEEDOMETER DRIVEN GEAR (MTM)

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33482-29045iYY100..IV199505

N=19,MARK 19:5

main33482-39025iLY100..EUR199505

N=19,MARK 19:6

main33482-39035iLY100..GEN199505

N=21,MARK 21:6

main33482-39095iYY100..CBU199505-199905

N=16,MARK 16:4

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-35010iLY100,YY100199505-199905

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90301-18018iLY100,YY100199505-199905

33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iLY100,YY100199505-199905

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iLY100,YY100199505-199905

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-30020iLY100,YY100199505-199905

9161160814

main91611-60814

7 parts on this diagram · 1 diagram in section
