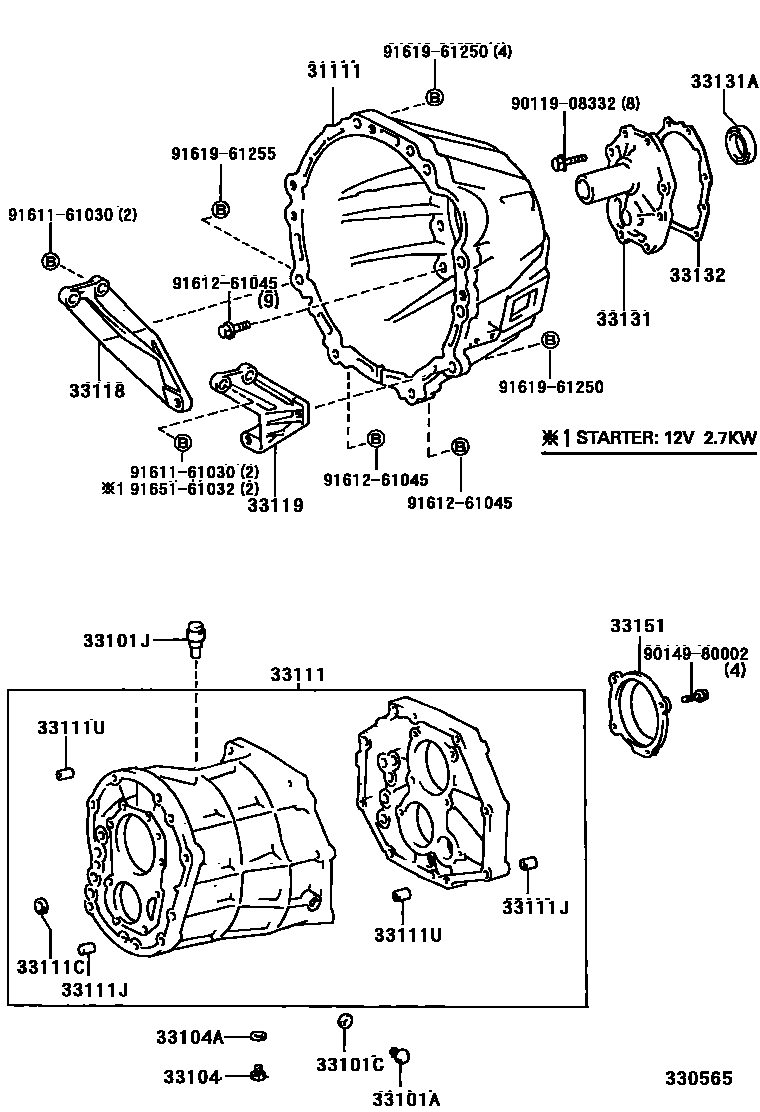

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1 0002 1

31111HOUSING, CLUTCH

main31111-22114iLY100199505

main31111-30190iYY100199505-199905

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006iLY100,YY100199505-199905

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iLY100,YY100199505-199905

33101JPLUG, BREATHER

main90930-03085iLY100,YY100199505-199905

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iLY100,YY100199505-199806

main90341-18032iLY100,YY100199806-199905

main90341-18057iLY100..RHD..IV199505

MALAYSIA SPEC

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iLY100,YY100199505-199905

33111CASE, MANUAL TRANSMISSION

main33101-28020iLY100,YY100199505-199806

sub33101-35060

sub90341-18032

main33101-35060iLY100,YY100199806-199905

sub33101-26060

33111CPLUG(FOR TRANSMISSION CASE)

main90331-14004iLY100,YY100199505-199905

OD=14

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-12002iLY100,YY100199505-199905

L=16,OD=12

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-11001iLY100,YY100199505-199905

L=11,OD=11

main90253-15001iLY100,YY100199505-199905

L=14,OD=15

33118PLATE, STIFFENER, RH(MTM)

main33118-25020iLY100199505

main33118-36031iYY100199505

33119PLATE, STIFFENER, LH(MTM)

main33119-25020iLY100199505

main33119-36030iYY100199505

33131RETAINER, BEARING, FRONT(MTM)

main33131-26020iLY100,YY100199505-199905

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30014iLY100,YY100199505-199905

33132GASKET, FRONT BEARING RETAINER(MTM)

main33132-28010iLY100,YY100199505-199905

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33151-35030iLY100,YY100199505-199905

9011908332

main90119-08332

9014980002

main90149-80002

9161161030

main91611-61030

9161261045

main91612-61045

9161961250

main91619-61250

9161961255

main91619-61255

9165161032

main91651-61032

23 parts on this diagram · 2 diagrams in section
