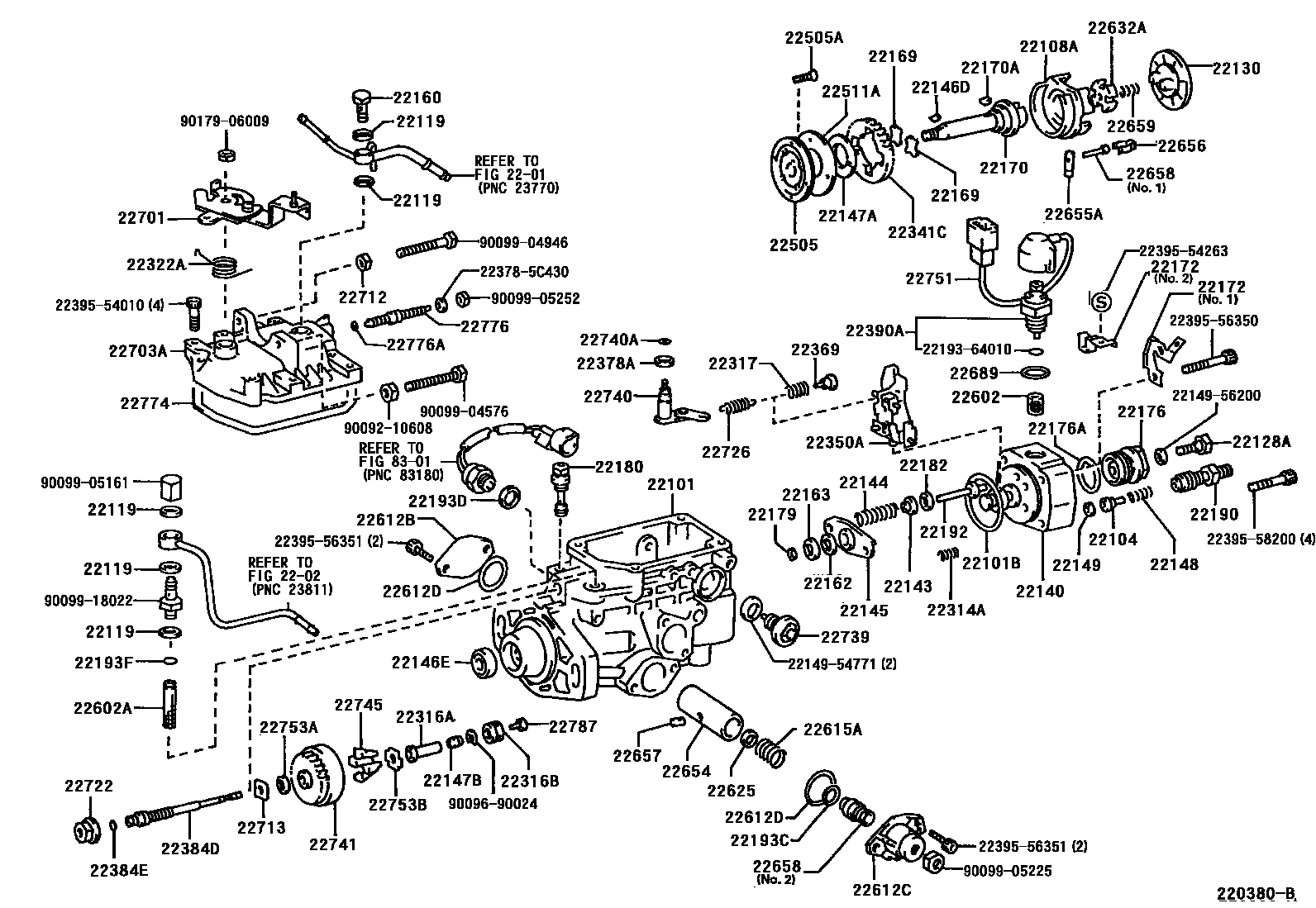

INJECTION PUMP BODY
2201
2202
22101HOUSING SUB-ASSY, INJECTION PUMP
SWITZERLAND SPEC
SWITZERLAND SPEC
22101BRING, O(FOR INJECTION PUMP HOUSING)
22104VALVE SUB-ASSY, INJECTION PUMP DELIVERY
22119WASHER, AIR BLEEDER NIPPLE
22128ABOLT, DISTRIBUTIVE HEAD
22130CAMPLATE SUB-ASSY, FACE
22140HEAD SUB-ASSY, DISTRIBUTIVE PUMP
22143SEAT, SPRING UPPER
22144SPRING, PUMP PLUNGER
22145SEAT, SPRING, LOWER
22146DKEY(FOR DRIVE GEAR)
22146ESEAL(FOR DRIVE SHAFT)
22147AWASHER, DRIVE SHAFT
22147BRING, GOVERNOR SLEEVE
22148SPRING, DELIVERY VALVE
22149GASKET, DELIVERY VALVE
22160SCREW SUB-ASSY, OVERFLOW
22162PLATE, PLUNGER UPPER
22163PLATE, PLUNGER LOWER
22169JOINT, RUBBER
22170SHAFT SUB-ASSY, DRIVE
22170AKEY(FOR DRIVE SHAFT)
22172CLIP, CONNECTOR SUPPORT, SOLENOID
NO.1
NO.2
NO.1
NO.3
NO.2
NO.1
NO.3
22176PLUG, DISTRIBUTIVE HEAD
22176ARING, O(FOR DISTRIBUTIVE HEAD PLUG)
22179SHIM, PLUNGER ADJUSTING
T=1.9
T=2.0
T=2.1
T=2.2
T=2.3
T=2.4
T=2.5
T=2.6
T=2.7
T=2.8
T=2.9
22180VALVE SUB-ASSY, REGULATOR
22182PLATE, TAPPET ADJUSTING SHIM
T=0.5
T=0.8
T=1.0
T=1.2
T=1.5
T=1.8
T=2.0
22190VALVE SUB-ASSY, SNUBBER
SWITZERLAND SPEC
SWITZERLAND SPEC
22192GUIDE SUB-ASSY, PLUNGER SPRING
22193RING, O(FOR LEVER CONNECTING PIN)
SWITZERLAND SPEC(W/HIGH ALTITUDE COMPENSATOR)
22193CRING, O(FOR TIMER COVER STOPPER)
SWITZERLAND SPEC
22193DRING, O(FOR REVOLUTION DETECTOR)
22193FRING, O(FOR FUEL INJECTION PUMP FILTER)
22314ASPRING, LEVER SUPPORT
22316ASLEEVE, GOVERNOR
ID=1.00,MARK 29
ID=0.80
MARK 26,MARK 26
ID=0.70
ID=0.95
ID=0.60
ID=0.65
ID=0.85
ID=1.15
ID=0.75,SWITZERLAND SPEC
MARK 190
22316BBEARING, BALL(FOR GOVERNOR SLEEVE)
22317SPRING, GOVERNOR DOMPER
K=0.15,L=7.3
K=0.15,L=6.2
22341CGEAR, GOVERNOR DRIVE
22350AGOVERNOR ASSY, TORQUE CONTROL
22369SEAT, GOVERNOR SPRING
22378AWASHER, GOVERNOR THRUST
22384ERING, O(FOR GOVERNOR MAIN SHAFT)
22390ASOLENOID ASSY, FUEL CUT
NO.2
SWITZERLAND SPEC
22505PUMP SUB-ASSY, FUEL FEED
22505ASCREW(FOR FUEL FEED PUMP)
22602FILTER SUB-ASSY, FUEL INJECTION PUMP
NO.2
22602AFILTER SUB-ASSY, FUEL INJECTION PUMP, NO.2
22612BCOVER, TIMER
22612CCOVER, TIMER
SWITZERLAND SPEC
22612DRING, O(FOR TIMER COVER)
22615ASPRING, TIMER OUTER
K=0.16,L=32.3,SWITZERLAND SPEC
K=0.18,L=32.0,SWITZERLAND SPEC
K=1.7,L=27.9,NO.2
K=0.15,L=32.5,SWITZERLAND SPEC
K=0.17,L=32.2,SWITZERLAND SPEC
K=3.00,L=37.3
K=2.50,L=38.2
K=2.70,L=37.0
K=2.70,L=39.2
K=2.85,L=37.4
K=0.115,L=37.8
K=0.095,L=39.2
K=0.105,L=38.4
K=0.10,L=37.2,SWITZERLAND SPEC,NO.1
K=0.11,L=35.5,SWITZERLAND SPEC,NO.1
K=0.12,L=35.0,SWITZERLAND SPEC,NO.1
K=0.13,L=35.1,NO.1
K=0.10,L=38.4,NO.1
K=0.11,L=37.6,NO.1
K=0.12,L=35.9,NO.1
K=0.14,L=35.0,NO.1
22625WASHER, TIMER SENSOR ADJUSTING
SWITZERLAND SPEC
22654PISTON, TIMER
22655APIN, TIMER SLIDE
22656CLIP, TIMER
SWITZERLAND SPEC
22657CLIP, TIMER
22658STOPPER, TIMER
NO.2
SWITZERLAND SPEC,NO.2
NO.1
NO.2
22659SPRING, COUPLING
22689WASHER(FOR SWIVEL NIPPLE)
NO.1
NO.2
22701LEVER SUB-ASSY, ADJUSTING
MARK 130
MARK 131
MARK 667
MARK 668
22703ACOVER SUB-ASSY, GOVERNOR
SWITZERLAND SPEC
SWITZERLAND SPEC
22712NUT, ROCK
22713WASHER, GOVERNOR GEAR ADJUSTING
T=1.05
T=1.25
T=1.45
T=1.65
T=1.85
22722NUT, GOVERNOR SHAFT ROCK
22726SPRING, SPEED CONTROL
SWITZERLAND SPEC
22739BOLT, GOVERNOR LINK SUPPORT
22740SHAFT SUB-ASSY, GOVERNOR ADJUSTING
22740ARING, O(FOR GOVERNOR ADJUSTING SHAFT)
22741HOLDER SUB-ASSY, FLYWEIGHT
22745FLYWEIGHT, DISTRIBUTIVE PUMP
22751WIRE SUB-ASSY, FUEL CUT SOLENOID
22753AWASHER, FLYWEIGHT, NO.1
22753BWASHER, FLYWEIGHT, NO.2
22774GASKET, GOVERNOR COVER
22776SCREW, SMOKE SET ADJUSTING
22776ARING, O(FOR SMOKE SET SCREW)
22787PLUG, GOVERNOR SLEEVE
L=3.4
L=3.6
L=3.8
L=4.0
L=4.1
L=3.0
L=3.2
L=4.2
8301
2214954771GASKET, DELIVERY VALVE
main22149-54771
2214956200GASKET, DELIVERY VALVE
main22149-56200
2219364010RING, O(FOR LEVER CONNECTING PIN)
main22193-64010
223785C430WASHER, DRAIN SCREW
main22378-5C430
2239554010BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-54010
2239554263BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-54263
2239556350BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-56350
2239556351BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-56351
2239558200BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-58200
9009210608
main90092-10608
9009690024
main90096-90024
9009904576
main90099-04576
9009904946
main90099-04946
9009905161
main90099-05161
9009905225
main90099-05225
9009905252
main90099-05252
9009918022
main90099-18022
9017906009
main90179-06009
104 parts on this diagram · 10 diagrams in section
