E
EPC Data

SEAT BELT

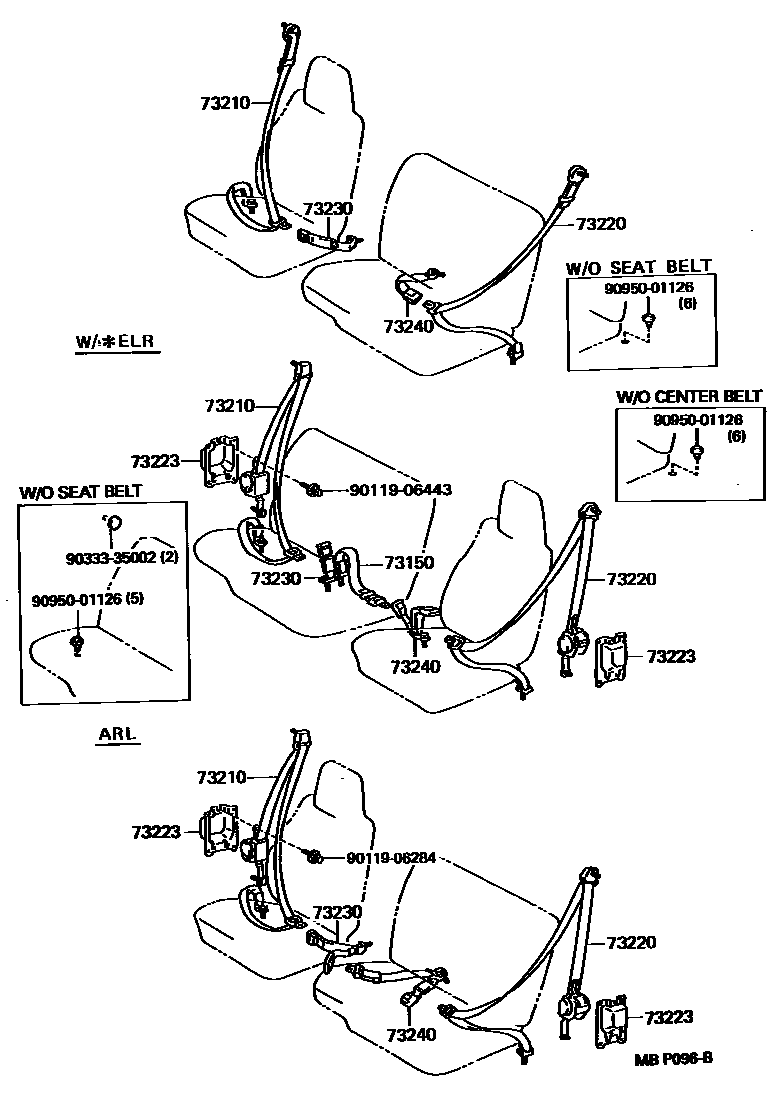

Parts diagram
73150BELT ASSY, FRONT SEAT LAP TYPE, CENTER
main73150-37010-B1i199210-199505
GRAY,TRIM1#
sub73150-37010
main73150-95A01-06i198708-199109
BROWN,TRIM4#
sub73150-37010
main73150-95A01-B1i199109-199210
GRAY,TRIM1#
sub73150-37010
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-37010-B0i199109-199505
GRAY,TRIM1#
sub73210-37010
sub73210-37011
main73210-37060-B1i199210-199505
GRAY,TRIM1#
sub73210-37061
main73210-37060-B1i199210-199505
IRELAND SPEC,GRAY,TRIM1#
sub73210-37061
main73210-95422-06i198708-198910
BROWN,TRIM4#
main73210-95423-06i198910-199109
DARK BROWN,TRIM4#
main73210-95A00-06i198708-199109
BROWN,TRIM4#
sub73210-95415
main73210-95A00-B1i199109-199505
GRAY,TRIM1#
sub73210-95415
main73210-95A05-06i198708-199109
IRELAND SPEC,BROWN,TRIM4#
sub73210-95A05
sub73210-37060
main73210-95A05-06i198708-199109
BROWN,TRIM4#
sub73210-95A05
sub73210-37060
main73210-95A05-B1i199109-199210
IRELAND SPEC,GRAY,TRIM1#
sub73210-95A05
sub73210-37060
main73210-95A05-B1i199109-199210
GRAY,TRIM1#
sub73210-95A05
sub73210-37060
73220BELT ASSY, FRONT SEAT OUTER, LH
main73210-37010-B0i199109-199505
GRAY,TRIM1#
sub73210-37010
sub73210-37011
main73210-37060-B1i199210-199505
GRAY,TRIM1#
sub73210-37061
main73210-37060-B1i199210-199505
IRELAND SPEC,GRAY,TRIM1#
sub73210-37061
main73210-95422-06i198708-198910
BROWN,TRIM4#
main73210-95423-06i198910-199109
DARK BROWN,TRIM4#
main73210-95A00-06i198708-199109
BROWN,TRIM4#
sub73210-95415
main73210-95A00-B1i199109-199505
GRAY,TRIM1#
sub73210-95415
main73210-95A05-06i198708-199109
BROWN,TRIM4#
sub73210-95A05
sub73210-37060
main73210-95A05-06i198708-199109
IRELAND SPEC,BROWN,TRIM4#
sub73210-95A05
sub73210-37060
main73210-95A05-B1i199109-199210
GRAY,TRIM1#
sub73210-95A05
sub73210-37060
main73210-95A05-B1i199109-199210
IRELAND SPEC,GRAY,TRIM1#
sub73210-95A05
sub73210-37060
73223COVER, SEAT BELT RETRACTOR
main73223-95400i198708-199505
IRELAND SPEC
sub73223-37010
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-95420-06i198708-199109
BROWN,TRIM4#
sub73230-95420
main73230-95420-06i199109-199505
BROWN
sub73230-95420
main73230-95420-B0i199109-199505
GRAY,TRIM1#
sub73230-95420
main73230-95422-06i198708-199109
BROWN,TRIM4#
sub73230-95422
main73230-95422-B1i199109-199505
GRAY,TRIM1#
sub73230-95422
main73230-95A00-06i198708-199109
BROWN,TRIM4#
sub73230-95A00
main73230-95A00-B1i199109-199505
GRAY,TRIM1#
sub73230-95A00
main73230-95A05-06i198708-199109
BROWN,TRIM4#
sub73230-95A05
main73230-95A05-B1i199109-199505
GRAY,TRIM1#
sub73230-95A05
main73230-95A06-06i198708-199109
IRELAND SPEC,BROWN,TRIM4#
sub73230-95A06
main73230-95A06-B0i199109-199505
IRELAND SPEC,GRAY,TRIM1#
sub73230-95A06
73240BELT ASSY, FRONT SEAT INNER, LH
main73240-37030-B0i199109-199505
GRAY,TRIM1#
main73240-95423-06i198708-198812
BROWN,TRIM4#
sub73240-95428
main73240-95425-06i198708-199109
BROWN,TRIM4#
sub73240-95425
main73240-95425-B1i199109-199505
GRAY,TRIM1#
sub73240-95425
main73240-95428-06i198812-199109
DARK BROWN,TRIM4#
main73240-95A06-06i198708-199109
W(*ELR),BROWN,TRIM4#
sub73240-95A06
main73240-95A06-B0i199109-199505
W(*ELR),GRAY,TRIM1#
sub73240-95A06
main73240-95A07-06i198708-199109
BROWN,TRIM4#
sub73240-95A07
main73240-95A07-B0i199109-199505
GRAY,TRIM1#
sub73240-95A07
main73240-95A08-06i198708-199109
IRELAND SPEC,BROWN,TRIM4#
sub73240-95A08
main73240-95A08-B1i199109-199505
IRELAND SPEC,GRAY,TRIM1#
sub73240-95A08
9011906284
main90119-06284
9011906443
main90119-06443
9033335002
main90333-35002
9095001126
main90950-01126

10 parts on this diagram · 2 diagrams in section
