EPC Data

SEAT & SEAT TRACK

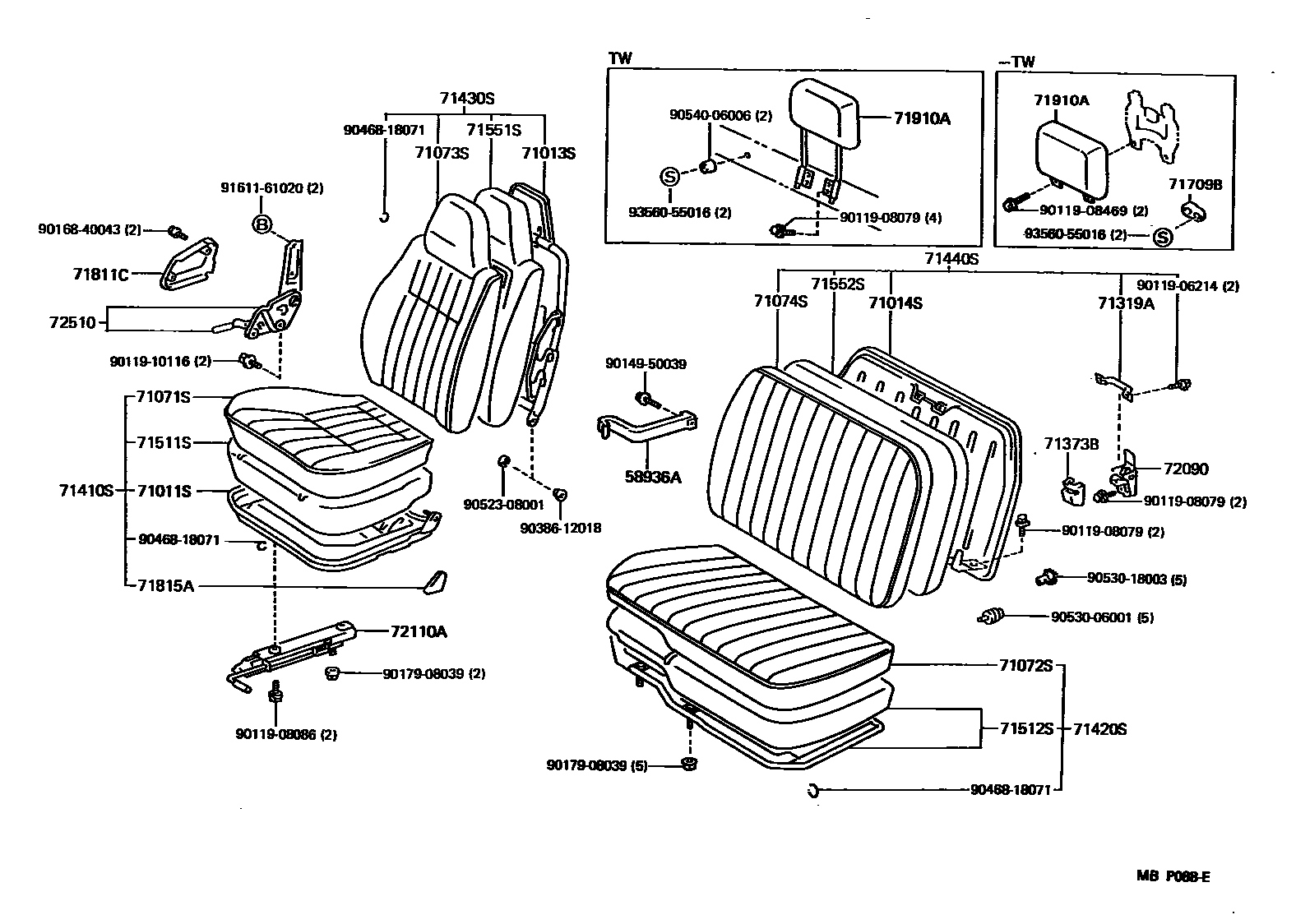

Parts diagram
58936ABAND, ENGINE SERVICE HOLE COVER SUPPORT
main58930-95700-06i198708-199109
DARK BROWN,TRIM4#
sub58930-95700
main58930-95700-B0i199109-199505
GRAY,TRIM1#
sub58930-95700
71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH
main71011-95414i198708-199505
71013SFRAME SUB-ASSY, FRONT SEATBACK, RH
main71013-95413i198708-199505
W(HEADREST)
main71013-95414i198708-199505
main71013-95416-01i199109-199505
BLACK,TRIM1#
main71013-95416-01i198708-199109
BLACK,TRIM4#
71014SFRAME SUB-ASSY, FRONT SEATBACK, LH
main71014-95420-01i198708-199109
BLACK,TRIM4#
main71014-95420-01i199109-199505
BLACK,TRIM1#
main71014-95422i198708-199505
W(HEADREST)
main71014-95422i199109-199505
DENMARK SPEC OR W(HEADREST)
main71014-95422i199109-199505
NORWAY SPEC OR W(HEADREST)
main71014-95422i198901-199109
NORWAY SPEC & W(HEADREST)
main71014-95423i198708-199505
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-37030-B2i199109-199203
GRAY,TRIM1#
main71071-37040-B1i199109-199505
CHINA SPEC & W(HEADREST),GRAY,TRIM1#
main71071-37050-B1i199109-199505
CHINA SPEC & W(FABRIC SEAT & HEADREST),GRAY,TRIM1#
main71071-37060-B1i199109-199505
W(HEADREST),GRAY,TRIM1#
main71071-37060-B1i199109-199505
GRAY,TRIM1#
main71071-37060-B1i199109-199505
DENMARK SPEC & W(HEADREST),GRAY,TRIM1#
main71071-37070-B2i199109-199505
NORWAY SPEC & W(FABRIC SEAT) OR W(FABRIC SEAT & HEADREST),GRAY,TRIM1#
main71071-37070-B2i199109-199505
DENMARK SPEC & W(FABRIC SEAT & HEADREST),GRAY,TRIM1#
main71071-37070-B2i199109-199505
W(FABRIC SEAT & HEADREST),GRAY,TRIM1#
main71071-37070-B2i199109-199505
DENMARK SPEC OR NORWAY SPEC & W(FABRIC SEAT & HEADREST),GRAY,TRIM1#
main71071-37080-B1i199109-199505
GRAY,TRIM1#
main71071-37100-B1i199109-199505
GRAY,TRIM1#
main71071-95463-06i198708-199109
BROWN,TRIM4#
sub71071-95463
main71071-95477-06i198708-198801
CHINA SPEC & W(HEADREST),BROWN,TRIM4#
main71071-95481-06i198708-198801
SWITZERLAND SPEC & W(HEADREST),BROWN,TRIM4#
sub71071-95476
main71071-95481-06i198708-198801
DENMARK SPEC & W(HEADREST),BROWN,TRIM4#
sub71071-95476
main71071-95481-06i198708-198801
NORWAY SPEC & W(HEADREST),BROWN,TRIM4#
sub71071-95476
main71071-95481-06i198708-198801
W(HEADREST),BROWN,TRIM4#
sub71071-95476
main71071-95481-06i198708-198801
BROWN,TRIM4#
sub71071-95476
main71071-95482-06i198708-198801
FABRIC(FRAME RESISTING) & W(HEADREST),BROWN,TRIM4#
main71071-95A05-06i198708-198712
FINLAND SPEC,BROWN,TRIM4#
main71071-95A06-06i198708-198801
FABRIC(FRAME RESISTING) & W(HEADREST),BROWN,TRIM4#
main71071-95A09-06i198801-199109
FABRIC(FRAME RESISTING) & W(HEADREST),BROWN,TRIM4#
main71071-95A09-06i198901-199109
NORWAY SPEC & FABRIC(FRAME RESISTING) & W(HEADREST);FABRIC(FRAME RESISTING) & W(HEADREST),BROWN,TRIM4#
main71071-95B01-06i198708-199109
DARK BROWN,TRIM4#
main71071-95B03-06i198708-199109
BROWN,TRIM4#
main71071-95B04-06i198801-199109
CHINA SPEC & W(HEADREST),BROWN,TRIM4#
main71071-95B05-06i198801-199109
FABRIC(FRAME RESISTING) & W(HEADREST),BROWN,TRIM4#
main71071-95B08-06i198801-199109
NORWAY SPEC & W(HEADREST),BROWN,TRIM4#
main71071-95B08-06i198801-199109
DENMARK SPEC & W(HEADREST),BROWN,TRIM4#
main71071-95B08-06i198801-198808
SWITZERLAND SPEC & W(HEADREST),BROWN,TRIM4#
main71071-95B08-06i198801-199109
W(HEADREST),BROWN,TRIM4#
main71071-95B08-06i198801-199109
BROWN,TRIM4#
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-26060-B0i199109-199505
IRELAND SPEC,GRAY,TRIM1#
main71072-26070-B0i199109-199505
W(HEADREST),GRAY,TRIM1#
main71072-26070-B0i199109-199505
GRAY,TRIM1#
main71072-26080-B0i199109-199505
DENMARK SPEC OR NORWAY SPEC OR W(FABRIC SEAT),GRAY,GRAY,TRIM1#
main71072-26080-B0i199109-199505
W(FABRIC SEAT & HEADREST),GRAY,TRIM1#
main71072-37030-B1i199109-199203
CHINA SPEC & W(HEADREST),GRAY,TRIM1#
main71072-37040-B1i199109-199203
CHINA SPEC & W(FABRIC SEAT & HEADREST),GRAY,TRIM1#
main71072-37060-B1i199109-199505
GRAY,TRIM1#
main71072-37080-B1i199109-199505
GRAY,TRIM1#
main71072-37090-B1i199109-199505
CHINA SPEC & W(HEADREST),GRAY,TRIM1#
main71072-37100-B3i199109-199505
CHINA SPEC & W(FABRIC SEAT & HEADREST),GRAY,TRIM1#
main71072-37120-B1i199109-199505
GRAY,TRIM1#
main71072-37120-B1i199109-199505
DENMARK SPEC & W(HEADREST),GRAY,TRIM1#
main71072-37130-B1i199109-199505
NORWAY SPEC & W(FABRIC SEAT) OR W(FABRIC SEAT & HEADREST),GRAY,TRIM1#
main71072-37130-B1i199109-199505
DENMARK SPEC & W(FABRIC SEAT & HEADREST),GRAY,TRIM1#
main71072-37130-B1i199109-199505
W(FABRIC SEAT & HEADREST),GRAY,TRIM1#
main71072-95472-06i198708-198712
FINLAND SPEC,BROWN,TRIM4#
sub71072-95472
main71072-95472-06i198708-199109
FABRIC(FRAME RESISTING) & W(HEADREST),BROWN,TRIM4#
sub71072-95472
main71072-95485-06i198708-198801
BROWN,TRIM4#
main71072-95A08-06i198708-198801
IRELAND SPEC,BROWN,TRIM4#
main71072-95A15-06i198801-199109
IRELAND SPEC,BROWN,TRIM4#
main71072-95B09-06i198708-199109
CHINA SPEC & W(HEADREST),BROWN,TRIM4#
main71072-95B12-06i198708-199109
BROWN,TRIM4#
main71072-95B12-06i198708-199109
W(HEADREST),BROWN,TRIM4#
main71072-95B12-06i198708-198808
SWITZERLAND SPEC & W(HEADREST),BROWN,TRIM4#
main71072-95B13-06i198708-198801
BROWN,TRIM4#
main71072-95B20-06i198708-199109
FABRIC(FRAME RESISTING) & W(HEADREST),BROWN,TRIM4#
main71072-95B23-06i198708-199109
CHINA SPEC & W(HEADREST),BROWN,TRIM4#
main71072-95B24-06i198708-199109
FABRIC(FRAME RESISTING) & W(HEADREST),BROWN,TRIM4#
main71072-95B26-06i198708-199109
NORWAY SPEC & W(HEADREST),BROWN,TRIM4#
main71072-95B26-06i198708-198808
W(HEADREST),BROWN,TRIM4#
main71072-95B26-06i198708-199109
DENMARK SPEC & W(HEADREST),BROWN,TRIM4#
main71072-95B26-06i198708-199109
BROWN,TRIM4#
main71072-95B27-06i198708-199109
FABRIC(FRAME RESISTING) & W(HEADREST),BROWN,TRIM4#
main71072-95B27-06i198901-199109
NORWAY SPEC & FABRIC(FRAME RESISTING) & W(HEADREST);FABRIC(FRAME RESISTING) & W(HEADREST),BROWN,TRIM4#
main71072-95B28-06i198801-199109
BROWN,TRIM4#
main71072-95B40-06i198801-199109
BROWN,TRIM4#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-26080-B3i199109-199309
GRAY,TRIM1#
main71073-26090-B1i199109-199203
GRAY,TRIM1#
main71073-37030-B1i199109-199110
W(HEADREST),GRAY,TRIM1#
sub71074-37030
main71073-37040-B2i199109-199505
CHINA SPEC & W(HEADREST),GRAY,TRIM1#
main71073-37050-B1i199109-199505
DENMARK SPEC OR NORWAY SPEC & W(FABRIC SEAT & HEADREST),GRAY,TRIM1#
main71073-37050-B1i199109-199505
CHINA SPEC & W(FABRIC SEAT & HEADREST),GRAY,TRIM1#
main71073-37050-B1i199109-199505
DENMARK SPEC & W(FABRIC SEAT & HEADREST),GRAY,TRIM1#
main71073-37050-B1i199109-199505
W(FABRIC SEAT & HEADREST),GRAY,TRIM1#
main71073-37050-B1i199109-199505
NORWAY SPEC & W(FABRIC SEAT) OR W(FABRIC SEAT & HEADREST),GRAY,TRIM1#
main71073-37060-B1i199109-199505
DENMARK SPEC & W(HEADREST),GRAY,TRIM1#
main71073-37060-B1i199109-199505
GRAY,TRIM1#
main71073-37060-B1i199109-199505
W(HEADREST),GRAY,TRIM1#
main71073-37070-B1i199109-199505
W(HEADREST),GRAY,TRIM1#
main71073-37100-B2i199109-199505
GRAY,TRIM1#
main71073-37110-B1i199309-199505
GRAY,TRIM1#
main71073-37110-B1i199109-199309
W(HEADREST),GRAY,TRIM1#
main71073-95041-06i198708-199109
FABRIC(FRAME RESISTING) & W(HEADREST),BROWN,TRIM4#
main71073-95041-06i198901-199109
NORWAY SPEC & FABRIC(FRAME RESISTING) & W(HEADREST);FABRIC(FRAME RESISTING) & W(HEADREST),BROWN,TRIM4#
main71073-95470-06i198708-199109
W(HEADREST),BROWN,TRIM4#
sub71073-95470
main71073-95483-06i198708-199109
W(HEADREST),BROWN,TRIM4#
sub71073-95482
sub71073-95481
main71073-95486-06i198708-199109
BROWN,TRIM4#
sub71073-95476
main71073-95A09-06i198708-199109
BROWN,TRIM4#
sub71073-95A09
main71073-95A10-06i198708-199109
BROWN,TRIM4#
sub71073-95A10
main71073-95A11-06i198708-199109
W(HEADREST),BROWN,TRIM4#
sub71073-95A11
main71073-95A14-06i198708-198712
FINLAND SPEC,BROWN,TRIM4#
main71073-95B03-06i198708-199109
CHINA SPEC & W(HEADREST),BROWN,TRIM4#
sub71073-95B04
main71073-95B05-06i198708-199109
FABRIC(FRAME RESISTING) & W(HEADREST),BROWN,TRIM4#
main71073-95B06-06i198708-199109
W(HEADREST),BROWN,TRIM4#
sub71073-95B04
main71073-95B06-06i198708-199109
BROWN,TRIM4#
sub71073-95B04
main71073-95B06-06i198708-199109
NORWAY SPEC & W(HEADREST),BROWN,TRIM4#
sub71073-95B04
main71073-95B06-06i198708-198808
SWITZERLAND SPEC & W(HEADREST),BROWN,TRIM4#
sub71073-95B04
main71073-95B06-06i198708-199109
DENMARK SPEC & W(HEADREST),BROWN,TRIM4#
sub71073-95B04
main71074-37030-B1i199110-199203
W(HEADREST),GRAY,TRIM1#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71073-37010-B1i199109-199203
W(HEADREST),GRAY,TRIM1#
main71073-37100-B2i199110-199505
GRAY,TRIM1#
main71073-95481-06i198708-199109
W(HEADREST),BROWN,TRIM4#
main71074-26070-B1i199109-199110
GRAY,TRIM1#
sub71073-37100
main71074-26120-B1i199109-199110
W(HEADREST),GRAY,TRIM1#
sub71074-37260
main71074-26130-B1i199109-199110
W(FABRIC SEAT & HEADREST),GRAY,TRIM1#
sub71074-37270
main71074-26130-B1i199109-199110
DENMARK SPEC & W(FABRIC SEAT & HEADREST),GRAY,TRIM1#
sub71074-37270
main71074-26130-B1i199109-199110
CHINA SPEC & W(FABRIC SEAT & HEADREST),GRAY,TRIM1#
sub71074-37270
main71074-26130-B1i199109-199110
NORWAY SPEC & W(FABRIC SEAT) OR W(FABRIC SEAT & HEADREST),GRAY,TRIM1#
sub71074-37270
main71074-26140-B1i199109-199110
GRAY,TRIM1#
sub71074-37280
main71074-26150-B1i199109-199110
NORWAY SPEC OR W(HEADREST),GRAY,TRIM1#
sub71074-37290
main71074-26150-B1i199109-199110
W(HEADREST),GRAY,TRIM1#
sub71074-37290
main71074-26170-B0i199109-199110
GRAY,TRIM1#
sub71074-37040
main71074-26180-B0i199109-199505
W(HEADREST),GRAY,TRIM1#
main71074-26190-B0i199109-199505
W(FABRIC SEAT & HEADREST),GRAY,TRIM1#
main71074-26190-B0i199109-199505
DENMARK SPEC OR W(HEADREST),GRAY,TRIM1#
main71074-37020-B1i199109-199203
GRAY,TRIM1#
main71074-37030-B1i199109-199203
CHINA SPEC & W(FABRIC SEAT & HEADREST),GRAY,TRIM1#
main71074-37040-B1i199110-199505
GRAY,TRIM1#
main71074-37060-B2i199109-199505
GRAY,TRIM1#
main71074-37080-B1i199109-199505
GRAY,TRIM1#
main71074-37260-B1i199110-199505
W(HEADREST),GRAY,TRIM1#
main71074-37270-B1i199110-199505
NORWAY SPEC & W(FABRIC SEAT) OR W(FABRIC SEAT & HEADREST),GRAY,TRIM1#
main71074-37270-B1i199110-199505
CHINA SPEC & W(FABRIC SEAT & HEADREST),GRAY,TRIM1#
main71074-37270-B1i199110-199505
DENMARK SPEC & W(FABRIC SEAT & HEADREST),GRAY,TRIM1#
main71074-37270-B1i199110-199505
W(FABRIC SEAT & HEADREST),GRAY,TRIM1#
main71074-37280-B1i199110-199505
GRAY,TRIM1#
main71074-37290-B1i199110-199505
NORWAY SPEC OR W(HEADREST),GRAY,TRIM1#
main71074-37290-B1i199110-199505
W(HEADREST),GRAY,TRIM1#
main71074-95034-06i198708-199109
W(HEADREST),BROWN,TRIM4#
sub71074-95A28
main71074-95035-06i198708-199109
BROWN,TRIM4#
sub71074-95A30
main71074-95036-06i198708-199109
BROWN,TRIM4#
main71074-95037-06i198708-199109
W(HEADREST),BROWN,TRIM4#
sub71074-95A28
main71074-95039-06i198708-199109
FABRIC(FRAME RESISTING) & W(HEADREST),BROWN,TRIM4#
main71074-95A13-06i198708-199109
FABRIC(FRAME RESISTING) & W(HEADREST),BROWN,TRIM4#
main71074-95A18-06i198708-199109
FABRIC(FRAME RESISTING) & W(HEADREST),BROWN,TRIM4#
sub71074-95A18
main71074-95A18-06i198901-199109
NORWAY SPEC & FABRIC(FRAME RESISTING) & W(HEADREST);FABRIC(FRAME RESISTING) & W(HEADREST),BROWN,TRIM4#
sub71074-95A18
main71074-95A26-06i198708-198712
FINLAND SPEC & W(HEATER),BROWN,TRIM4#
sub71074-95A28
main71074-95A27-06i198708-198712
FINLAND SPEC,BROWN,TRIM4#
sub71074-95A30
main71074-95A28-06i198708-199109
W(HEADREST),BROWN,TRIM4#
main71074-95A30-06i198708-199109
BROWN,TRIM4#
main71074-95B36-06i198708-199109
BROWN,TRIM4#
main71074-95B48-06i198708-199109
BROWN,TRIM4#
main71074-95B50-06i198708-199109
BROWN,TRIM4#
main71074-95B67-06i198708-199109
FABRIC(FRAME RESISTING) & W(HEADREST),BROWN,TRIM4#
71319ASTRIKER, FRONT SEATBACK
main71319-95404i198708-199505
71373BCOVER, FRONT SEATBACK LOCK
main71373-95400-06i198708-199109
BROWN,TRIM4#
sub71373-95400
main71373-95400-B0i199109-199505
GRAY,TRIM1#
sub71373-95400
71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71410-37050-B1i199109-199203
GRAY,TRIM1#
main71410-37060-B0i199109-199505
CHINA SPEC & W(HEADREST),GRAY,TRIM1#
main71410-37070-B0i199109-199505
CHINA SPEC & W(FABRIC SEAT & HEADREST),GRAY,TRIM1#
main71410-37080-B0i199109-199505
GRAY,TRIM1#
main71410-37080-B0i199109-199505
W(HEADREST),GRAY,TRIM1#
main71410-37080-B0i199109-199505
DENMARK SPEC & W(HEADREST),GRAY,TRIM1#
main71410-37090-B0i199109-199505
DENMARK SPEC & W(FABRIC SEAT & HEADREST),GRAY,TRIM1#
main71410-37090-B0i199109-199505
W(FABRIC SEAT & HEADREST),GRAY,TRIM1#
main71410-37090-B0i199109-199505
NORWAY SPEC & W(FABRIC SEAT) OR W(FABRIC SEAT & HEADREST),GRAY,TRIM1#
main71410-37090-B0i199109-199505
DENMARK SPEC OR NORWAY SPEC & W(FABRIC SEAT & HEADREST),GRAY,TRIM1#
main71410-37100-B0i199109-199505
GRAY,TRIM1#
main71410-37120-B0i199109-199505
GRAY,TRIM1#
main71410-95449-06i198708-199109
BROWN,TRIM4#
main71410-95456-06i198708-199109
BROWN,TRIM4#
sub71410-95457
main71410-95466-06i198708-198801
CHINA SPEC & W(HEADREST),BROWN,TRIM4#
main71410-95467-06i198801-199109
CHINA SPEC & W(HEADREST),BROWN,TRIM4#
main71410-95471-06i198801-199109
FABRIC(FRAME RESISTING) & W(HEADREST),BROWN,TRIM4#
main71410-95472-06i198708-198801
NORWAY SPEC & W(HEADREST),BROWN,TRIM4#
main71410-95472-06i198708-198801
BROWN,TRIM4#
main71410-95472-06i198708-198801
W(HEADREST),BROWN,TRIM4#
main71410-95472-06i198708-198801
DENMARK SPEC & W(HEADREST),BROWN,TRIM4#
main71410-95472-06i198708-198801
SWITZERLAND SPEC & W(HEADREST),BROWN,TRIM4#
main71410-95473-06i198708-198801
FABRIC(FRAME RESISTING) & W(HEADREST),BROWN,TRIM4#
main71410-95484-06i198801-198808
SWITZERLAND SPEC & W(HEADREST),BROWN,TRIM4#
sub71410-95482
main71410-95484-06i198801-199109
W(HEADREST),BROWN,TRIM4#
sub71410-95482
main71410-95484-06i198801-199109
NORWAY SPEC & W(HEADREST),BROWN,TRIM4#
sub71410-95482
main71410-95484-06i198801-199109
DENMARK SPEC & W(HEADREST),BROWN,TRIM4#
sub71410-95482
main71410-95484-06i198801-199109
BROWN,TRIM4#
sub71410-95482
main71410-95A53-06i198708-199109
BROWN,TRIM4#
main71410-95A57-06i198708-198712
FINLAND SPEC,BROWN,TRIM4#
main71410-95A58-06i198708-198801
FABRIC(FRAME RESISTING) & W(HEADREST),BROWN,TRIM4#
main71410-95A61-06i198801-199109
FABRIC(FRAME RESISTING) & W(HEADREST),BROWN,TRIM4#
sub71410-95483
main71410-95A61-06i198901-199109
FABRIC(FRAME RESISTING)& W(HEADREST);NORWAY SPEC & FABRIC(FRAME RESISTING) & W(HEADREST),BROWN,TRIM4#
sub71410-95483
71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
main71420-26060-B0i199109-199505
IRELAND SPEC,GRAY,TRIM1#
main71420-26070-B0i199109-199505
W(HEADREST),GRAY,TRIM1#
main71420-26070-B0i199109-199505
GRAY,TRIM1#
main71420-26080-B0i199109-199505
W(FABRIC SEAT & HEADREST),GRAY,TRIM1#
main71420-26080-B0i199109-199505
DENMARK SPEC OR NORWAY SPEC & W(FABRIC SEAT & HEADREST),GRAY,TRIM1#
main71420-37030-B1i199109-199203
CHINA SPEC & W(HEADREST),GRAY,TRIM1#
main71420-37040-B0i199109-199203
CHINA SPEC & W(FABRIC SEAT & HEADREST),GRAY,TRIM1#
main71420-37060-B0i199109-199505
GRAY,TRIM1#
main71420-37080-B0i199109-199505
GRAY,TRIM1#
main71420-37090-B0i199109-199505
CHINA SPEC & W(HEADREST),GRAY,TRIM1#
main71420-37100-B0i199109-199505
CHINA SPEC & W(FABRIC SEAT & HEADREST),GRAY,TRIM1#
main71420-37120-B0i199109-199505
GRAY,TRIM1#
main71420-37120-B0i199109-199505
DENMARK SPEC & W(HEADREST),GRAY,TRIM1#
main71420-37130-B0i199109-199505
W(FABRIC SEAT & HEADREST),GRAY,TRIM1#
main71420-37130-B0i199109-199505
DENMARK SPEC & W(FABRIC SEAT & HEADREST),GRAY,TRIM1#
main71420-37130-B0i199109-199505
NORWAY SPEC & W(FABRIC SEAT) OR W(FABRIC SEAT & HEADREST),GRAY,TRIM1#
main71420-95470-06i198708-198801
BROWN,TRIM4#
main71420-95485-06i198708-199109
CHINA SPEC & W(HEADREST),BROWN,TRIM4#
sub71420-95487
main71420-95486-06i198708-199109
CHINA SPEC & W(HEADREST),BROWN,TRIM4#
main71420-95489-06i198708-199109
FABRIC(FRAME RESISTING) & W(HEADREST),BROWN,TRIM4#
main71420-95489-06i198708-198712
FINLAND SPEC,BROWN,TRIM4#
main71420-95489-06i198708-199109
FABRIC(FRAME RESISTING) & W(HEAD REST),BROWN,TRIM4#
main71420-95A20-06i198708-198801
IRELAND SPEC,BROWN,TRIM4#
main71420-95A21-06i198708-199109
W(HEADREST),BROWN,TRIM4#
main71420-95A21-06i198708-199109
BROWN,TRIM4#
main71420-95A21-06i198708-198808
SWITZERLAND SPEC & W(HEADREST),BROWN,TRIM4#
main71420-95A30-06i198801-199109
IRELAND SPEC,BROWN,TRIM4#
main71420-95B01-06i198708-198808
W(HEADREST),BROWN,TRIM4#
main71420-95B01-06i198708-199109
NORWAY SPEC & W(HEADREST),BROWN,TRIM4#
main71420-95B01-06i198708-199109
DENMARK SPEC & W(HEADREST),BROWN,TRIM4#
main71420-95B01-06i198708-199109
BROWN,TRIM4#
main71420-95B02-06i198708-198801
BROWN,TRIM4#
main71420-95B10-06i198708-199109
FABRIC(FRAME RESISTING) & W(HEADREST),BROWN,TRIM4#
main71420-95B12-06i198708-199109
FABRIC(FRAME RESISTING) & W(HEADREST),BROWN,TRIM4#
main71420-95B13-06i198901-199109
FABRIC(FRAME RESISTING)& W(HEADREST);NORWAY SPEC & FABRIC(FRAME RESISTING) & W(HEADREST),BROWN,TRIM4#
main71420-95B13-06i198708-199109
FABRIC(FRAME RESISTING) & W(HEADREST),BROWN,TRIM4#
main71420-95B26-06i198801-199109
BROWN,TRIM4#
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71430-26030-B0i199109-199309
GRAY,TRIM1#
main71430-26040-B1i199109-199203
GRAY,TRIM1#
main71430-37030-B0i199109-199203
W(HEADREST),GRAY,TRIM1#
main71430-37040-B1i199109-199505
CHINA SPEC & W(HEADREST),GRAY,TRIM1#
main71430-37050-B0i199109-199505
CHINA SPEC & W(FABRIC SEAT & HEADREST),GRAY,TRIM1#
main71430-37050-B0i199109-199505
DENMARK SPEC & W(FABRIC SEAT & HEADREST),GRAY,TRIM1#
main71430-37050-B0i199109-199505
W(FABRIC SEAT & HEADREST),GRAY,TRIM1#
main71430-37050-B0i199109-199505
NORWAY SPEC & W(FABRIC SEAT) OR W(FABRIC SEAT & HEADREST),GRAY,TRIM1#
main71430-37050-B0i199109-199505
DENMARK SPEC OR NORWAY SPEC & W(FABRIC SEAT & HEADREST),GRAY,TRIM1#
main71430-37060-B0i199109-199505
DENMARK SPEC & W(HEADREST),GRAY,TRIM1#
main71430-37060-B0i199109-199505
GRAY,TRIM1#
main71430-37060-B0i199109-199505
W(HEADREST),GRAY,TRIM1#
main71430-37070-B0i199109-199505
W(HEADREST),GRAY,TRIM1#
main71430-37100-B0i199109-199505
GRAY,TRIM1#
main71430-37110-B0i199109-199309
W(HEADREST),GRAY,TRIM1#
main71430-37110-B0i199309-199505
GRAY,TRIM1#
main71430-95038-06i198708-199109
BROWN,TRIM4#
main71430-95039-06i198708-199109
BROWN,TRIM4#
main71430-95040-06i198708-199109
FABRIC(FRAME RESISTING) & W(HEADREST),BROWN,TRIM4#
main71430-95040-06i198901-199109
FABRIC(FRAME RESISTING)& W(HEADREST);NORWAY SPEC & FABRIC(FRAME RESISTING) & W(HEADREST),BROWN,TRIM4#
main71430-95466-06i198708-199109
W(HEADREST),BROWN,TRIM4#
main71430-95467-06i198708-199109
W(HEADREST),BROWN,TRIM4#
main71430-95471-06i198708-199109
W(HEADREST),BROWN,TRIM4#
main71430-95472-06i198708-199109
BROWN,TRIM4#
main71430-95474-06i198708-199109
CHINA SPEC & W(HEADREST),BROWN,TRIM4#
main71430-95476-06i198708-199109
FABRIC(FRAME RESISTING) & W(HEADREST),BROWN,TRIM4#
main71430-95482-06i198708-199109
W(HEADREST),BROWN,TRIM4#
main71430-95482-06i198708-198808
SWITZERLAND SPEC & W(HEADREST),BROWN,TRIM4#
main71430-95482-06i198708-199109
DENMARK SPEC & W(HEADREST),BROWN,TRIM4#
main71430-95482-06i198708-199109
NORWAY SPEC & W(HEADREST),BROWN,TRIM4#
main71430-95482-06i198708-199109
BROWN,TRIM4#
main71430-95A14-06i198708-198712
FINLAND SPEC,BROWN,TRIM4#
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
main71440-26040-B0i199109-199505
GRAY,TRIM1#
main71440-26050-B0i199109-199505
W(HEADREST),GRAY,TRIM1#
main71440-26060-B0i199109-199505
CHINA SPEC & W(FABRIC SEAT & HEADREST),GRAY,TRIM1#
main71440-26060-B0i199109-199505
W(FABRIC SEAT & HEADREST),GRAY,TRIM1#
main71440-26060-B0i199109-199505
DENMARK SPEC & W(FABRIC SEAT & HEADREST),GRAY,TRIM1#
main71440-26060-B0i199109-199505
NORWAY SPEC & W(FABRIC SEAT) OR W(FABRIC SEAT & HEADREST),GRAY,TRIM1#
main71440-26070-B0i199109-199505
GRAY,TRIM1#
main71440-26080-B0i199109-199505
NORWAY SPEC OR W(HEADREST),GRAY,TRIM1#
main71440-26080-B0i199109-199505
W(HEADREST),GRAY,TRIM1#
main71440-26100-B0i199109-199505
GRAY,TRIM1#
main71440-26110-B0i199109-199505
W(HEADREST),GRAY,TRIM1#
main71440-26120-B0i199109-199505
DENMARK SPEC OR W(HEADREST),GRAY,TRIM1#
main71440-26120-B0i199109-199505
W(FABRIC SEAT & HEADREST),GRAY,TRIM1#
main71440-26130-B0i199109-199203
GRAY,TRIM1#
main71440-26140-B0i199109-199203
W(HEADREST),GRAY,TRIM1#
main71440-26150-B0i199109-199203
CHINA SPEC & W(FABRIC SEAT & HEADREST),GRAY,TRIM1#
main71440-37090-B0i199109-199505
GRAY,TRIM1#
main71440-37210-B0i199109-199505
GRAY,TRIM1#
main71440-95023-06i198708-199109
BROWN,TRIM4#
main71440-95024-06i198708-199109
BROWN,TRIM4#
main71440-95025-06i198708-199109
W(HEADREST),BROWN,TRIM4#
main71440-95026-06i198708-199109
FABRIC(FRAME RESISTING) & W(HEADREST),BROWN,TRIM4#
main71440-95026-06i198901-199109
FABRIC(FRAME RESISTING)& W(HEADREST);NORWAY SPEC & FABRIC(FRAME RESISTING) & W(HEADREST),BROWN,TRIM4#
main71440-95027-06i198708-199109
FABRIC(FRAME RESISTING) & W(HEADREST),BROWN,TRIM4#
main71440-95028-06i198708-199109
W(HEADREST),BROWN,TRIM4#
main71440-95A36-06i198708-198712
FINLAND SPEC,BROWN,TRIM4#
main71440-95A37-06i198708-199109
***,BROWN, BROWN,TRIM4#
main71440-95A38-06i198708-198712
FINLAND SPEC & W(HEADREST),BROWN,TRIM4#
main71440-95A39-06i198708-199109
W(HEADREST),BROWN,TRIM4#
main71440-95A40-06i198708-199109
FABRIC(FRAME RESISTING) & W(HEADREST),BROWN,TRIM4#
main71440-95B14-06i198708-199109
BROWN,TRIM4#
sub71440-95B16
main71440-95B15-06i198708-199109
BROWN,TRIM4#
main71440-95B28-06i198708-199109
W(HEADREST),BROWN,TRIM4#
main71440-95B30-06i198708-199109
FABRIC(FRAME RESISTING) & W(HEADREST),BROWN,TRIM4#
main71440-95B31-06i198708-199109
BROWN,TRIM4#
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71501-95400i198708-199505
main71511-95400i198708-199505
main71511-95402i198708-199505
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71502-95400i198708-199109
main71502-95A05i198708-199505
main71511-95400i198708-199505
main71511-95402i198708-199505
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71551-95404i198708-199505
W(HEADREST)
main71551-95405i198708-199505
main71552-95403i198708-199505
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71551-95404i198708-199505
W(HEADREST)
main71551-95404i198901-199109
NORWAY SPEC & W(HEADREST)
main71551-95404i199109-199505
DENMARK SPEC OR W(HEADREST)
main71551-95404i199109-199505
NORWAY SPEC OR W(HEADREST)
main71551-95405i198708-199505
main71552-95403i198708-199505
71709BCUSHION SUB-ASSY, SEAT SUPPORT
main71709-95400i198901-199109
NORWAY SPEC & W(HEADREST)
main71709-95400i199109-199310
NORWAY SPEC OR W(HEADREST)
main71709-95400i198708-198901
71811CCOVER, RECLINING ADJUSTER, RH
main71811-95J01-06i198708-199109
BROWN,TRIM4#
sub71811-95J01
main71811-95J01-B0i199109-199505
GRAY,TRIM1#
sub71811-95J01
71815ACOVER, FRONT SEAT CUSHION HINGE, RH
main71815-95J00-16i198708-199109
BROWN,TRIM4#
sub71815-95J00
main71815-95J00-B0i199109-199505
GRAY,TRIM1#
sub71815-95J00
71910AHEADREST ASSY, FRONT SEAT
main71910-26010-B0i199109-199210
NORWAY SPEC,GRAY,TRIM1#,CENTER
main71910-26011-B1i199210-199505
NORWAY SPEC,GRAY,TRIM1#,CENTER
main71910-26020-B1i199210-199505
GRAY,TRIM1#
main71910-26020-B1i199210-199505
W(HEADREST),GRAY,TRIM1#
main71910-37010-B0i199109-199205
NORWAY SPEC,GRAY,TRIM1#,RH
sub71910-37010
main71910-37010-B0i199109-199205
W(HEADREST),GRAY,TRIM1#
sub71910-37010
main71910-37010-B0i199109-199205
GRAY,TRIM1#
sub71910-37010
main71910-37010-B1i199205-199505
W(HEADREST),GRAY,TRIM1#
sub71910-37010
main71910-37010-B1i199205-199210
NORWAY SPEC,GRAY,TRIM1#,RH
sub71910-37010
main71910-37010-B1i199205-199505
GRAY,TRIM1#
sub71910-37010
main71910-37060-B2i199210-199505
IRELAND SPEC & W(HEADREST),GRAY,TRIM1#
main71910-37060-B2i199210-199505
GRAY,TRIM1#
main71910-37060-B2i199210-199505
NORWAY SPEC,GRAY,TRIM1#,RH
main71910-37060-B2i199210-199505
W(HEADREST),GRAY,TRIM1#
main71910-92603-06i198708-199109
BROWN,TRIM4#
main71910-92603-06i198708-199109
W(HEADREST),BROWN,TRIM4#
main71910-92603-B0i199109-199210
W(HEADREST),GRAY,TRIM1#
main71910-92603-B0i199109-199210
GRAY,TRIM1#
main71910-95400-06i198708-198801
W(HEADREST),BROWN,TRIM4#
sub71910-37010
main71910-95400-06i198708-198801
BROWN,TRIM4#
sub71910-37010
main71910-95401-06i198801-199109
BROWN,TRIM4#
sub71910-37010
main71910-95401-06i198901-199109
NORWAY SPEC & W(HEADREST),BROWN,TRIM4#,RH
sub71910-37010
main71910-95401-06i198901-199109
W(HEADREST),BROWN,TRIM4#
sub71910-37010
main71910-95401-06i198708-198801
FABRIC(FLAME RESISTING) & W(HEADREST),BROWN,TRIM4#
sub71910-37010
main71910-95A12-06i198901-199109
NORWAY SPEC & W(HEADREST),BROWN,TRIM4#,CENTER
72090LOCK ASSY, FRONT SEATBACK
main72090-95400-06i198708-199109
BROWN,TRIM4#
sub72090-95400
main72090-95400-B0i199109-199505
GRAY,TRIM1#
sub72090-95400
72110ATRACK ASSY, FRONT SEAT, OUTER RH
main72110-95408i198708-199505
72510ADJUSTER ASSY, RECLINING SEATBACK, RH
main72510-95J00-06i198708-199109
BROWN,TRIM4#
sub72510-95J00
main72510-95J00-11i199109-199505
GRAY,TRIM1#
sub72510-95J00
9011906214
main90119-06214
9011908079
main90119-08079
9011908086
main90119-08086
9011908469
main90119-08469
9011910116
main90119-10116
9014950039
main90149-50039
9016840043
main90168-40043
9017908039
main90179-08039
9038612018
main90386-12018
9046818071
main90468-18071
9052308001
main90523-08001
9053006001
main90530-06001
9053018003
main90530-18003
9054006006
main90540-06006
9161161020
main91611-61020
9356055016
main93560-55016

41 parts on this diagram · 3 diagrams in section

SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
