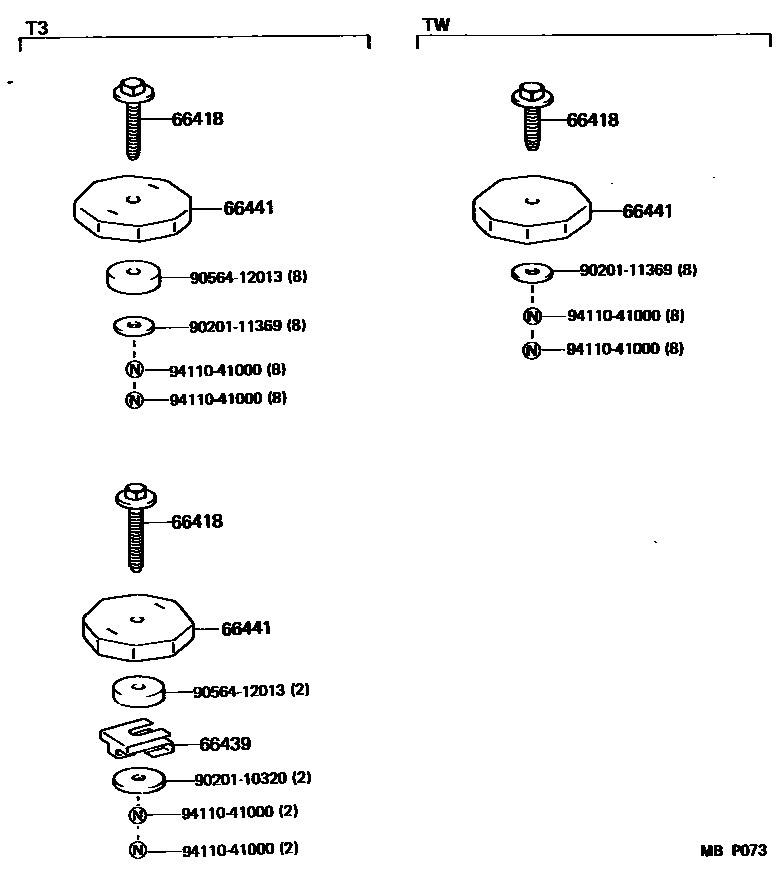

REAR BODY MOUNTING

66418BOLT, MOUNTING

main90119-10091iLH80,YH81..T3..CBU198708-199505

main90119-10102iLH80,YH81..TW..CBU198708-199505

66439SHIM, SUPPORT

main66439-95400iLH80,YH81..T3..CBU198708-199505

66441SHIM, MOUNTING, NO.1

main66441-95A01iLH80,YH81..TW..CBU198708-199310

main66442-95A01iLH80,YH81..T3..CBU198708-199505

UPR

main90564-12013iLH80,YH81..T3..CBU198708-199505

LWR

main90564-15142iLH80..TW..CBU199310-199505

9020110320

main90201-10320

9020111369

main90201-11369

9056412013

main90564-12013

9411041000

main94110-41000

7 parts on this diagram · 1 diagram in section
