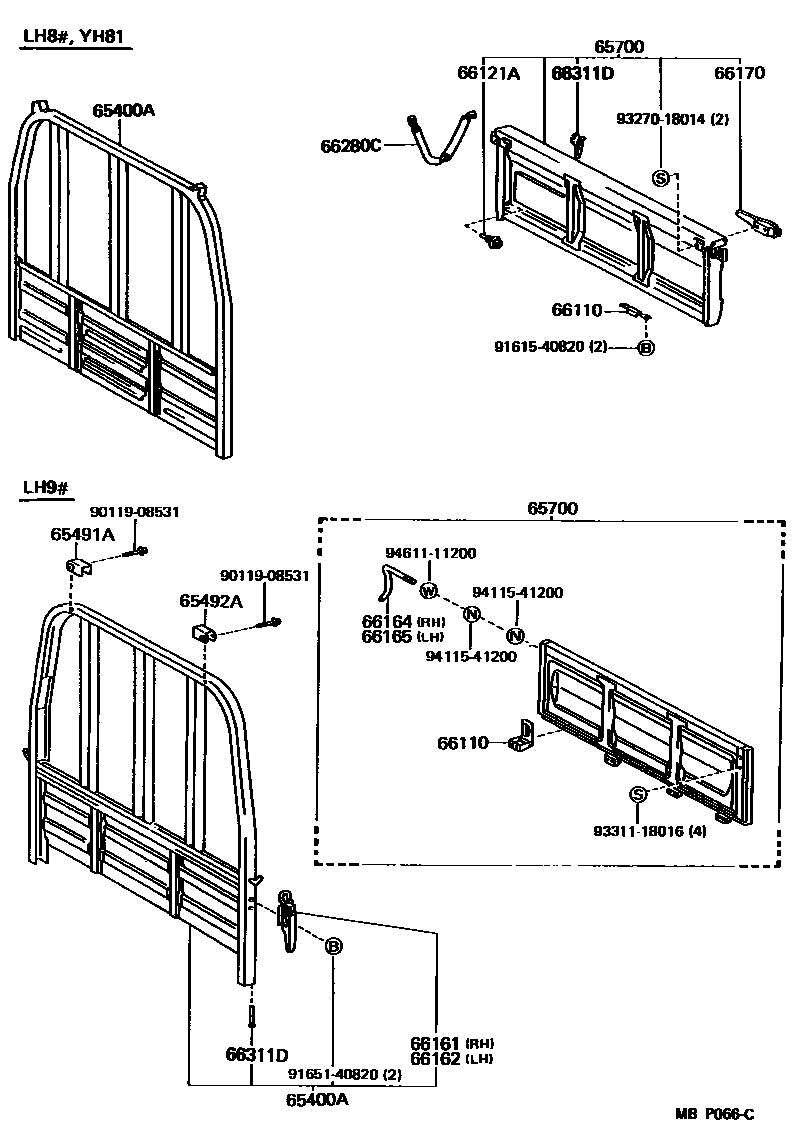

REAR BODY GUARD FRAME & TAIL GATE

0001 1 0002 1

65400AGUARD ASSY, REAR BODY

main65400-26070iLH80..TW..CBU199210-199505

main65400-26080iLH80,YH81..T3..CBU199210-199505

main65400-95A06iLH80,YH81..T3..CBU198708-199008

sub65400-95A12

main65400-95A11iLH80,YH81..TW..CBU198708-199210

sub65400-26070

main65400-95A12iLH80,YH81..T3..CBU199008-199210

sub65400-26080

65491ASTOP, GUARD FRAME LOAD SLIDE, RH

main65491-25010iLH80,YH81..T3..CBU199008-199505

main65491-95A03iLH80,YH81..T3..CBU198708-199008

sub65491-25010

65492ASTOP, GUARD FRAME LOAD SLIDE, LH

main65492-25010iLH80,YH81..T3..CBU199008-199505

main65492-95A00iLH80,YH81..T3..CBU198708-199008

sub65492-25010

65700GATE ASSY, REAR BODY TAIL

main65700-25010iLH80..TW..CBU199210-199505

main65700-26010iLH80,YH81..T3..CBU199109-199505

main65700-95031iLH80,YH81..T3..CBU198708-199008

sub65700-95032

main65700-95032iLH80,YH81..T3..CBU199008-199109

main65700-95415iLH80,YH81..TW..CBU198708-199210

sub65700-25010

sub75995-37020

66110HINGE ASSY, TAIL GATE

main66110-26010iLH80,YH81..T3..CBU199109-199505

main66110-95014iLH80,YH81..TW..CBU198708-199505

main66110-95020iLH80,YH81..T3..CBU198708-199109

66121ABOLT, TAIL GATE MALE

main66121-95012iLH80,YH81..TW..CBU198708-199505

66161HANDLE, SIDE GATE LATCH, RH

main65490-92701iLH80,YH81..T3..CBU198708-199505

66162HANDLE, SIDE GATE LATCH, LH

main65480-92700iLH80,YH81..T3..CBU198708-199505

66164HANDLE, TAIL GATE LATCH, RH

main66264-26010iLH80,YH81..T3..CBU199109-199505

main66264-95010iLH80,YH81..T3..CBU198708-199109

66165HANDLE, TAIL GATE LATCH, LH

main66265-26010iLH80,YH81..T3..CBU199109-199505

main66265-95011iLH80,YH81..T3..CBU198708-199109

66170LATCH ASSY, REAR BODY TAIL GATE

main66170-95402iLH80,YH81..TW..CBU198708-199505

66280CCHAIN ASSY, TAIL GATE

main66280-25010iYH81..T3..CBU;LH80..T3..EUR..CBU199009-199505

W(TAIL GATE CHAIN)

main66280-25010iLH80,YH81..T3..CBU198910-199009

main66280-37010iLH80,YH81..TW..CBU198910-199505

main66280-95016iLH80,YH81..T3..CBU198708-198910

sub66280-25010

main66280-95403iLH80,YH81..TW..CBU198708-198910

sub66280-37010

66311DHOOK, ROPE

main66311-90K00iLH80..TW..CBU199210-199505

main66311-95010iLH80,YH81..TW..CBU198708-199210

sub66311-90K00

main66312-95A01iLH80,YH81..T3..CBU198708-199505

9011908531

main90119-08531

9161540820

main91615-40820

9165140820

main91651-40820

9327018014

main93270-18014

9331118016

main93311-18016

9411541200

main94115-41200

9461111200

main94611-11200

20 parts on this diagram · 2 diagrams in section
