FLOOR MAT & SILENCER PAD

55211SILENCER, FRONT PANEL

main55211-95404iLH80,YH81..EUR198708-199505

55213APAD, DASH PANEL SILENCER

main55213-95400iLH80,YH81198708-199505

UPPER

main55213-95401iLH80,YH81198708-199505

LOWER

58288SEAL, SHIFT LEVER BOOT

main58285-95A01iLH80..4FC198808-199203

58504CMAT SUB-ASSY, HEADER

main58504-95021-06iLH80,YH81..TW..(ARL,EUR)198708-199109

BROWN,TRIM4#

main58504-95021-B0iLH80,YH81..TW..(ARL,EUR)199109-199505

GRAY,TRIM1#

58509BMAT SUB-ASSY, SEAT FLOOR

main58509-95024-06iYH81..ARL..CBU198708-199109

BROWN,TRIM4#

main58509-95024-B0iYH81..ARL..CBU199109-199203

GRAY,TRIM1#

main58509-95025-06iLH80,YH81..T3..EUR198708-199109

BROWN,TRIM4#

main58509-95025-B0iLH80,YH81..T3..EUR199109-199505

GRAY,TRIM1#

main58509-95A05-06iLH80,YH81..TW..EUR198708-199109

BROWN,TRIM4#

main58509-95A05-B0iLH80,YH81..TW..EUR199109-199505

GRAY,TRIM1#

main58509-95A06-06iLH80,YH81..ARL..IV198708-199109

BROWN,TRIM4#

main58509-95A06-B0iLH80,YH81..ARL..IV199109-199505

GRAY,TRIM1#

58510BMAT, FRONT FLOOR, FRONT

main58510-95038-06iLH80,YH81..ARL198708-198803

BROWN,TRIM4#

sub58510-95038

main58510-95039-06iLH80,YH81..EUR198708-199109

BROWN,TRIM4#

sub58510-95039

main58510-95039-B0iLH80,YH81..EUR199109-199505

GRAY,TRIM1#

sub58510-95039

main58510-95045-06iYH81..LHD..GEN198708-199109

BROWN,TRIM4#

main58510-95045-B0iYH81..LHD..GEN199109-199505

GRAY,TRIM1#

main58510-95046-06iLH80,YH81..RHD..GEN198708-199109

BROWN,TRIM4#

main58510-95046-B0iLH80,YH81..RHD..GEN199109-199505

GRAY,TRIM1#

main58510-95A04-06iLH80..T3..EUR..IV198708-199109

FINLAND SPEC,BROWN,TRIM4#

main58510-95A09-06iLH80,YH81..ARL198803-199109

DARK BROWN,TRIM4#

sub58510-95A09

main58510-95A09-B0iLH80,YH81..ARL199109-199505

GRAY,TRIM1#

sub58510-95A09

58513CMAT, FLOOR, FRONT CENTER

main58513-95010-06iLH80,YH81..RHD..GEN198708-199109

BROWN,TRIM4#

main58513-95010-B0iLH80,YH81..RHD..GEN199109-199505

GRAY,TRIM1#

main58513-95011-06iYH81..LHD..GEN198708-199109

BROWN,TRIM4#

main58513-95011-B0iYH81..LHD..GEN199109-199505

GRAY,TRIM1#

58520FMAT ASSY, ENGINE COVER

main58520-95011-06iLH80,YH81..ARL198708-199109

BROWN,TRIM4#

main58520-95011-B0iLH80,YH81..ARL199109-199505

GRAY,TRIM1#

main58520-95018-06iLH80,YH81..EUR198708-199109

BROWN,TRIM4#

main58520-95018-B0iLH80,YH81..EUR199109-199505

GRAY,TRIM1#

58540CMAT ASSY, FLOOR, REAR

main58540-95017-06iLH80,YH81..5F..ARL198708-199109

BROWN,TRIM4#

main58540-95017-B0iLH80,YH81..5F..ARL199109-199505

GRAY,TRIM1#

main58540-95018-06iLH80,YH81..EUR198708-199109

BROWN,TRIM4#

main58540-95018-B0iLH80,YH81..EUR199109-199505

GRAY,TRIM1#

main58540-95A20-06iLH80..4FC198708-198808

BROWN,TRIM4#

main58540-95A22-06iLH80..4FC198808-199109

DARK BROWN,TRIM4#

main58540-95A22-B0iLH80..4FC199109-199203

GRAY,TRIM1#

58570BMAT ASSY, REAR FLOOR

main58581-95406-06iLH80,YH81..TW198708-199109

BROWN,TRIM4#

main58581-95406-B0iLH80,YH81..TW199109-199505

GRAY,TRIM1#

58597PLATE, SEAT TRACK SET

main58597-95400iLH80,YH81..GEN198708-199505

58614APLATE, MAT SET, NO.4

main58614-95A01-06iLH80,YH81..TW198708-199109

BROWN,TRIM4#

main58614-95A01-B0iLH80,YH81..TW199109-199505

GRAY,TRIM1#

67913PLATE, FRONT DOOR SCUFF, RH

main67913-95403-06iLH80,YH81198708-199109

BROWN,TRIM4#

main67913-95403-B0iLH80,YH81199109-199505

GRAY,TRIM1#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-95403-06iLH80,YH81198708-199109

BROWN,TRIM4#

main67914-95403-B0iLH80,YH81199109-199505

GRAY,TRIM1#

9015940041

main90159-40041

9018904013

main90189-04013

9018905055

main90189-05055

9053004005

main90530-04005

9053004007

main90530-04007

9053006001

main90530-06001

9095001332

main90950-01332

9356055016

main93560-55016

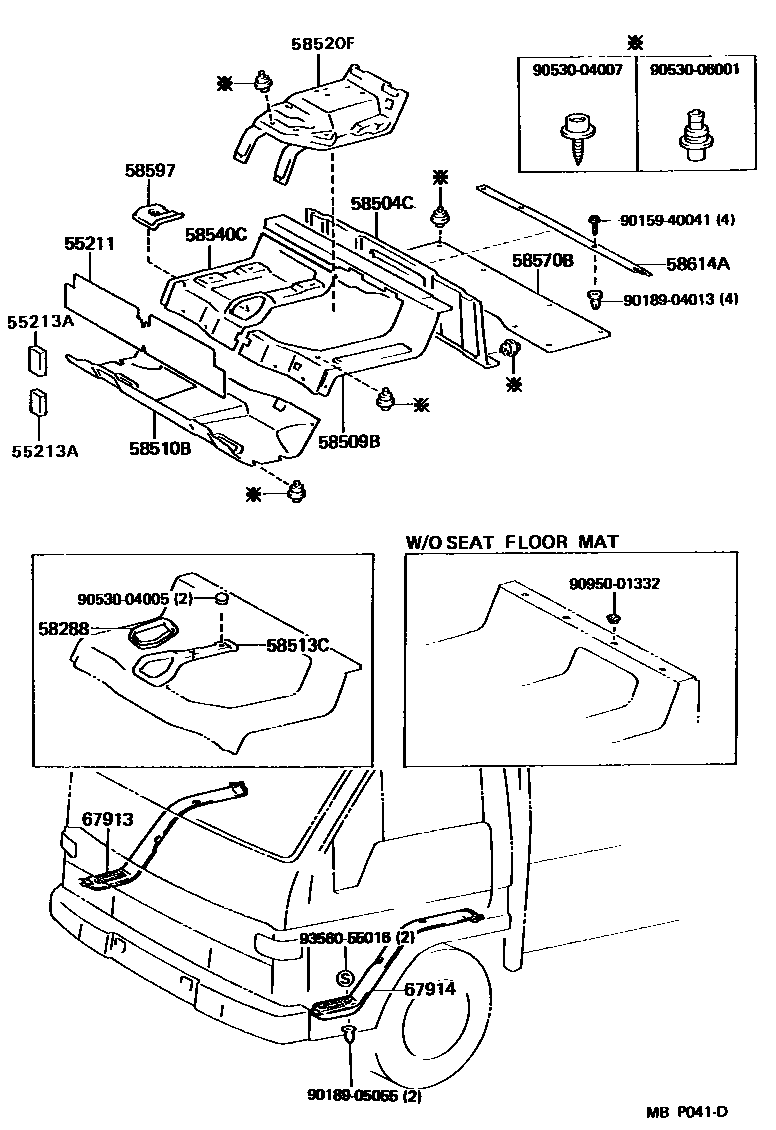

22 parts on this diagram · 1 diagram in section
