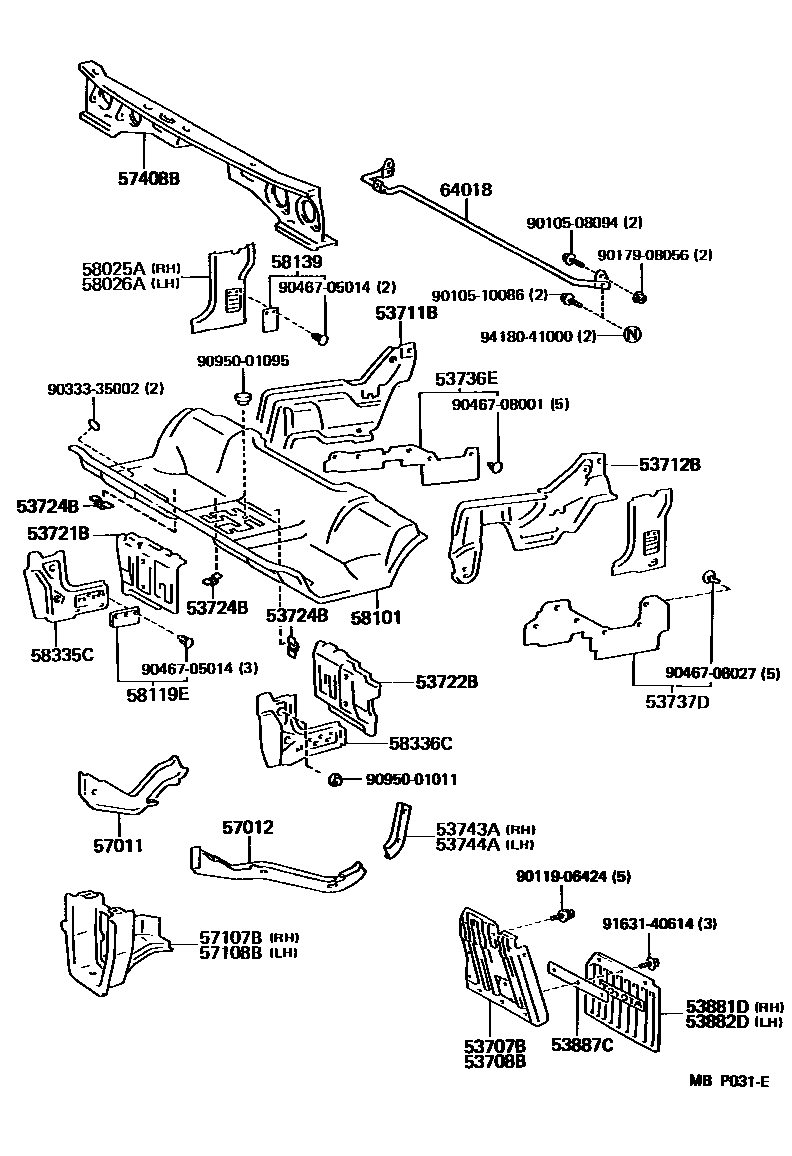

FRONT FLOOR PANEL & FRONT FLOOR MEMBER
53707BAPRON SUB-ASSY, FENDER SIDE, RH
53708BAPRON SUB-ASSY, FENDER SIDE, LH
53712BAPRON, FRONT FENDER, FRONT LH
53721BAPRON SUB-ASSY, FENDER SIDE, RH
sub53721-37010
53722BAPRON SUB-ASSY, FENDER SIDE, LH
sub53722-37020
53724BBRACKET, CLAMP(FOR FLOOR PANEL)
53736ESEAL, FRONT FENDER APRON, RH
53737DSEAL, FRONT FENDER APRON, LH
53743AREINFORCEMENT, FRONT FENDER APRON, FRONT RH
53744AREINFORCEMENT, FRONT FENDER APRON, FRONT LH
53881DMUDGUARD, FRONT RH
53882DMUDGUARD, FRONT LH
53887CPLATE, FRONT MUDGUARD
57011MEMBER SUB-ASSY, FLOOR, RH
57012MENBER SUB-ASSY
57107BBRACKET SUB-ASSY, CAB FRONT MOUNTING, RH
57408BMEMBER SUB-ASSY, FRONT FLOOR CROSS
W(AIR CONDITIONER)
sub57408-95A14
sub57408-95A15
W(AIR CONDITIONER)
58025APANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH
58026APANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH
58101PAN SUB-ASSY, FRONT FLOOR
FINLAND SPEC
SWEDEN SPEC
58119ECOVER, FRONT FLOOR SIDE, FRONT
58139COVER, FRONT FLOOR SIDE, REAR
RH
LH
58335CPLATE, FLOOR SIDE, FRONT RH
58336CPLATE, FLOOR SIDE, FRONT LH
64018BAR SUB-ASSY, BODY
IRELAND SPEC
9010508094
main90105-08094
9010510086
main90105-10086
9011906424
main90119-06424
9017908056
main90179-08056
9033335002
main90333-35002
9046705014
main90467-05014
9046708001
main90467-08001
9046708027
main90467-08027
9095001011
main90950-01011
9095001095
main90950-01095
9163140614
main91631-40614
9418041000
main94180-41000
39 parts on this diagram · 3 diagrams in section
