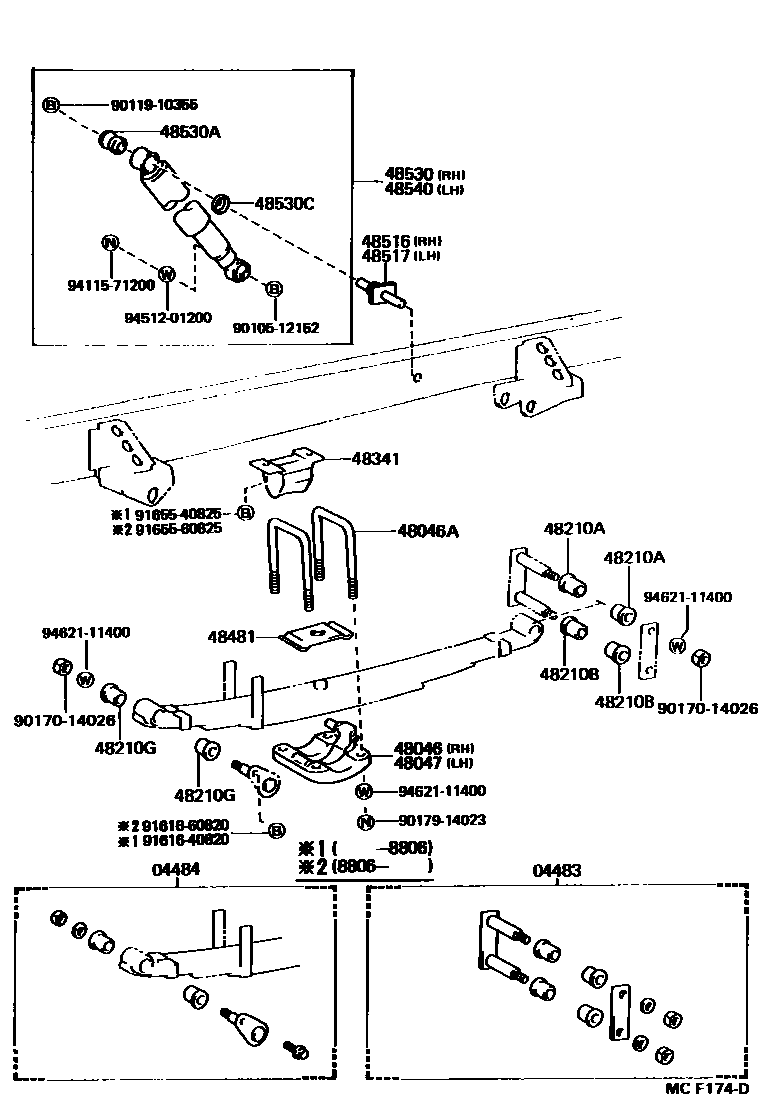

REAR SPRING & SHOCK ABSORBER
04483SHACKLE KIT, REAR SPRING
sub04483-35040
04484PIN KIT, REAR SPRING
48046SEAT SUB-ASSY, SPRING U BOLT, RH
48046ABOLT, U(FOR REAR SPRING)
L=185
L=165
48047SEAT SUB-ASSY, SPRING U BOLT, LH
48210SPRING ASSY, REAR RH
48210ABUSH(FOR REAR SPRING SHACKLE UPPER)
48210BBUSH(FOR REAR SPRING PIN)
48210GBUSH(FOR REAR SPRING SHACKLE LOWER)
48341BUMPER, REAR SPRING
48481SEAT, REAR SPRING, UPPER
48516BRACKET, REAR SHOCK ABSORBER, UPPER RH
48517BRACKET, REAR SHOCK ABSORBER, UPPER LH
48530ABUSH(FOR REAR SHOCK ABSORBER)
48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2
9010512152
main90105-12152
9011910355
main90119-10355
9017014026
main90170-14026
9017914023
main90179-14023
9161640820
main91616-40820
9161660820
main91616-60820
9165540825
main91655-40825
9165560825
main91655-60825
9411571200
main94115-71200
9451201200
main94512-01200
9462111400
main94621-11400
28 parts on this diagram · 3 diagrams in section
