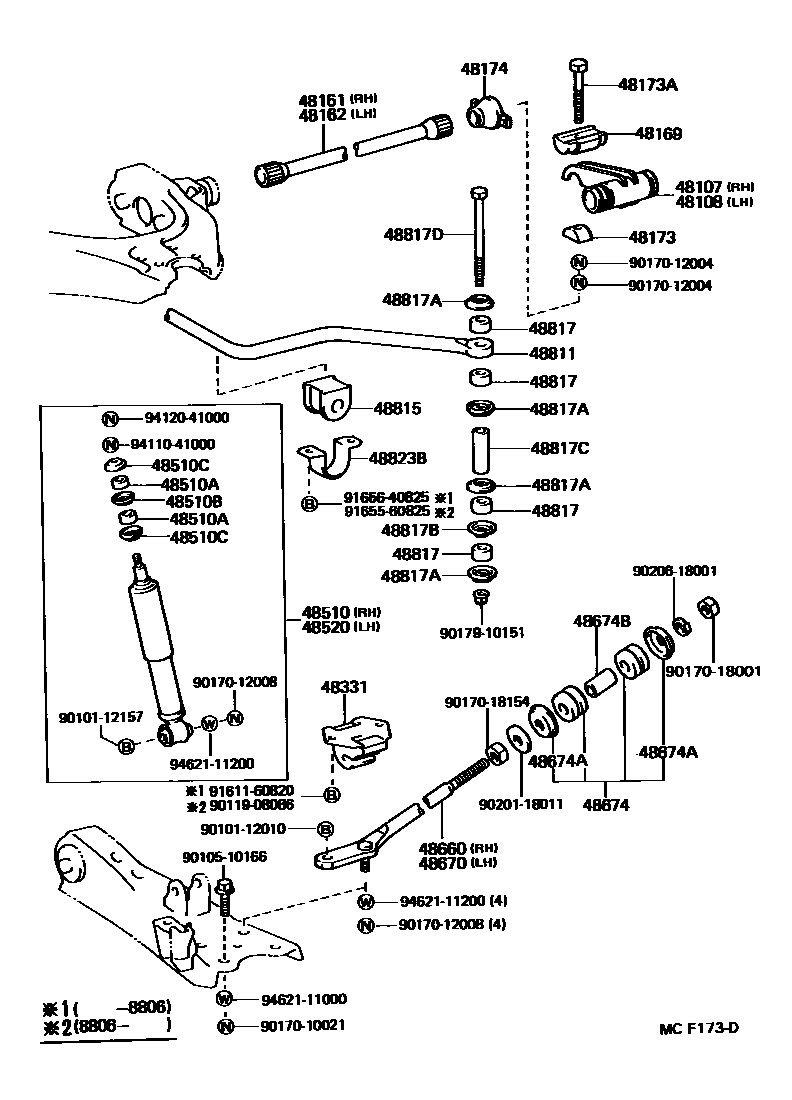

FRONT SPRING & SHOCK ABSORBER
48107ARM SUB-ASSY, ANCHOR, RH
48108ARM SUB-ASSY, ANCHOR, LH
48161SPRING, TORSION BAR, RH
48162SPRING, TORSION BAR, LH
48169SWIVEL, ANCHOR ARM
48173SEAT, ANCHOR ARM ADJUSTER
48173ABOLT, HEXAGON(FOR ANCHOR ARM ADJUSTING)
48174COVER, TORSION BAR DUST
48331BUMPER, FRONT SPRING, NO.1
48510ABSORBER ASSY, SHOCK, FRONT RH
48510ACUSHION, FRONT SHOCK ABSORBER
48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
48520ABSORBER ASSY, SHOCK, FRONT LH
48660BAR ASSY, STRUT, RH
48670BAR ASSY, STRUT, LH
48674CUSHION, STRUT BAR
48674ARETAINER, CUSHION(FOR STRUT BAR CUSHION)
48674BCOLLAR(FOR STRUT BAR CUSHION)
48811BAR, STABILIZER, FRONT
48815BUSH, FRONT STABILIZER BAR, NO.1
48817CUSHION, FRONT STABILIZER
48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)
48817CCOLLAR(FOR STABILIZER BAR)
48817DBOLT(FOR FRONT STABILIZER)
48823BCOVER, FRONT STABILIZER BRACKET
sub48823-26120
9010112010
main90101-12010
9010112157
main90101-12157
9010510166
main90105-10166
9011908086
main90119-08086
9017010021
main90170-10021
9017012004
main90170-12004
9017012008
main90170-12008
9017018001
main90170-18001
9017018154
main90170-18154
9017910151
main90179-10151
9020118011
main90201-18011
9020618001
main90206-18001
9161160820
main91611-60820
9165560825
main91655-60825
9165640825
main91656-40825
9411041000
main94110-41000
9412041000
main94120-41000
9462111000
main94621-11000
9462111200
main94621-11200
46 parts on this diagram · 1 diagram in section
