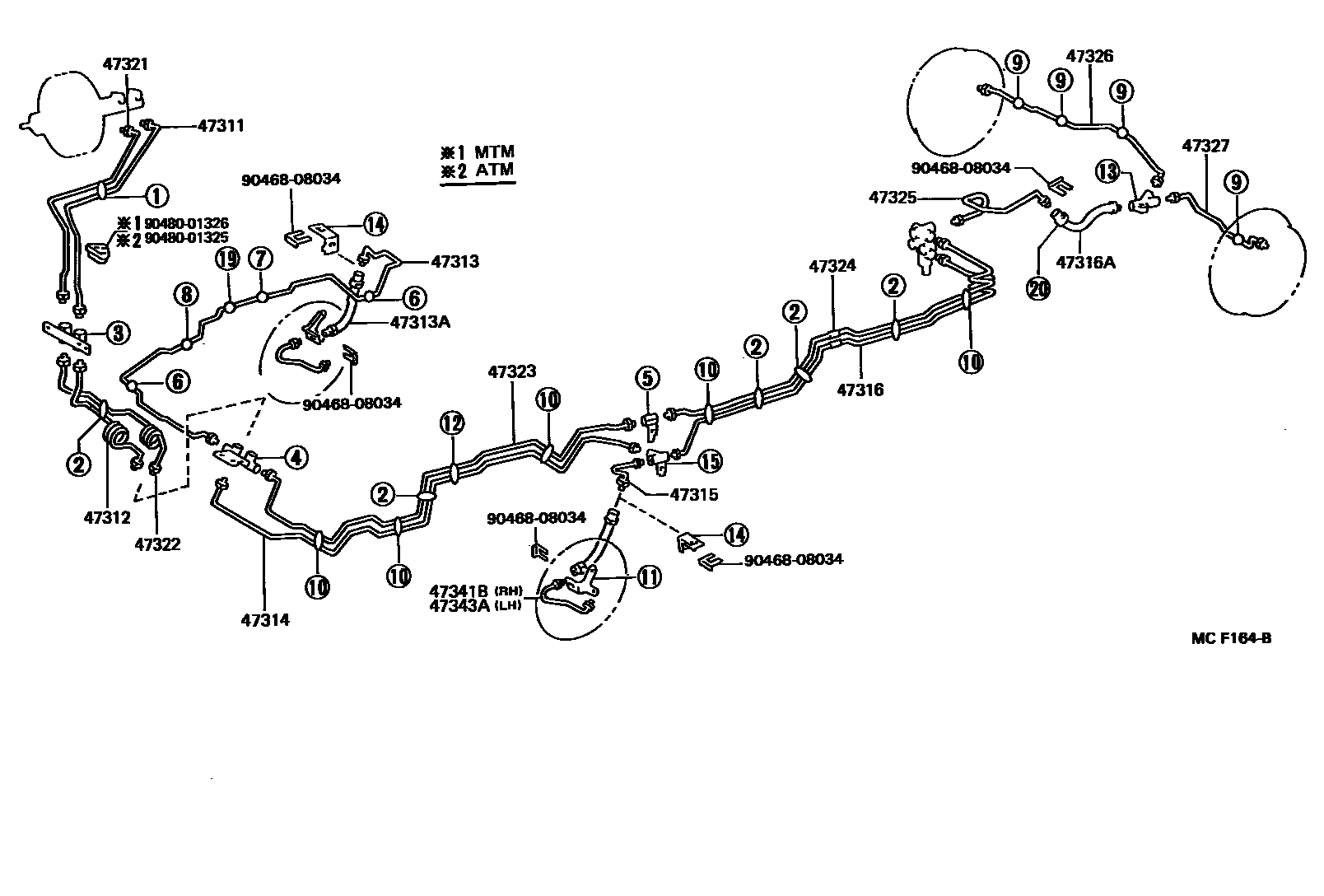

BRAKE TUBE & CLAMP

0001 1GEN=IRELAND SPEC 0002 1 0003 1 0004 1 0005 1 0006 1

47311TUBE, FRONT BRAKE, NO.1

main47311-26250iLH80,YH81..RHD198708-199505

main47311-26260iLH80,YH81..LHD198708-199505

main47311-26310iYH81..EUR..IV198808-199505

SWEDEN SPEC

47312TUBE, FRONT BRAKE, NO.2

main47312-26200iLH80,YH81..RHD198708-199505

main47312-26210iLH80,YH81..LHD198708-199505

47313TUBE, FRONT BRAKE, NO.3

main47313-26110iLH80,YH81198708-199505

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02477×2iLH80,YH81198708-199505

47314TUBE, FRONT BRAKE, NO.4

main47314-26100iLH80,YH81..GEN198708-199505

main47314-26110iLH80,YH81..ARL,EUR198708-199505

IRELAND SPEC

47315TUBE, FRONT BRAKE, NO.5

main47315-26090iLH80,YH81..ARL,EUR198708-199505

IRELAND SPEC

47316TUBE, FRONT BRAKE, NO.6

main47316-26131iLH80..GEN..CBU198708-198808

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02555iLH80,YH81198708-199505

47321TUBE, REAR BRAKE, NO.1

main47321-26160iLH80,YH81..RHD198708-199505

main47321-26170iLH80,YH81..LHD198708-199505

main47321-26220iYH81..EUR..IV198808-199505

SWEDEN SPEC

47322TUBE, REAR BRAKE, NO.2

main47322-26130iLH80,YH81..RHD198708-199505

main47322-26140iLH80,YH81..LHD198708-199505

47323TUBE, REAR BRAKE, NO.3

main47323-26280iLH80,YH81198708-199505

47324TUBE, REAR BRAKE, NO.4

main47324-26151iLH80,YH81199309-199505

main47324-26161iLH80,YH81..GEN198708-199309

47325TUBE, REAR BRAKE, NO.5

main47325-26190iLH80..GEN..CBU198708-198808

W(LSPV) OR IRELAND SPEC & W(FRONT DISC BRAKE)

main47325-26200iLH80,YH81..GEN198708-199109

main47325-26281iLH80,YH81..ARL,EUR199109-199309

IRELAND SPEC OR W(LSPV)

main47325-26290iLH80,YH81..GEN199109-199309

47326TUBE, REAR BRAKE, NO.6

main47326-26170iLH80,YH81198708-198808

main47326-26240iLH80..TW;LH80,YH81..EUR..IV198801-198808

DENMARK SPEC

47327TUBE, REAR BRAKE, NO.7

main47327-26050iLH80,YH81..ARL,GEN198808-199505

main47327-26090iLH80,YH81..EUR198808-199505

47341BTUBE, WHEEL CYLINDER, FRONT RH NO.1

main47341-26060iLH80,YH81..ARL,EUR198708-199309

W(FRONT DISC BRAKE)

main47341-26070iLH80,YH81..GEN198708-199309

47343ATUBE, WHEEL CYLINDER, FRONT LH NO.1

main47343-26060iLH80,YH81..ARL,EUR198708-199309

W(FRONT DISC BRAKE)

main47343-26070iLH80,YH81..GEN198708-199309

9046808034

main90468-08034

9048001325

main90480-01325

9048001326

main90480-01326

20 parts on this diagram · 6 diagrams in section
