REAR AXLE HOUSING & DIFFERENTIAL

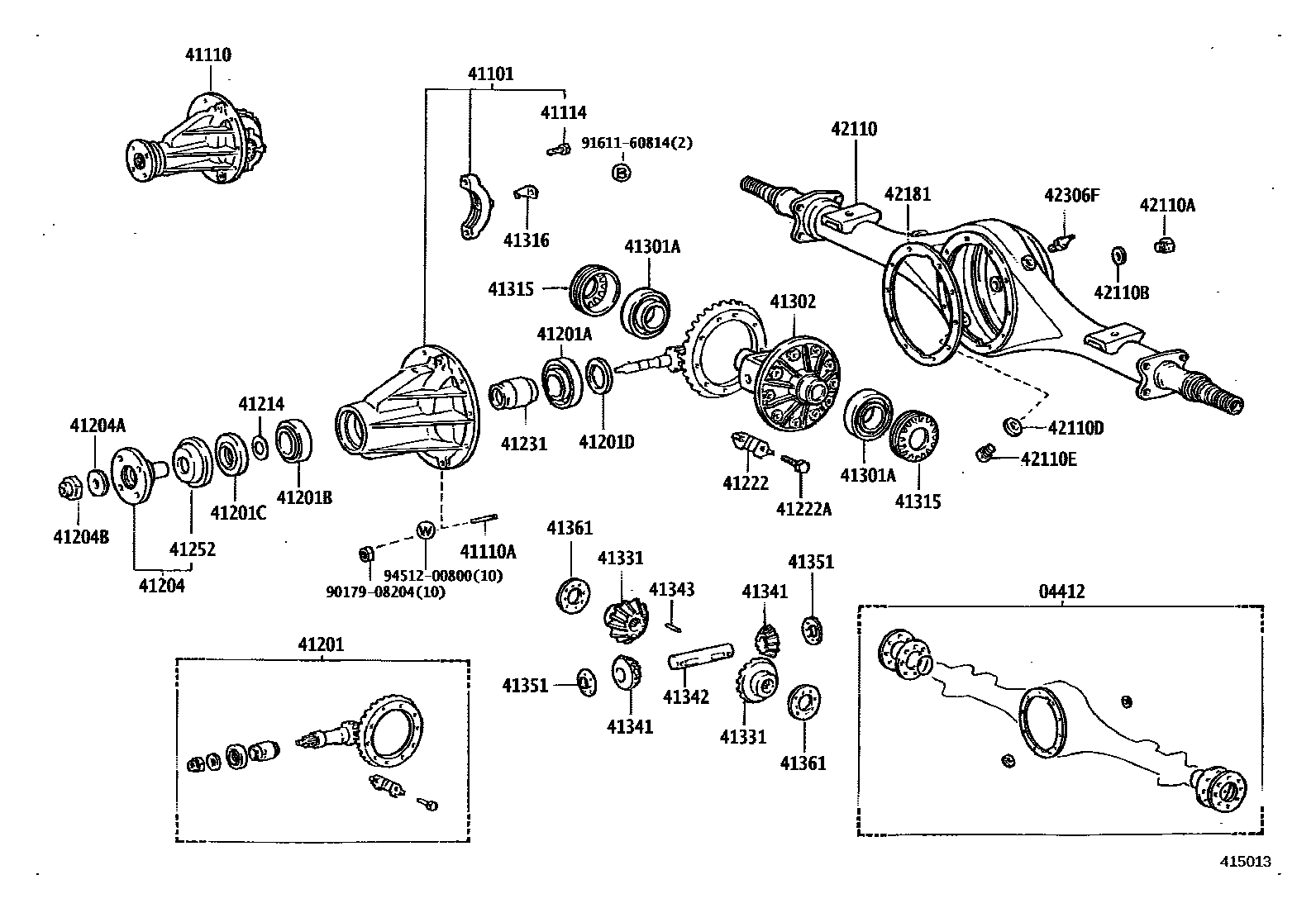

Parts diagram
04412GASKET KIT, REAR DIFFERENTIAL CARRIER
main04412-26010i198708-199505
41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR
main41101-35030i198708-198905
sub41101-35031
sub90116-08329
main41101-35031i198905-199505
main41101-35040i198708-198905
sub41101-35041
sub90116-08329
main41101-35041i198905-199505
41110CARRIER ASSY, DIFFERENTIAL, REAR
main41110-35044i198708-198905
*FGR=37:7=5.285
sub41110-35045
sub90116-08329
sub90116-08334
main41110-35045i198905-199505
*FGR=37:7=5.285
main41110-35084i198905-199505
*FGR=39:8=4.875
sub41110-35085
main41110-35171i198708-198905
*FGR=43:10=4.300
sub41110-35211
main41110-35181i198708-198905
*FGR=41:9=4.555
sub41110-35221
main41110-35191i198708-198905
*FGR=39:8=4.875
sub41110-35083
main41110-35212i199210-199505
*FGR=43:10=4.300,IRELAND SPEC
sub41110-35213
main41110-35212i198905-199505
*FGR=43:10=4.300
sub41110-35213
main41110-35222i198905-199505
*FGR=41:9=4.555
sub41110-3D260
main41110-35241i198708-198905
*FGR=43:10=4.300,W(LSD)
sub41110-35301
main41110-35251i198708-198905
*FGR=41:9=4.555,W(LSD)
sub41110-35311
main41110-35302i198905-199505
*FGR=43:10=4.300,W(LSD)
sub41110-3D040
main41110-35312i198905-199505
*FGR=41:9=4.555,W(LSD)
sub41110-3D210
41110ABOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
main90116-08179i198708-198808
L=36
main90116-08180i198708-198908
L=44
main90116-08285i198808-198908
L=38
main90116-08329i198908-199505
S=17 & 12,L=37
main90116-08334i198908-199505
S=12 & 14,L=44
41114BOLT, REAR DIFFERENTIAL BEARING CAP
main90105-12053i198708-199505
41201FINAL GEAR KIT, DIFFERENTIAL, REAR
main41201-29795i198708-199505
*FGR=43:10=4.300
sub41201-29796
sub41204-35081
sub41214-26011
main41201-29795i199210-199505
*FGR=43:10=4.300,IRELAND SPEC
sub41201-29796
sub41204-35081
sub41214-26011
main41201-29805i198708-199505
*FGR=41:9=4.556
sub41201-29537
sub41204-35081
sub41214-26011
main41201-29815i198708-199003
*FGR=39:8=4.875
sub41201-29816
main41201-29816i199003-199505
*FGR=39:8=4.875
sub41201-29817
sub41204-35081
sub41214-26011
main41201-29825i198708-199505
*FGR=37:7=5.285
sub41201-29826
sub41204-35081
sub41214-26011
main41201-69285i199003-199505
*FGR=39:8=4.875
sub41201-80183
sub41204-35081
sub41214-26011
41201ABEARING (FOR REAR DRIVE PINION REAR)
main90366-35044i198708-199505
41201BBEARING (FOR REAR DRIVE PINION FRONT)
main90366-30022i198708-199505
sub90366-30078
41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
main90311-38133i198708-199505
sub90311-38047
41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
main90201-35497i198708-199505
OD=47,T=1.70
main90201-35498i198708-199505
OD=47,T=1.73
main90201-35499i198708-199505
OD=47,T=1.76
main90201-35500i198708-199505
OD=47,T=1.79
main90201-35501i198708-199505
OD=47,T=1.82
main90201-35502i198708-199505
OD=47,T=1.85
main90201-35503i198708-199505
OD=47,T=1.88
main90201-35504i198708-199505
OD=47,T=1.91
main90201-35505i198708-199505
OD=47,T=1.94
main90201-35506i198708-199505
OD=47,T=1.97
main90201-35507i198708-199505
OD=47,T=2.00
main90201-35508i198708-199505
OD=47,T=2.03
main90201-35509i198708-199505
OD=47,T=2.06
main90201-35510i198708-199505
OD=47,T=2.09
main90201-35511i198708-199505
OD=47,T=2.12
main90201-35512i198708-199505
OD=47,T=2.15
main90201-35513i198708-199505
OD=47,T=2.18
main90201-35514i198708-199505
OD=47,T=2.21
main90201-35515i198708-199505
OD=47,T=2.24,MARK 01
main90201-35516i198708-199505
OD=47,T=2.27,MARK 02
main90201-35517i198708-199505
OD=47,T=2.30,MARK 03
main90201-35518i198708-199505
OD=47,T=2.33,MARK 04
41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
main41204-35040i198708-199505
41204AWASHER, PLATE (FOR REAR DRIVE PINION)
main90201-20005i198708-199308
41204BNUT (FOR REAR DRIVE PINION)
main90179-20001i198708-199308
main90179-20018i199308-199505
OD=37
41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
main41214-26010i198708-199505
41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK
main41222-35020i198708-199505
41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
main90101-11353i198708-199505
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
main41231-40011i198708-199505
41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
main41252-35010i198708-199303
sub41252-35020
main41252-35020i199303-199505
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
main90368-45066i198708-199505
main90368-50024i198708-199505
W(LSD)
41302CASE SUB-ASSY, REAR DIFFERENTIAL
main41302-35010i198708-199505
W(LSD)
sub41302-35040
main41311-40020i198708-199505
sub41311-40021
sub90105-11063
41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING
main41315-35010i198708-199505
41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT
main41316-30010i198708-199305
main41316-35010i199305-199505
41331GEAR, REAR DIFFERENTIAL SIDE
main41331-35011i198708-199505
main41331-35030i198708-199505
W(LSD)
sub41039-34070
41341PINION, REAR DIFFERENTIAL
main41341-30020i199408-199505
W(LSD)
sub41341-30050
main41341-35010i198708-199408
W(LSD)
sub41341-14041
main41341-35020i198708-199505
41342SHAFT, REAR DIFFERENTIAL PINION
main41342-39610i198708-199505
41343PIN, REAR DIFFERENTIAL PINION SHAFT
main90250-06085i198708-199505
41351WASHER, REAR DIFFERENTIAL PINION THRUST
main41351-30052i198708-199505
main41351-30060i198708-199505
W(LSD)
41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
main41361-40021i198708-199505
T=1.6
main41362-40021i198708-199505
T=1.7
main41363-40021i198708-199505
T=1.8
42110HOUSING ASSY, REAR AXLE
main42110-26191i198708-199505
sub42110-26192
42110APLUG (FOR REAR AXLE HOUSING FILLER)
main90341-18006i198708-199505
42110BGASKET (FOR REAR AXLE HOUSING FILLER PLUG)
main12157-10010i198708-199505
42110DGASKET (FOR REAR AXLE HOUSING DRAIN PLUG)
main12157-10010i198708-199505
42110EPLUG (FOR REAR AXLE HOUSING DRAIN)
main90341-18040i199110-199505
main90341-18057i198708-199110
42181GASKET, REAR DIFFERENTIAL CARRIER
main42181-60020i198708-199505
42306FPLUG, BREATHER (FOR REAR AXLE)
main90930-03031i198708-199505
9017908204
main90179-08204
9161160814
main91611-60814
9451200800
main94512-00800

38 parts on this diagram · 2 diagrams in section
