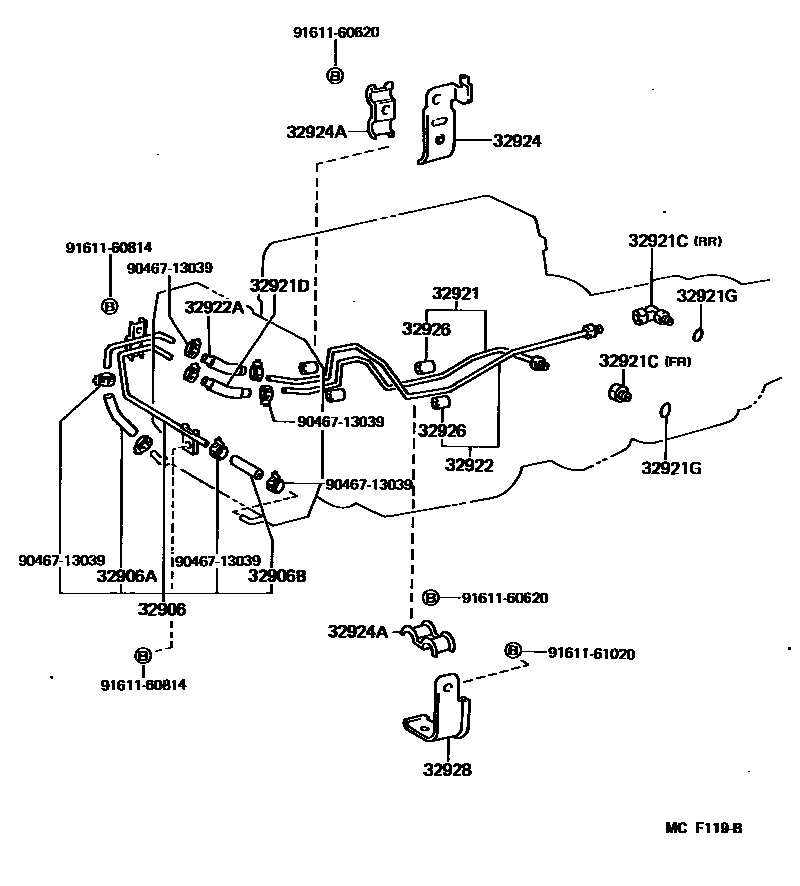

OIL COOLER & TUBE (ATM)

32906TUBE SUB-ASSY, OIL COOLER

main32906-26070iLH80..4FC198708-199203

32906AHOSE, OIL COOLER TUBE(FOR INLET)

main90445-15028iLH80..4FC198708-198907

main90445-15043iLH80..4FC198907-199203

32906BHOSE, OIL COOLER TUBE(FOR OUTLET)

main90445-15028iLH80..4FC198708-198907

main90445-15043iLH80..4FC198907-199203

32921TUBE, OIL COOLER INLET, NO.1

main32921-26060iLH80..4FC198708-198910

main32921-26061iLH80..4FC198910-199203

32921CUNION(FOR OIL COOLER TUBE)

main90404-16021iLH80..4FC198708-199203

FR

main90407-16010iLH80..4FC198708-199203

RR

32921DHOSE(FOR OIL COOLER INLET)

main32941-26060iLH80..4FC198708-198907

main32941-26061iLH80..4FC198907-199203

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189×2iLH80..4FC198708-199203

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-26060iLH80..4FC198708-198910

main32922-26111iLH80..4FC198910-199203

32922AHOSE(FOR OIL COOLER OUTLET)

main32941-26060iLH80..4FC198708-198907

main32941-26061iLH80..4FC198907-199203

32924CLAMP, OIL COOLER TUBE, NO.2

main32924-26020iLH80..4FC198708-198910

main32924-26061iLH80..4FC198910-199203

32924ACLAMP(FOR OIL COOLER TUBE, NO.2)

main90462-12044×2iLH80..4FC198708-199203

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-30020×4iLH80..4FC198708-199203

L=35,ID=10

32928CLAMP, FLEXIBLE HOSE, NO.1

main32928-26020iLH80..4FC198708-199203

sub32928-26021

9046713039

main90467-13039

9161160620

main91611-60620

9161160814

main91611-60814

9161161020

main91611-61020

17 parts on this diagram · 1 diagram in section
