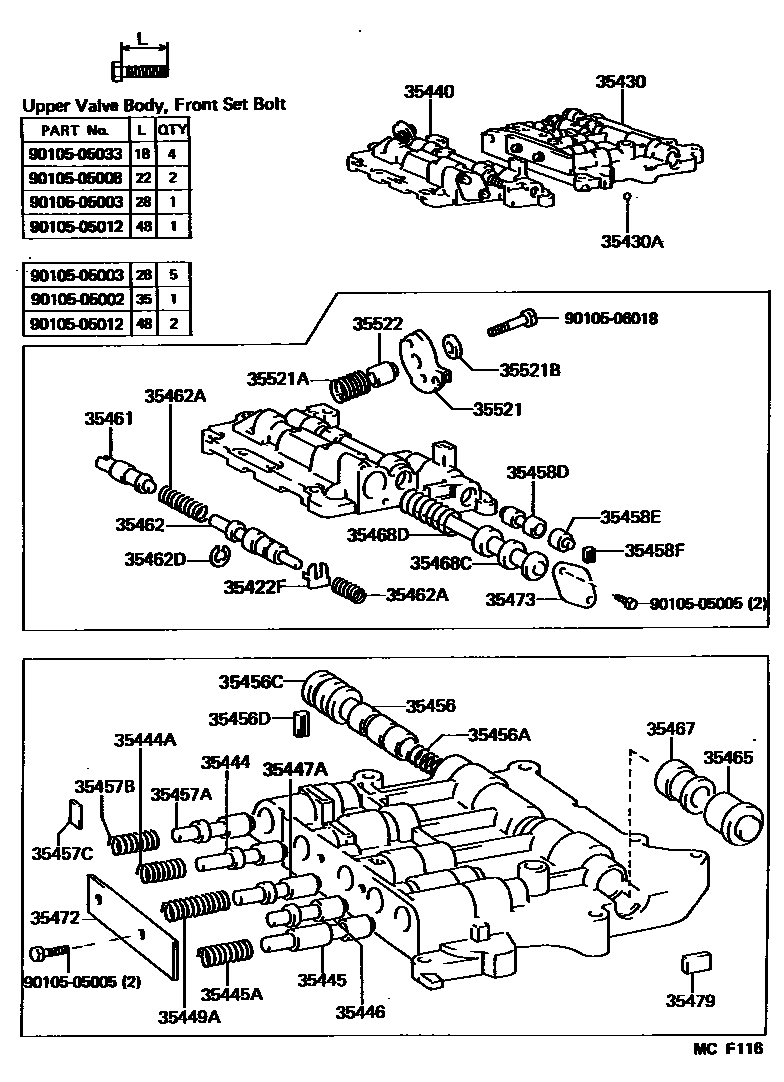

VALVE BODY & OIL STRAINER (ATM)
35422FSTOPPER, VALVE VIBRATING
35430BODY ASSY, REAR UPPER VALVE
35430ABALL (FOR REAR UPPER VALVE BODY)
OD=5.535,RUBBER
0D=5.56
35440BODY ASSY, FRONT UPPER VALVE
35444VALVE, INTERMEDIATE MODULATOR
35444ASPRING, COMPRESSION (FOR INTERMEDIATE MODULATOR VALVE)
35445VALVE, LOW MODULATOR
35445ASPRING, COMPRESSION (FOR LOW MODULATOR VALVE)
35446VALVE, GOVERNOR MODULATOR
35447AVALVE, REVERSE CLUTCH SEQUENCE
35449ASPRING, COMPRESSION (FOR SEQUENCE VALVE)
35456VALVE, 2-3 SHIFT
35456ASPRING, COMPRESSION (FOR 2-3 SHIFT VALVE)
35456CPLUG (FOR 2-3 SHIFT VALVE)
35456DSEAT (FOR 2-3 SHIFT VALVE)
35457AVALVE, DETENT REGULATOR
35457BSPRING, COMPRESSION (FOR DETENT REGULATOR VALVE)
35457CSEAT (FOR DETENT REGULATOR VALVE)
35458DVALVE, CUT BACK
35458EPLUG (FOR CUT BACK VALVE)
35458FSEAT (FOR CUT BACK VALVE)
35461PLUG, DOWN SHIFT
35462VALVE, THROTTLE
35462ASPRING, COMPRESSION (FOR THROTTLE VALVE)
L=19.24,SECONDARY
L=40.46,PRIMARY
35462DRING, E (FOR THROTTLE VALVE)
35465PLUG, INTERMEDIATE SHIFT VALVE
35467VALVE, INTERMEDIATE SHIFT
35468CVALVE, SECONDARY REGULATOR
35468DSPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE)
35472COVER, VALVE BODY, NO.2
35473COVER, TRANSMISSION VALVE BODY
35479SEAT, INTERMEDIATE SHIFT VALVE
35521CAM, THROTTLE VALVE
35521ASPRING (FOR THROTTLE VALVE CAM RETURN)
35521BWASHER (FOR THROTTLE VALVE CAM SET)
35522PIN, THROTTLE VALVE CAM
9010505002
main90105-05002
9010505003
main90105-05003
9010505005
main90105-05005
9010505008
main90105-05008
9010505012
main90105-05012
9010505033
main90105-05033
9010506018
main90105-06018
43 parts on this diagram · 3 diagrams in section
