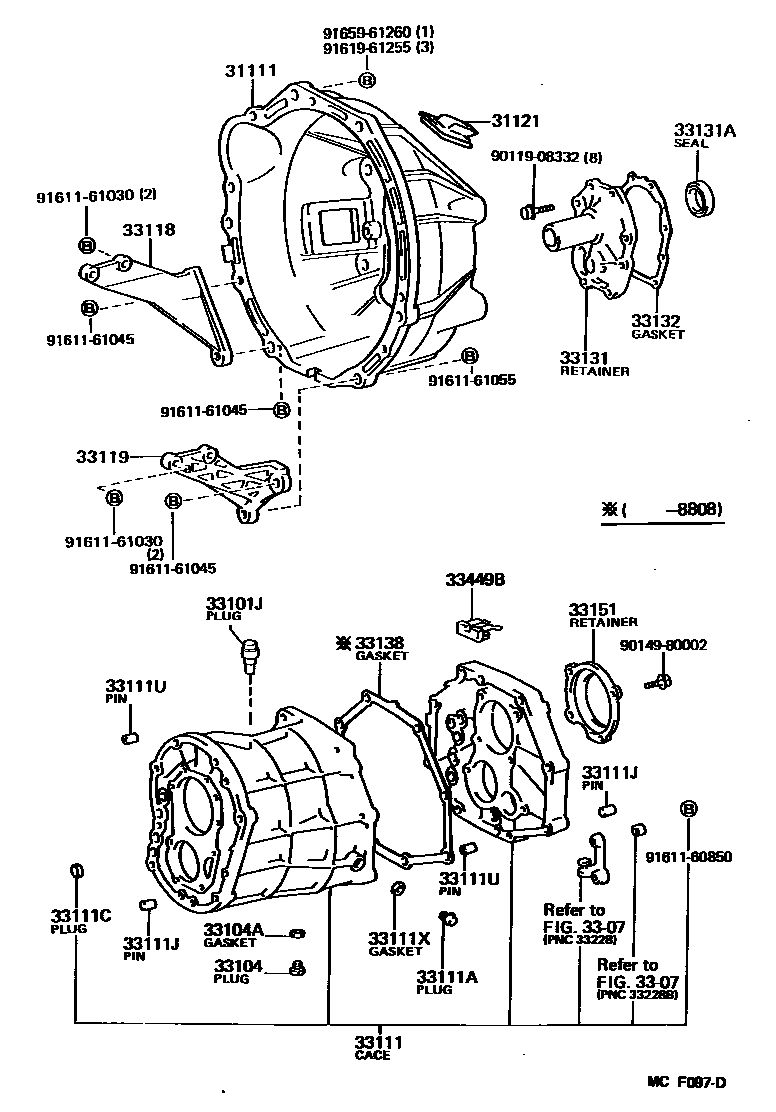

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1 0002 1

31111HOUSING, CLUTCH

main31111-22111iLH80..5F198708-198808

sub31111-22112

main31111-22112iLH80..5F198808-198912

sub31111-22113

main31111-22113iLH80..5F198912-199006

sub31111-22114

main31111-22114iLH80..5F199006-199505

main31111-30190iYH81198708-199505

31121COVER, CLUTCH HOUSING, NO.1

main31121-30040iYH81198708-199309

sub31121-35020

main31121-35020iYH81199309-199505

3307

33101JPLUG, BREATHER

main90930-03085iLH80,YH81..5F198708-199505

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iLH80,YH81199503-199505

main90341-18057iLH80,YH81..5F198708-199503

main90341-18057iLH80..GEN..IV199503-199505

MALAYSIA SPEC

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iLH80,YH81..5F198708-199505

33111CASE, MANUAL TRANSMISSION

main33101-28020iLH80,YH81..5F198708-199505

sub33101-35060

sub90341-18032

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18006iLH80,YH81..5F198708-199505

33111CPLUG(FOR TRANSMISSION CASE)

main90331-14004iLH80,YH81..5F198708-199505

OD=14

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-12002iLH80,YH81..5F198708-199505

L=16,OD=12

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-11001iLH80,YH81..5F198708-199505

L=11,OD=11

main90253-15001iLH80,YH81..5F198708-199505

L=14,OD=15

33111XGASKET, TRANSMISSION CASE PLUG

main90430-18008iLH80,YH81..5F198708-199505

33118PLATE, STIFFENER, RH(MTM)

main33118-25020iLH80..5F198708-199505

main33118-36031iYH81198708-199505

33119PLATE, STIFFENER, LH(MTM)

main33119-25020iLH80..5F198708-199505

main33119-36030iYH81198708-199505

33131RETAINER, BEARING, FRONT(MTM)

main33131-26020iLH80,YH81..5F198708-199505

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30010iLH80,YH81..5F198808-199007

sub90311-30014

main90311-30014iLH80,YH81..5F199007-199505

main90311-30115iLH80,YH81..5F198708-198808

33132GASKET, FRONT BEARING RETAINER(MTM)

main33132-28010iLH80,YH81..5F198708-199505

33138GASKET, INTERMEDIATE PLATE

main33138-28010iLH80,YH81..5F198708-198808

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33151-28010iLH80,YH81..5F198708-198808

main33151-35030iLH80,YH81..5F198808-199505

33449BMAGNET, TRANSMISSION

main33449-26010iLH80,YH81..5F198908-199505

9011908332

main90119-08332

9014980002

main90149-80002

9161160850

main91611-60850

9161161030

main91611-61030

9161161045

main91611-61045

9161161055

main91611-61055

9161961255

main91619-61255

9165961260

main91659-61260

28 parts on this diagram · 2 diagrams in section
