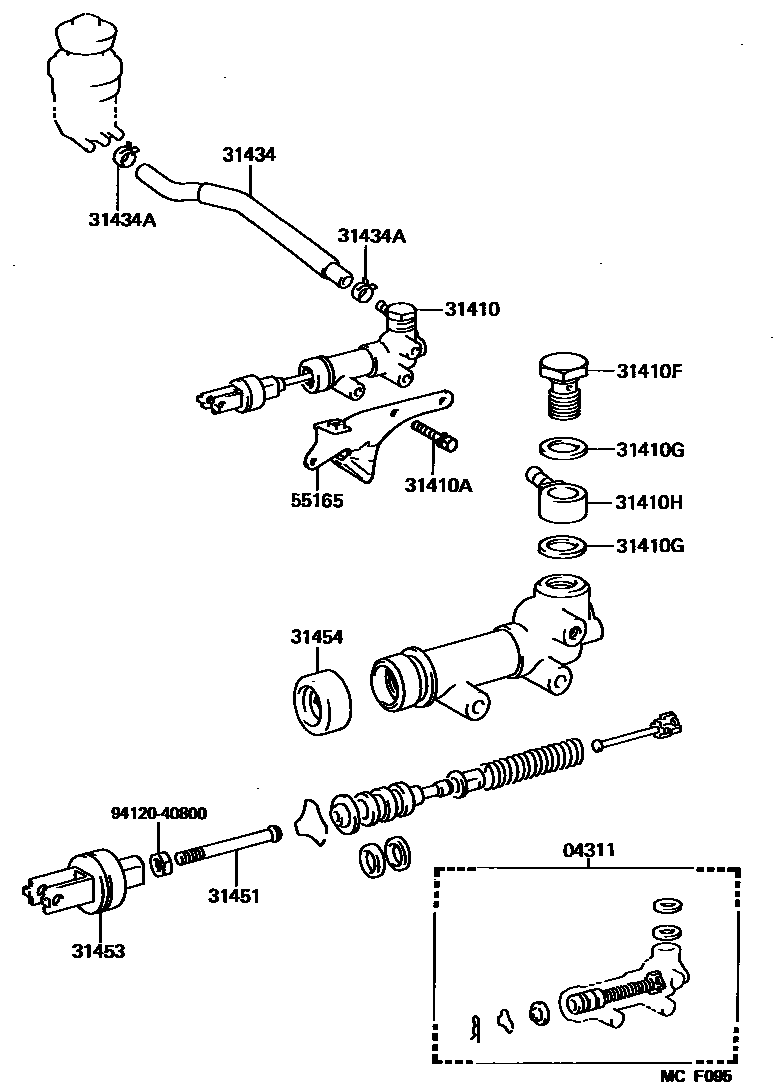

CLUTCH MASTER CYLINDER

0001 1 0002 1

04311CYLINDER KIT, CLUTCH MASTER

main04311-26033iLH80,YH81..5F198708-198808

sub04311-26035

main04311-35051iLH80,YH81..5F198808-199108

sub04311-35052

main04311-35052iLH80,YH81..5F199108-199505

31410CYLINDER ASSY, CLUTCH MASTER

main31420-26141iLH80,YH81..5F198708-198710

sub31420-26142

main31420-26142iLH80,YH81..5F198710-198808

main31420-26160iLH80,YH81..5F198808-199505

sub31420-37040

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main91611-60865iLH80,YH81..5F198708-199505

31410FBOLT, UNION(FOR CLUTCH MASTER CYLINDER)

main90401-16078iLH80,YH81..5F198708-198808

31410GGASKET(FOR CLUTCH MASTER CYLINDER UNION)

main90430-16242iLH80,YH81..5F198708-198808

31410HUNION(FOR CLUTCH MASTER CYLINDER)

main90405-10125iLH80,YH81..5F198708-198808

31434TUBE, CLUTCH RESERVOIR

main31434-26130iLH80,YH81..RHD..5F198708-198808

main31434-26170iLH80,YH81..RHD..5F198808-199505

main31434-36100iLH80,YH81..LHD198708-198808

main31434-36200iLH80,YH81..LHD198808-199505

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main96132-30800iLH80,YH81..5F198708-199505

sub96132-51300

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-22070iLH80,YH81..5F198708-198808

main31451-36040iLH80,YH81..5F198808-199505

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-28011iLH80,YH81..5F198708-198808

sub31404-28012

main31404-35020iLH80,YH81..5F198808-198904

sub31404-35021

main31404-35021iLH80,YH81..5F198904-199505

sub31404-35030

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iLH80,YH81..5F198708-199505

55165SUPPORT, CLUTCH MASTER CYLINDER

main55165-95401iYH81;LH80..5F..T3;LH80..TW..CBU198708-199505

9412040800

main94120-40800

13 parts on this diagram · 2 diagrams in section
