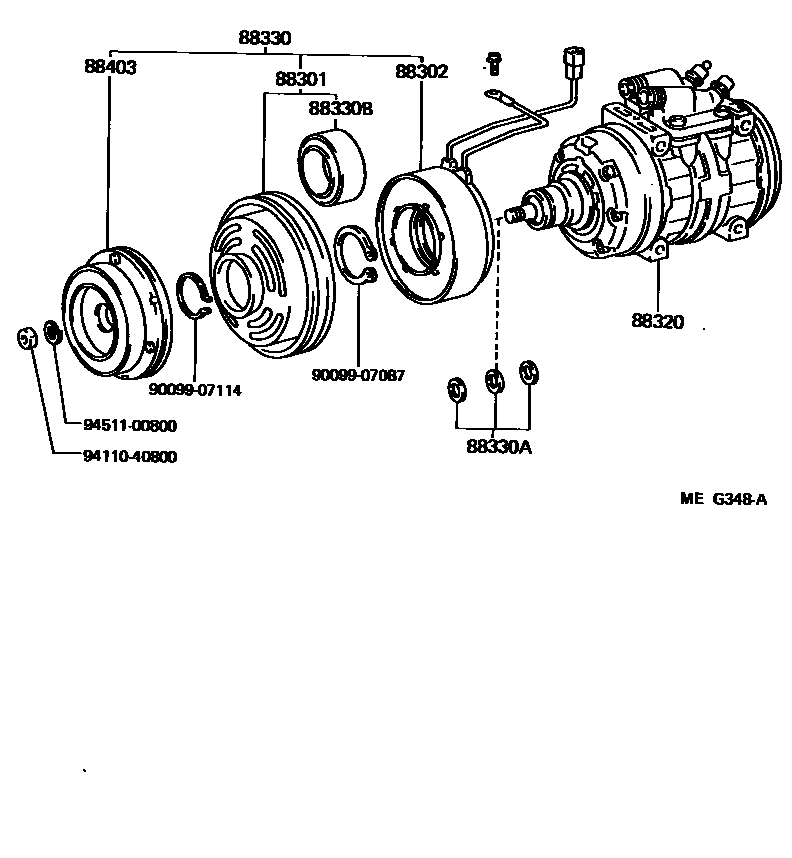

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-22030iLH80,YH8#..ARL,GEN198508-198708

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-14050iLH80,YH8#..ARL,GEN198508-198708

88320COMPRESSOR ASSY, COOLER

main88320-26210iYH8#..ARL,GEN198508-198708

main88320-26230iLH80..ARL,GEN198508-198708

88330CLUTCH ASSY, MAGNET

main88410-22080iLH80,YH8#..ARL,GEN198508-198708

sub88410-60140

88330AWASHER (FOR MAGNET CLUTCH)

main88335-12050iLH80,YH8#..ARL,GEN198508-198708

88330BBEARING, MAGNET CLUTCH

main90099-10162iLH80,YH8#..ARL,GEN198508-198708

sub90099-10133

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-12030iLH80,YH8#..ARL,GEN198508-198708

9009907087

main90099-07087

9009907114

main90099-07114

9411040800

main94110-40800

9451100800

main94511-00800

11 parts on this diagram · 3 diagrams in section
