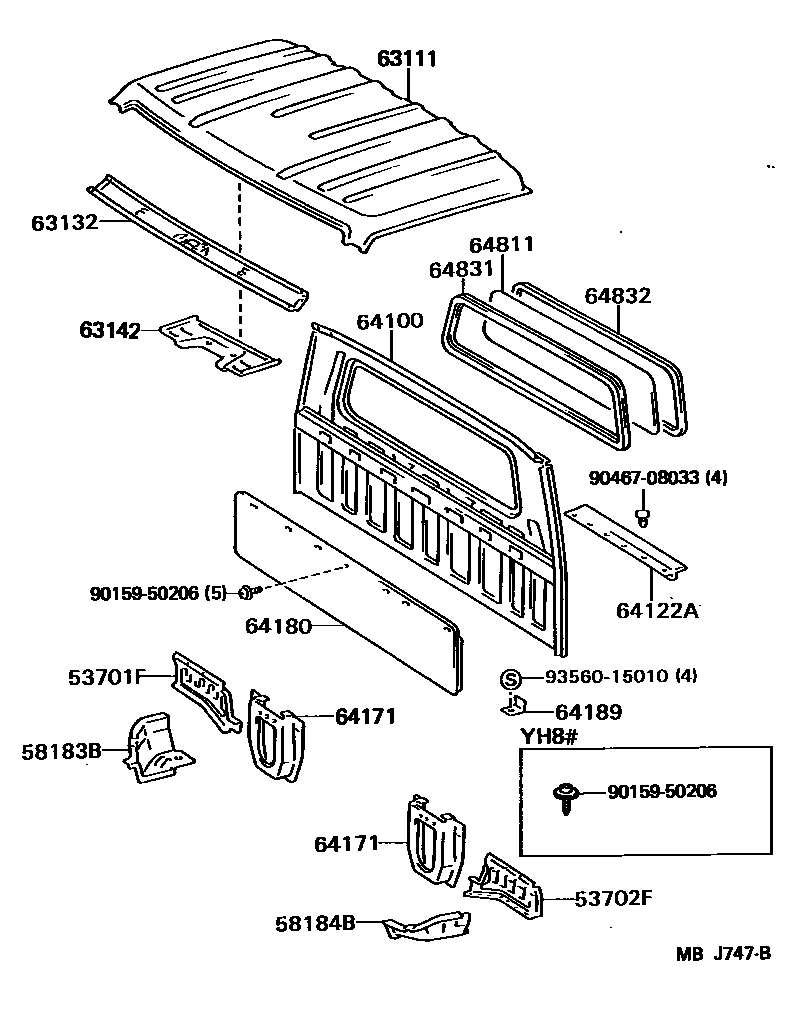

ROOF PANEL & BACK PANEL
53701FAPRON SUB-ASSY, FRONT FENDER, NO.2 RH
53702FAPRON SUB-ASSY, FRONT FENDER, NO.2 LH
58183BREINFORCEMENT, REAR MOUNTING, RH
sub58183-95405
58184BREINFORCEMENT, REAR MOUNTING, LH
sub58184-95404
63111PANEL, ROOF
W/ROOF VENTILATOR
63132PANEL, WINDSHIELD HEADER, INNER
sub63132-37010
63142REINFORCEMENT, ROOF PANEL, NO.2
64122ABAFFLE, DUST REAR BODY
64171BRACKET, CAB REAR MOUNTING
64180SILENCER ASSY, BACK PANEL
64189CLAMP, BACK PANEL SILENCER
64811GLASS, BACK WINDOW
*TEM,T=3.5,*TEM,T=3.5
9015950206
main90159-50206
9046708033
main90467-08033
9356015010
main93560-15010
18 parts on this diagram · 2 diagrams in section
