FLOOR MAT & SILENCER PAD

55211SILENCER, FRONT PANEL

main55211-95404iLH80,YH81..EUR198508-198708

55213APAD, DASH PANEL SILENCER

main55213-95400iLH80,YH8#198508-198708

UPR

main55213-95401iLH80,YH8#198508-198708

LWR

58505AMAT SUB-ASSY, HEADER

main58504-95021-03iLH80,YH81..TW..(ARL,EUR)198508-198708

GRAY,SHADOW GRAY

58509BMAT SUB-ASSY, SEAT FLOOR

main58509-95015-03iLH80,YH81..ARL..IV198508-198708

GRAY,SHADOW GRAY

main58509-95019-03iLH80,YH81..T3..EUR198508-198708

GRAY,SHADOW GRAY

main58509-95023-03iYH81..ARL..CBU198508-198708

GRAY,SHADOW GRAY

main58509-95A04-03iLH80,YH81..TW..EUR198508-198708

GRAY,SHADOW GRAY

58510BMAT, FRONT FLOOR, FRONT

main58510-95037-03iLH80,YH81..EUR198508-198708

GRAY,SHADOW GRAY

main58510-95040-03iLH80..EUR..IV198508-198708

FINLAND SPEC,GRAY,SHADOW GRAY

main58510-95042-03iLH80,YH81..ARL198508-198708

GRAY,SHADOW GRAY

main58510-95A01-03iLH80,YH80..RHD..GEN198508-198708

GRAY,SHADOW GRAY

main58510-95A02-03iLH80,YH80..LHD..GEN198508-198708

GRAY,SHADOW GRAY

58513CMAT, FLOOR, FRONT CENTER

main58513-95010-03iLH80,YH80..RHD..GEN198508-198708

GRAY,SHADOW GRAY

main58513-95011-03iLH80,YH80..LHD..GEN198508-198708

GRAY,SHADOW GRAY

58520FMAT ASSY, ENGINE COVER

main58520-95013-03iLH80,YH81..EUR198508-198708

GRAY,SHADOW GRAY

main58520-95014-03iLH80,YH81..ARL198508-198708

GRAY,SHADOW GRAY

58521HOOK, MALE, NO.1

main90530-04007iLH80,YH81..TW..(ARL,EUR)198508-198708

SCREW TYPE

main90530-06001iLH80,YH8#198508-198708

CLIP TYPE

58540AMAT ASSY, FRONT FLOOR, REAR NO.1

main58540-95011-03iLH80,YH81..EUR198508-198708

GRAY,SHADOW GRAY

main58540-95013-03iLH80,YH81..5F..ARL198508-198708

GRAY,SHADOW GRAY

main58540-95A17-03iLH80..4FC198508-198708

GRAY,SHADOW GRAY

58570BMAT ASSY, REAR FLOOR

main58581-92605-03iLH80,YH8#..TW198508-198708

GRAY,GRAY

58597PLATE, SEAT TRACK SET

main58597-95400iLH80,YH80..GEN198508-198708

58614APLATE, MAT SET, NO.4

main58614-95A01-03iLH80,YH81..TW..(ARL,EUR)198508-198708

GRAY,SHADOW GRAY

9015940041

main90159-40041

9018904013

main90189-04013

9053004005

main90530-04005

9095001332

main90950-01332

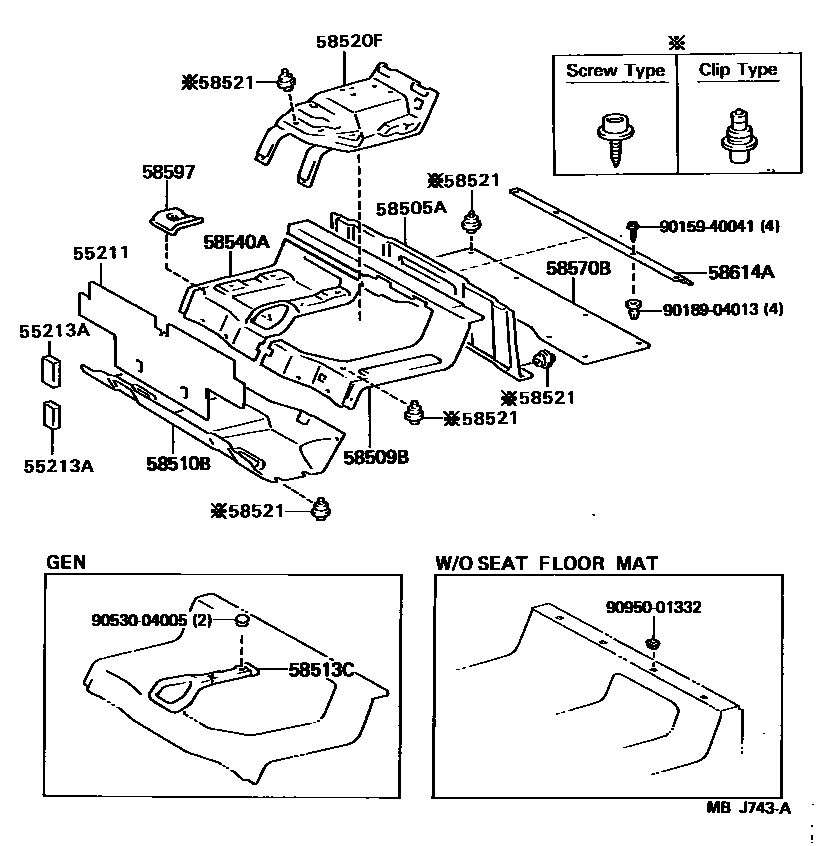

16 parts on this diagram · 1 diagram in section
