691240
›

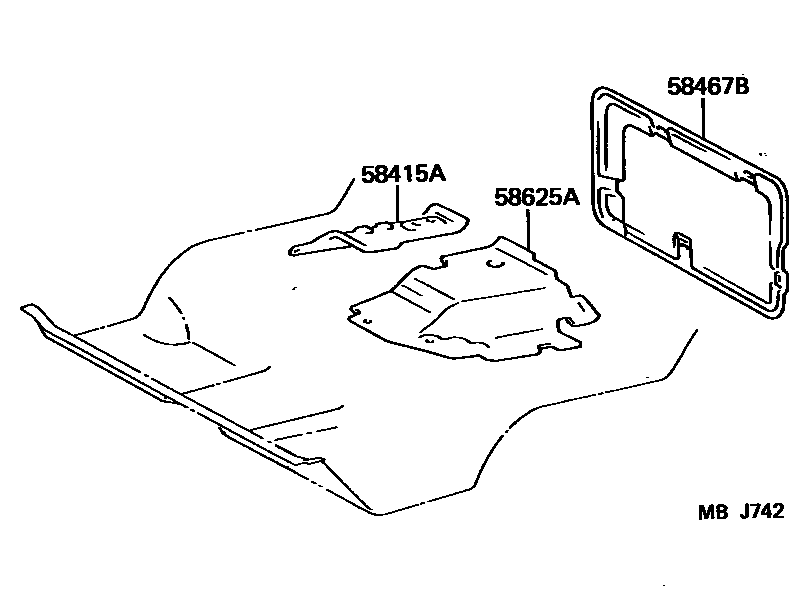

FLOOR INSULATOR
FLOOR INSULATOR
58415A
INSULATOR, SUB-COVER
main
59268-95401
i
LH80,YH8#..LHD
198508-198608
main
59268-95403
i
LH80,YH8#..LHD
198608-198708
main
59268-95A00
i
LH80,YH8#..RHD
198508-198708
sub
59268-95010
58467B
INSULATOR, MISSION SERVICE HOLE COVER
main
58327-92601
i
LH80,YH8#..TW
198508-198708
sub
58327-37020
58625A
INSULATOR, ENGINE SERVICE MAIN HOLE COVER
main
59258-95401
i
LH80,YH8#..LHD
198508-198708
main
59258-95A00
i
LH80,YH8#..RHD
198508-198708
sub
59258-95010
3 parts on this diagram · 1 diagram in section
