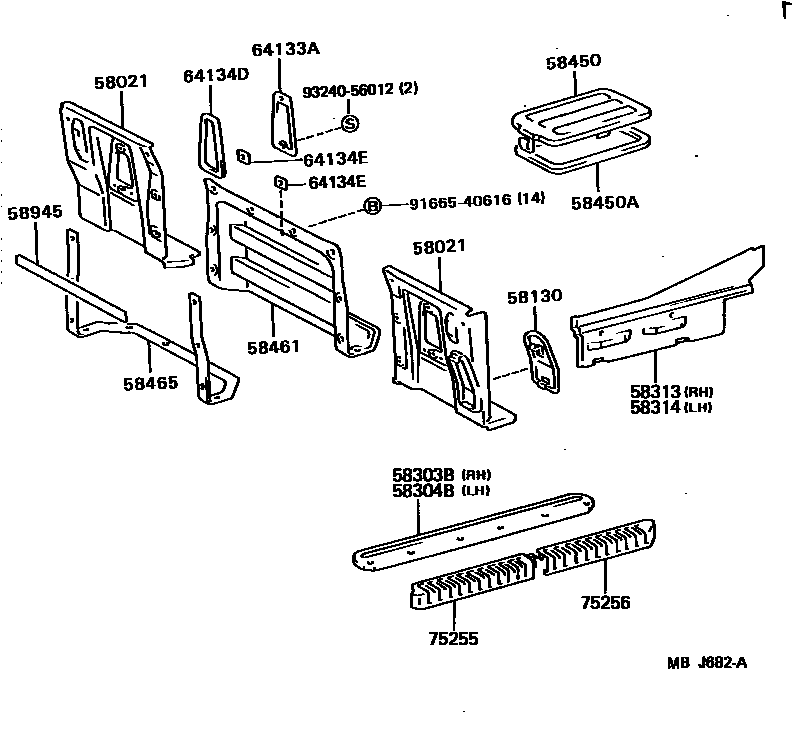

REAR FLOOR PANEL & REAR FLOOR MEMBER

58021PANEL SUB-ASSY, HEADER

main58021-95A65iLH80,YH8#..TW¥11,500198508-198708

RH

main58022-95A09iLH80,YH8#..TW198508-198708

LH

58130COVER ASSY, RESERVE TANK SERVICE HOLE

main58130-92600iLH80,YH8#..TW¥3,440198508-198708

58303BSTEP SUB-ASSY, REAR FLOOR, RH

main58303-95400iLH80,YH8#..TW¥5,400198508-198708

58304BSTEP SUB-ASSY, REAR FLOOR, LH

main58303-95400iLH80,YH8#..TW¥5,400198508-198708

58313PANEL, REAR FLOOR SIDE, RH

main58313-95A04iLH80,YH8#..TW198508-198708

58314PANEL, REAR FLOOR SIDE, LH

main58314-95A03iLH80,YH8#..TW198508-198708

58450COVER ASSY, BATTERY SERVICE HOLE

main65305-95A03iLH80,YH8#..TW¥6,300198508-198708

58450APACKING, BATTERY SERVICE HOLE COVER

main65352-95A02iLH80,YH8#..TW¥740198508-198708

58461COVER, TRANSMISSION SERVICE HOLE

main58207-92604iLH80,YH80..TW..GEN¥18,000198508-198708

main58207-92605iLH80,YH81..TW..(ARL,EUR)¥18,000198508-198708

sub58207-37020¥18,000

58465PACKING, TRANSMISSION SERVICE HOLE COVER, NO.1

main58465-92601iLH80,YH8#..TW¥2,640198508-198708

58945PACKING, TRANSMISSION SERVICE HOLE COVER

main58265-92601iLH80,YH8#..TW¥480198508-198708

64133ACOVER, HEADER PANEL

main64133-95400iLH80,YH8#..TW¥990198508-198708

64134DPACKING, HEADER PANEL COVER

main64134-95400iLH80,YH8#..TW¥240198508-198708

64134ESEAL, HEADER PANEL COVER

main64138-95400iLH80,YH8#..TW¥200198508-198708

75255COVER, STEP PLATE REAR, NO.1

main75253-95401iLH80,YH8#..TW¥2,370198508-198708

75256COVER, STEP PLATE REAR, NO.2

main75254-95400iLH80,YH8#..TW¥2,370198508-198708

9166540616

main91665-40616¥70

9324056012

main93240-56012¥120

18 parts on this diagram · 1 diagram in section
