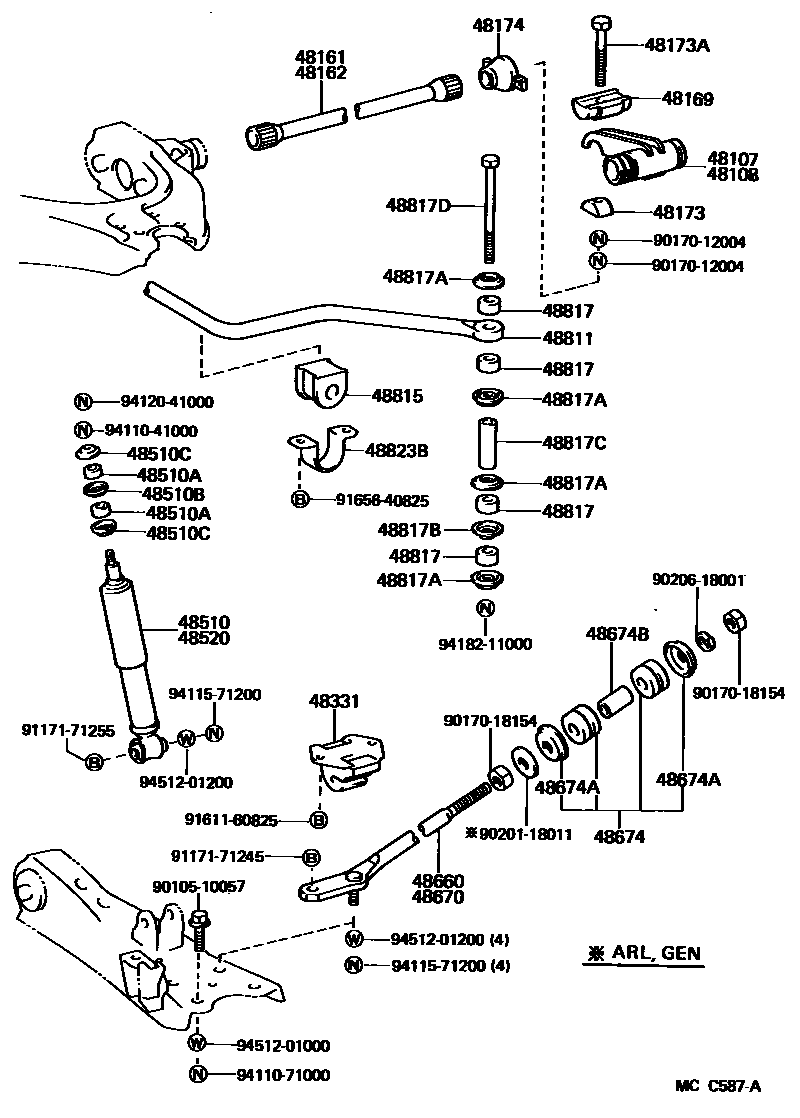

FRONT SPRING & SHOCK ABSORBER
48107ARM SUB-ASSY, ANCHOR, RH
48108ARM SUB-ASSY, ANCHOR, LH
48161SPRING, TORSION BAR, RH
48162SPRING, TORSION BAR, LH
48169SWIVEL, ANCHOR ARM
48173SEAT, ANCHOR ARM ADJUSTER
48173ABOLT, HEXAGON(FOR ANCHOR ARM ADJUSTING)
48174COVER, TORSION BAR DUST
48331BUMPER, FRONT SPRING, NO.1
48510ACUSHION, FRONT SHOCK ABSORBER
48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
48660BAR ASSY, STRUT, RH
48670BAR ASSY, STRUT, LH
48674CUSHION, STRUT BAR
48674ARETAINER, CUSHION(FOR STRUT BAR CUSHION)
48674BCOLLAR(FOR STRUT BAR CUSHION)
48811BAR, STABILIZER, FRONT
48815BUSH, FRONT STABILIZER BAR, NO.1
48817CUSHION, FRONT STABILIZER
48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)
48817CCOLLAR(FOR STABILIZER BAR)
48817DBOLT(FOR FRONT STABILIZER)
48823BCOVER, FRONT STABILIZER BRACKET
sub48823-26120
9010510057
main90105-10057
9017012004
main90170-12004
9017018154
main90170-18154
9020118011
main90201-18011
9020618001
main90206-18001
9117171245
main91171-71245
9117171255
main91171-71255
9161160825
main91611-60825
9165640825
main91656-40825
9411041000
main94110-41000
9411071000
main94110-71000
9411571200
main94115-71200
9412041000
main94120-41000
9418211000
main94182-11000
9451201000
main94512-01000
9451201200
main94512-01200
43 parts on this diagram · 1 diagram in section
