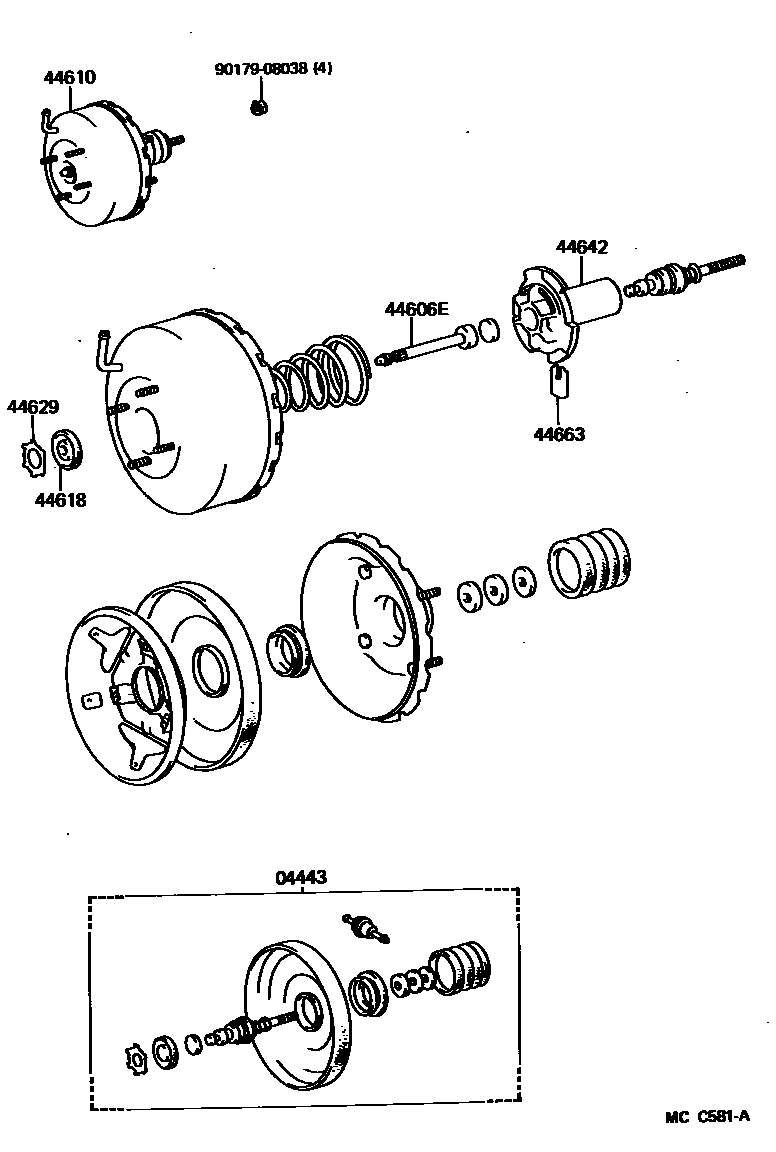

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1

04443BOOSTER KIT, BRAKE

main04443-26260iYH8#¥11,400198508-198708

FR DISC BRAKE

main04443-26270iLH80¥7,200198508-198708

FR DISC BRAKE

main04443-26280iYH80¥10,200198508-198708

FR DRUM BRAKE

main04443-26290iLH80..GEN¥10,200198508-198708

FR DRUM BRAKE

main04443-26310iYH80¥11,400198508-198708

FR DRUM BRAKE,W/LSPV

main04443-26320iLH80..GEN¥11,400198508-198708

FR DRUM BRAKE,W/LSPV

44606EROD SUB-ASSY, BRAKE BOOSTER PISTON

main44606-12520iLH80,YH8#¥2,660198508-198708

44610BOOSTER ASSY, BRAKE

main44610-26280iLH80,YH8#..RHD¥45,700198508-198708

9INCH

main44610-26290iLH80,YH8#..LHD¥45,700198508-198708

9INCH

main44610-26300iLH80,YH80..RHD..GEN¥42,100198508-198708

8INCH

main44610-26310iLH80,YH80..LHD..GEN¥42,100198508-198708

8INCH

main44610-26320iLH80,YH80..RHD..GEN¥45,700198508-198708

9INCH,W/LSPV

main44610-26340iLH80,YH80..LHD..GEN¥45,700198508-198708

9INCH,W/LSPV

44618SEAL, BOOSTER BODY

main44621-28120iLH80,YH8#¥590198508-198708

44629RING, CIRCULAR INTERNAL

main44628-28120iLH80,YH8#¥390198508-198708

44642PISTON, BRAKE BOOSTER

main44642-16050iLH80,YH80..GEN¥3,820198508-198708

9INCH,W/LSPV

main44642-27150iLH80,YH80..GEN¥5,900198508-198708

8INCH

main44642-32010iLH80,YH8#¥6,100198508-198708

9INCH

44663KEY, VALVE STOPPER

main44635-28120iLH80,YH8#¥370198508-198708

9017908038

main90179-08038¥130

8 parts on this diagram · 5 diagrams in section
