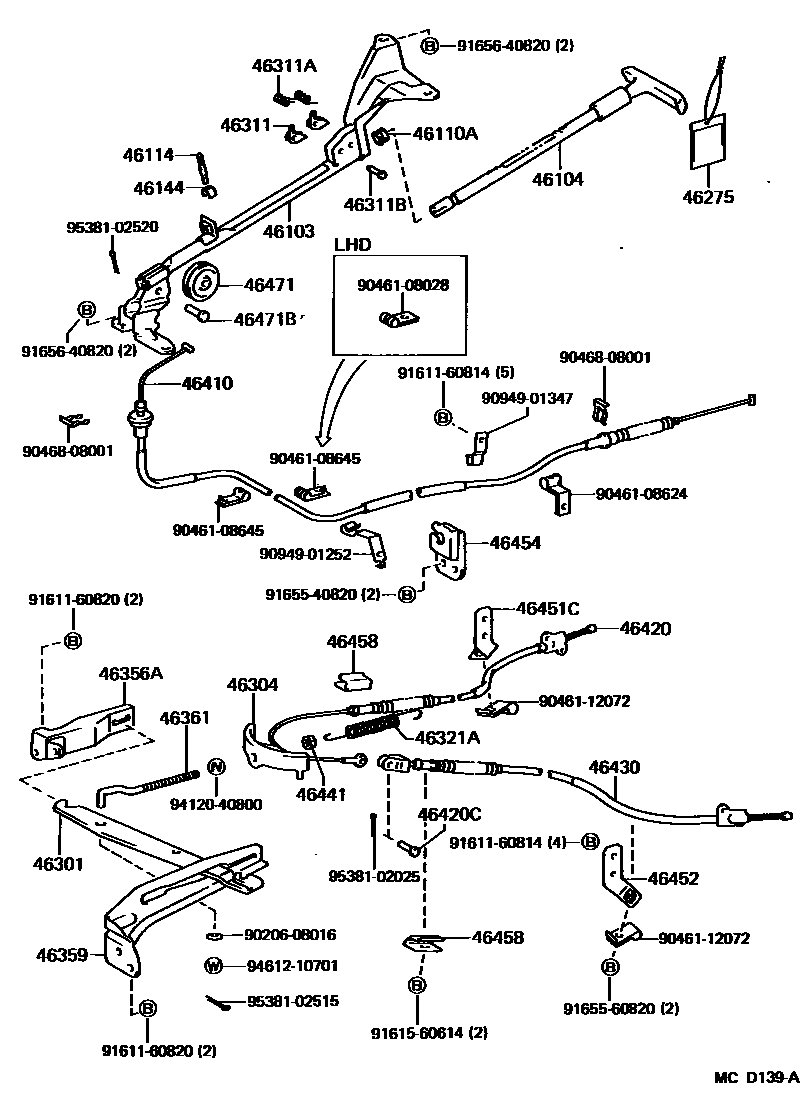

PARKING BRAKE & CABLE

46103GUIDE SUB-ASSY, PARKING BRAKE PLUNGER

main46103-26120iLH80,YH8#..RHD198508-198708

main46103-26130iLH80,YH8#..LHD198508-198708

46104HANDLE SUB-ASSY, PARKING BRAKE CONTROL

main46104-26080iLH80,YH8#..RHD198508-198708

main46104-26090iLH80,YH8#..LHD198508-198708

46110ABUSH OR RING, O (FOR PARKING BRAKE PLUNGER)

main90386-12048iLH80,YH8#198508-198708

46114PIN, PARKING BRAKE PLUNGER

main46114-20010iLH80,YH8#198508-198708

46144ANTI-RATTLE, PARKING BRAKE PLUNGER

main46144-20010iLH80,YH8#198508-198708

46275PLATE, PARKING BRAKE RELEASE CAUTION

main46275-26010iLH80,YH8#198508-198708

46301LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

main46321-26011iLH80,YH8#198508-198708

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46341-26010iLH80,YH8#198508-198708

46311PAWL, PARKING BRAKE

main46311-26010iLH80,YH8#198508-198708

46311ASPRING(FOR PARKING BRAKE PAWL)

main90508-08106iLH80,YH8#198508-198708

46311BPIN, PARKING BRAKE PAWL PIVOT

main46313-40010iLH80,YH8#198508-198708

46321ASPRING, TENSIION(FOR PARKING BRAKE INTERMEDIATE LEVER)

main90507-20015iLH80,YH8#198508-198708

46356ABRACKET, INTERMEDIATE LEVER(FOR PARKING BRAKE)

main46356-26080iLH80,YH8#198508-198708

46359GUIDE, PARKING BRAKE INTERMEDIATE LEVER

main46359-26060iLH80,YH8#198508-198708

46361ROD, PARKING BRAKE PULL

main46361-26020iLH80,YH8#198508-198708

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-26240iLH80,YH8#..RHD198508-198708

main46410-26260iLH80,YH8#..LHD198508-198708

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-26140iLH80,YH8#198508-198708

46420CPIN, W/HOLE(FOR PARKING BRAKE CABLE)

main90240-06032iLH80,YH8#198508-198708

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-26140iLH80,YH8#198508-198708

46441NUT, WIRE ADJUSTING, NO.1

main90179-08020iLH80,YH8#198508-198708

46451CBRACKET, PARKING BRAKE CABLE SUPPORT, NO.1

main46451-26050iLH80,YH8#198508-198708

46452BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2

main46452-26020iLH80,YH8#198508-198708

46454BRACKET, CABLE RETAINER, FRONT

main46454-26040iLH80,YH8#198508-198708

46458RETAINER, CABLE

main46458-28010iLH80,YH8#198508-198708

46471PULLEY, WIRE

main46471-20010iLH80,YH8#198508-198708

46471BPIN, W/HOLE(FOR WIRE PULLEY SET)

main90240-08017iLH80,YH8#198508-198708

9020608016

main90206-08016

9046108028

main90461-08028

9046108624

main90461-08624

9046108645

main90461-08645

9046112072

main90461-12072

9046808001

main90468-08001

9094901252

main90949-01252

9094901347

main90949-01347

9161160814

main91611-60814

9161160820

main91611-60820

9161560614

main91615-60614

9165540820

main91655-40820

9165560820

main91655-60820

9165640820

main91656-40820

9412040800

main94120-40800

9461210701

main94612-10701

9538102025

main95381-02025

9538102515

main95381-02515

9538102520

main95381-02520

45 parts on this diagram · 1 diagram in section
