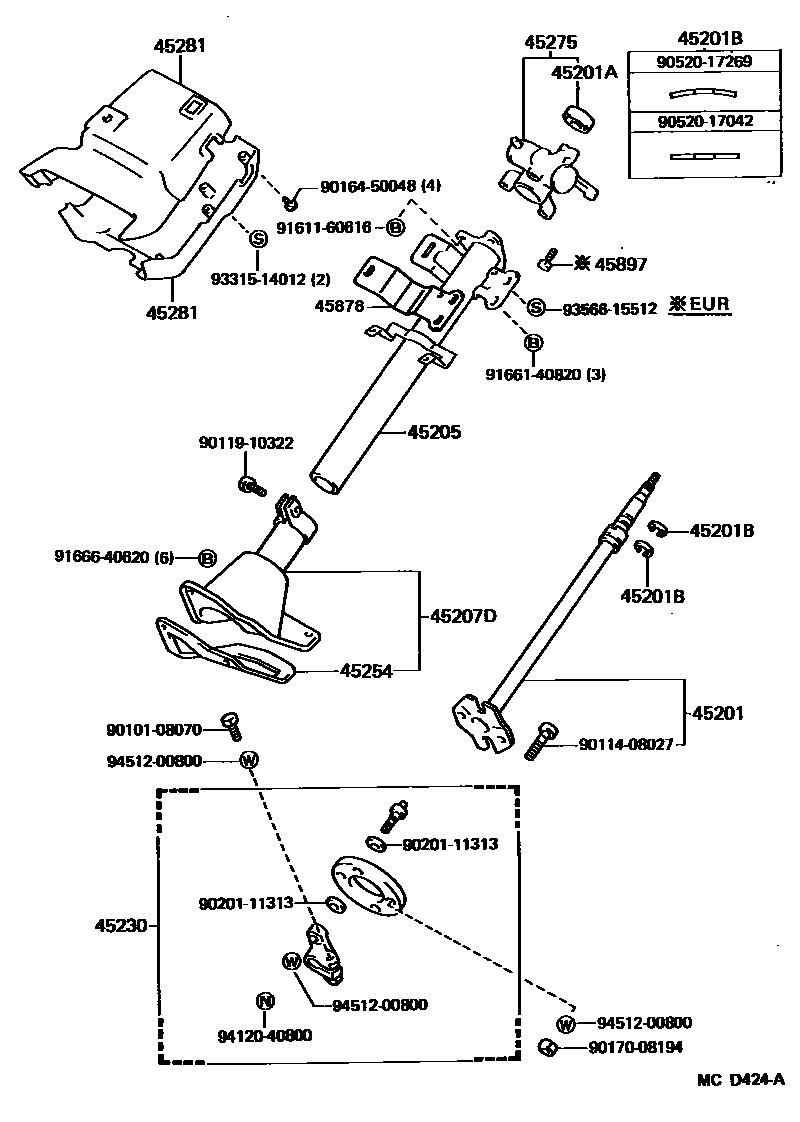

STEERING COLUMN & SHAFT
45201SHAFT SUB-ASSY, STEERING MAIN
45201ABEARING(FOR STEERING MAIN SHAFT)
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
T=1.20,UPR
T=1.20,LWR
45205TUBE SUB-ASSY, STEERING COLUMN
45254SHIELD, STEERING COLUMN HOLE
45275BRACKET, STEERING COLUMN, UPPER
45281HOUSING, STEERING COLUMN
UPR,GRAY,SHADOW GRAY
LWR,GRAY,SHADOW GRAY
45878BRACKET, STEERING COLUMN UPPER SUPPORT
45897BOLT, STEERING LOCK SET
9010108070
main90101-08070
9011408027
main90114-08027
9011910322
main90119-10322
9016450048
main90164-50048
9017008194
main90170-08194
9020111313
main90201-11313
9052017042
main90520-17042
9052017269
main90520-17269
9161160616
main91611-60616
9166140820
main91661-40820
9166640620
main91666-40620
9331514012
main93315-14012
9356615512
main93566-15512
9412040800
main94120-40800
9451200800
main94512-00800
26 parts on this diagram · 1 diagram in section
