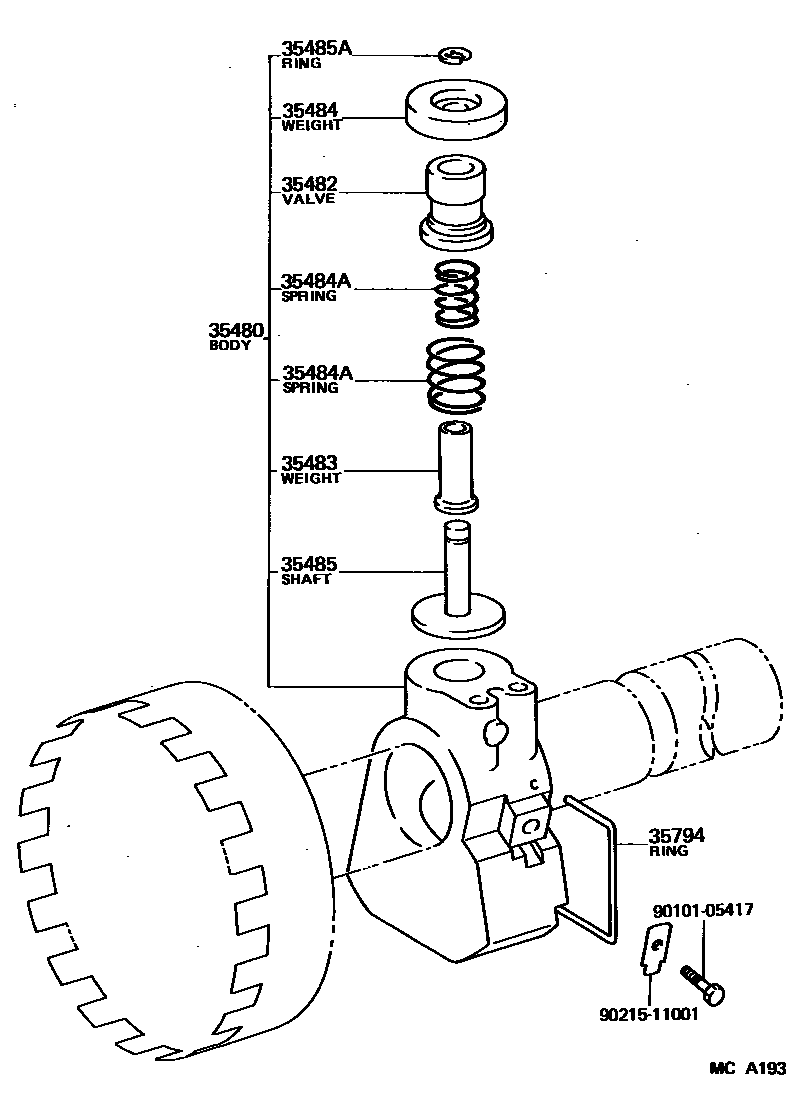

REAR OIL PUMP & GOVERNOR (ATM)

35480GOVERNOR

main35480-26030iLH80..4FC198508-198708

35482VALVE, GOVERNOR

main35482-28010iLH80..4FC198508-198708

35483WEIGHT, GOVERNOR, INNER

main35483-14010iLH80..4FC198508-198708

35484WEIGHT, GOVERNOR, OUTER

main35484-22010iLH80..4FC198508-198708

35484ASPRING, COMPRESSION (FOR GOVERNOR WEIGHT)

main90501-07033iLH80..4FC198508-198708

OUTER

main90501-08059iLH80..4FC198508-198708

INNER

35485SHAFT, GOVERNOR VALVE

main35485-14010iLH80..4FC198508-198708

35485ARING, E (FOR GOVERNOR VALVE SHAFT)

main90523-05020iLH80..4FC198508-198708

35794RING, GOVERNOR RETAINING

main35794-22010iLH80..4FC198508-198708

9010105417

main90101-05417

9021511001

main90215-11001

10 parts on this diagram · 1 diagram in section
