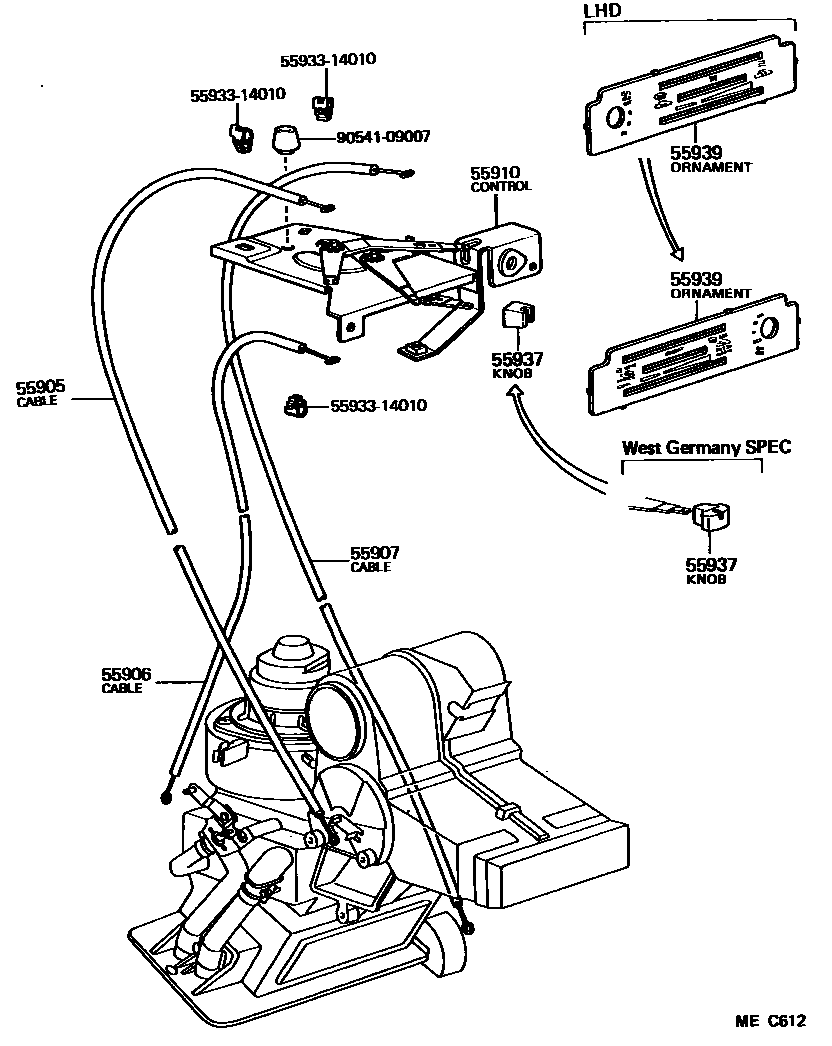

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1

55905CABLE SUB-ASSY, DEFROST CONTROL

main55905-95A00iLH11,RH11..RHD..(ARL,EUR,GEN)198211-198507

main55905-95A01iLH11,RH11..LHD198211-198507

55906CABLE SUB-ASSY, HEATER CONTROL

main55907-95A02iLH11,RH11..RHD..(ARL,EUR,GEN)198211-198507

main55907-95A03iLH11,RH11..LHD198211-198507

55907CABLE SUB-ASSY, HEATER AIR INLET BUTTERFLY

main55906-95A00iLH11,RH11..ARL,EUR,GEN198211-198507

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55902-95A02iLH11,RH11..RHD..(ARL,EUR,GEN)198211-198507

main55902-95A03iLH11,RH11..LHD198211-198507

main55902-95A04iLH11,RH11..RHD..GEN198211-198507

W/BOOST VENTILATOR

main55902-95A05iLH11,RH11..LHD..GEN198211-198507

W/BOOST VENTILATOR

55937KNOB, HEATER CONTROL LEVER

main55905-12070iLH11,RH11..ARL,EUR,GEN198211-198507

main55905-30090iLH11,RH11..LHD..EUR..IV198211-198507

*FRG

55939ORNAMENT, HEATER CONTROL

main55519-95A00iLH11,RH11..RHD..(ARL,EUR,GEN)198211-198507

sub55519-95A02

main55519-95A01iLH11,RH11..LHD198211-198507

main55519-95A03iLH11,RH11..RHD..GEN198211-198507

W/BOOST VENTILATOR

main55519-95A04iLH11,RH11..LHD..GEN198211-198507

W/BOOST VENTILATOR

5593314010GUIDE, LEVER, NO.2

main55933-14010

9054109007

main90541-09007

8 parts on this diagram · 2 diagrams in section
