REAR COMBINATION LAMP

81550LAMP ASSY, REAR COMBINATION, RH

main81550-29925iLH11,RH11..GEN,IDN198211-198507

sub81550-95010

main81550-80072iLH11,RH11..ARL198211-198507

main81550-80123iLH11,RH11..EUR198211-198507

sub81550-95A09

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11210iLH11,RH11..ARL,EUR198211-198507

12V 21W,12V 21W

main99132-11230iLH11,RH11..GEN,IDN198211-198507

12V 23W,12V 23W

main99132-21210iLH11,RH11198211-198507

12V 21/5W,12V 21/5W

81551LENS, REAR COMBINATION LAMP, RH

main81551-25060iLH11,RH11..GEN,IDN198211-198507

main81551-26040iLH11,RH11..ARL,EUR198211-198507

sub81551-60180

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81552-25060iLH11,RH11..GEN,IDN198211-198507

main81552-26040iLH11,RH11..ARL,EUR198211-198507

81558SHADE, REAR COMBINATION LAMP, NO.1 RH

main81557-25060iLH11,RH11..GEN,IDN198211-198507

main81557-26040iLH11,RH11..ARL,EUR198211-198507

81558ASHADE, REAR COMBINATION LAMP, NO.2 RH

main81557-25060iLH11,RH11..GEN,IDN198211-198507

main81557-26040iLH11,RH11..ARL,EUR198211-198507

81560LAMP ASSY, REAR COMBINATION, LH

main81560-80019iLH11,RH11..GEN,IDN198211-198507

sub81560-95010

main81560-80074iLH11,RH11..ARL198211-198507

main81560-80127iLH11,RH11..EUR198211-198507

sub81560-95A09

81561LENS, REAR COMBINATION LAMP, LH

main81561-25040iLH11,RH11..GEN,IDN198211-198507

main81561-26040iLH11,RH11..ARL,EUR198211-198507

sub81561-60080

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81562-25040iLH11,RH11..GEN,IDN198211-198507

main81562-26040iLH11,RH11..ARL,EUR198211-198507

81568SHADE, REAR COMBINATION LAMP, NO.1 LH

main81557-25060iLH11,RH11..GEN,IDN198211-198507

main81557-26040iLH11,RH11..ARL,EUR198211-198507

81568ASHADE, REAR COMBINATION LAMP, NO.2 LH

main81557-25060iLH11,RH11..GEN,IDN198211-198507

main81557-26040iLH11,RH11..ARL,EUR198211-198507

9017905177

main90179-05177

9321964020

main93219-64020

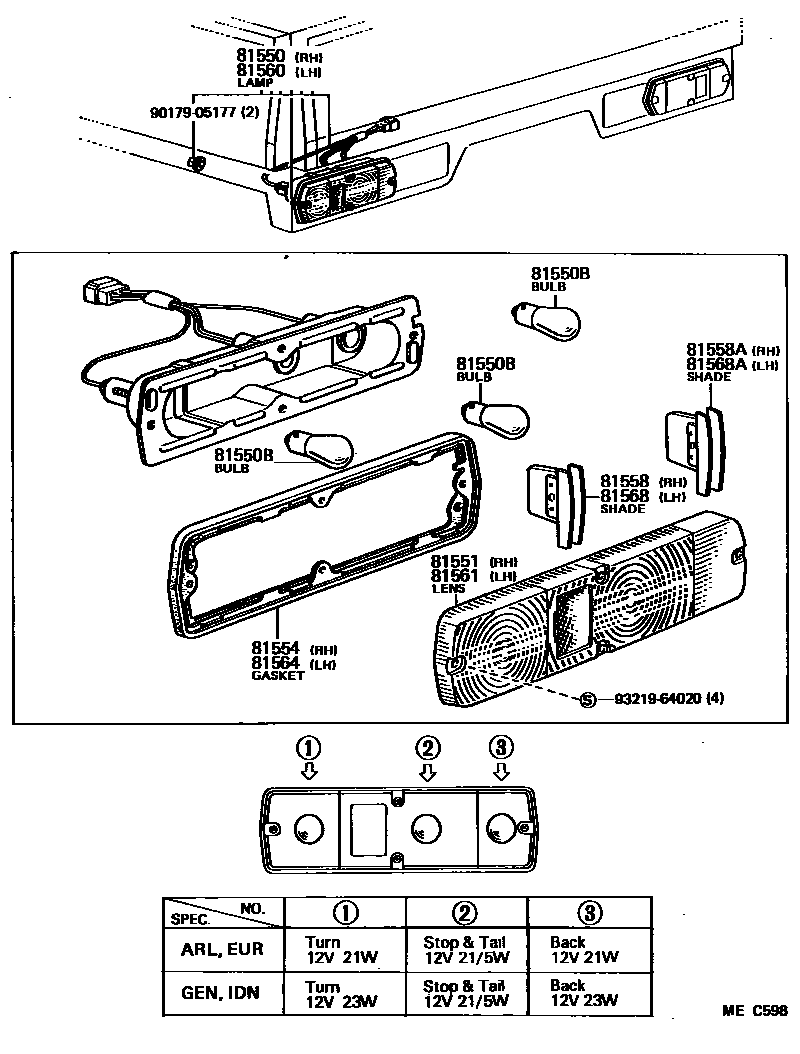

13 parts on this diagram · 1 diagram in section
