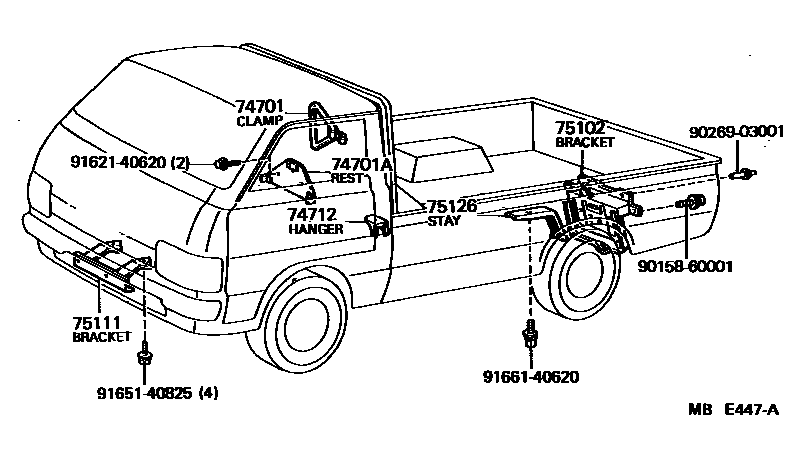

TOOL BOX & LICENSE PLATE BRACKET

74701CLAMP SUB-ASSY, TOOL BAG

main74701-95601iLH11,RH11198211-198507

sub58705-95701

74701AREST SUB-ASSY, TOOL BAG

main75203-95A02iLH11198211-198507

74712HANGER, JACK HOLDER

main74711-95A00iLH11,RH11..T1,T3198211-198507

75102BRACKET SUB-ASSY, REAR LICENSE PLATE

main66490-95016iLH11,RH11..T3..GEN198211-198507

main66490-95018iLH11,RH11..(T1,TW)..(ARL,GEN,IDN)198211-198507

main66490-95A02iLH11,RH11..T3..EUR198211-198507

main66490-95A03iLH11,RH11..(T1,TW)..EUR198211-198507

75111BRACKET, FRONT LICENSE PLATE

main52209-95A00iLH11,RH11..LHD..EUR..IV198211-198507

75126STAY, REAR LICENSE PLATE BRACKET, LOWER

main66407-95011iLH11,RH11..ARL,GEN,IDN198211-198507

main66493-95A02iLH11,RH11..T3..EUR198211-198507

main75102-95A00iLH11,RH11..(T1,TW)..EUR198211-198507

9015860001

main90158-60001

9026903001

main90269-03001

9162140620

main91621-40620

9165140825

main91651-40825

9166140620

main91661-40620

11 parts on this diagram · 1 diagram in section
