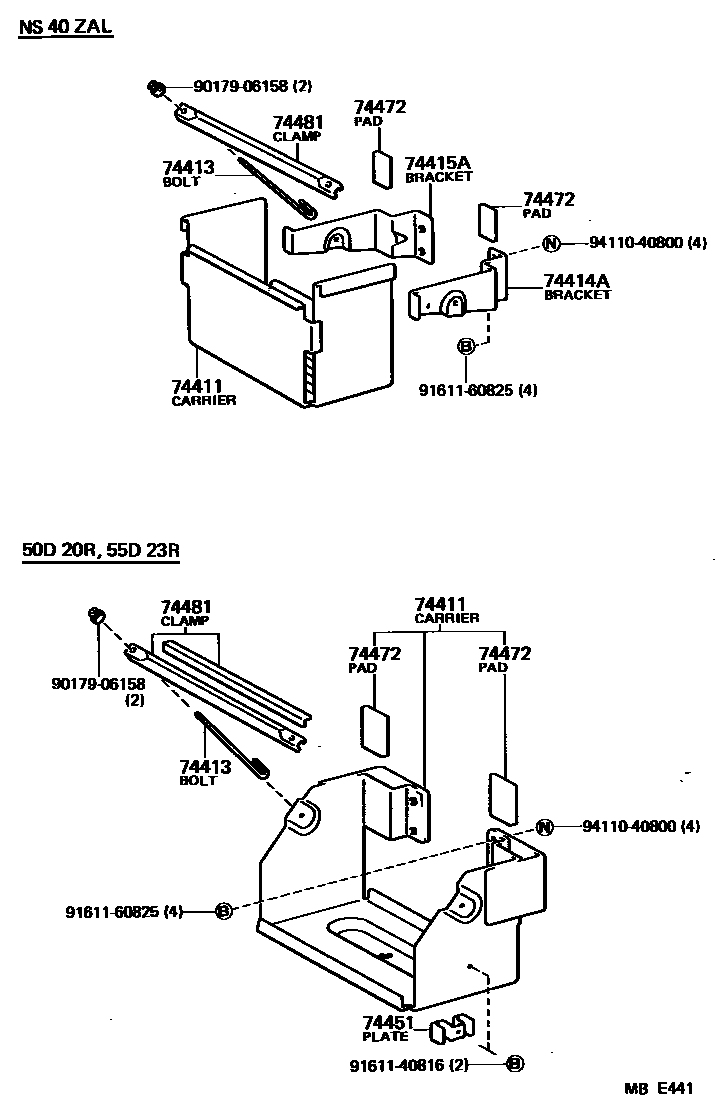

BATTERY CARRIER

0001 1 0002 1

74411CARRIER, BATTERY

main74421-25010iRH11..GEN198211-198507

NS40ZAL

main74421-25020iRH11198211-198507

50D20R,55D23R

sub74421-26020

main74421-36041iLH11..EUR198211-198507

NX200-10L

main74421-36091iLH11198211-198507

N70Z

74413BOLT, BATTERY CLAMP

main74451-25020×2iRH11198211-198507

50D20R,55D23R,NS40ZAL

main74451-36070×2iLH11198211-198507

NX200-10L,N70Z

74414ABRACKET, BATTERY, NO.1

main74401-26030iLH11198211-198507

N70Z

main74401-36012iLH11..EUR198211-198507

NX200-10L

main74411-25011iRH11..GEN198211-198507

NS40ZAL

74415ABRACKET, BATTERY, NO.2

main74402-26030iLH11198211-198507

N70Z

main74402-36012iLH11..EUR198211-198507

NX200-10L

main74412-25011iRH11..GEN198211-198507

NS40ZAL

74451PLATE, BATTERY CARRIER SUPPORT

main74451-25050×2iRH11198211-198507

50D20R

main74451-25060×2iRH11..EUR198211-198507

55D23R

74472PAD, BATTERY SIDE

main74472-25010×2iRH11..GEN198211-198507

NS40ZAL

main74472-25020×2iLH11,RH11198211-198507

50D20R,55D23R,N70Z

74481CLAMP, BATTERY HOLD DOWN

main74404-25010iRH11198211-198507

50D20R,55D23R

sub74453-25090

main74404-25021iLH11198211-198507

N70Z

main74404-36030iLH11..EUR198211-198507

NX200-10L

main74453-25020iRH11..GEN198211-198507

NS40ZAL

sub74453-25080

9017906158

main90179-06158

9161140816

main91611-40816

9161160825

main91611-60825

9411040800

main94110-40800

11 parts on this diagram · 2 diagrams in section
