REAR BODY SIDE PANEL

65313PANEL, FLOOR FRONT CORNER, RH

main65313-95A00iLH11..IDN198211-198301

main65313-95A01iLH11,RH11..TW198211-198507

main65313-95A03iLH11,RH11..T1..(EUR,GEN)198211-198507

65314PANEL, FLOOR FRONT CORNER, LH

main65314-95A00iLH11,RH11..T1..(EUR,GEN)198211-198507

main65314-95A01iLH11,RH11..TW198211-198507

65315PANEL, FLOOR REAR CORNER, RH

main65315-95600iLH11,RH11..(T1,TW)..(ARL,EUR,GEN)198211-198507

65316PANEL, FLOOR REAR CORNER, LH

main65316-95600iLH11,RH11..(T1,TW)..(ARL,EUR,GEN)198211-198507

65500PANEL ASSY, REAR BODY SIDE, RH

main65500-95A02iLH11,RH11..TW198211-198507

main65500-95A06iLH11,RH11..T1..(EUR,GEN)198211-198507

main65500-95A07iLH11,RH11..T3198211-198507

6553

65600PANEL ASSY, REAR BODY SIDE, LH

main65600-95A02iLH11,RH11..TW198211-198507

main65600-95A05iLH11,RH11..T1..(EUR,GEN)198211-198507

main65600-95A06iLH11,RH11..T3198211-198507

65610SKIRT ASSY, SIDE PANEL, FRONT RH

main65621-95600iLH11,RH11..T1..(EUR,GEN)198211-198507

main65621-95A01iLH11,RH11..TW198211-198507

65620SKIRT ASSY, SIDE PANEL, FRONT LH

main65620-95A03iLH11,RH11..T1..(EUR,GEN)198211-198507

main65622-95A01iLH11,RH11..TW198211-198507

65631SKIRT, SIDE PANEL, REAR RH

main65601-95600iLH11..IDN198211-198507

main65601-95A01iLH11,RH11..(T1,TW)..(ARL,EUR,GEN)198211-198507

65632SKIRT, SIDE PANEL, REAR, LH

main65602-95600iLH11..IDN198211-198507

main65602-95A00iLH11,RH11..(T1,TW)..(ARL,EUR,GEN)198211-198507

65651PANEL, WHEEL HOUSE

main65651-95600iLH11,RH11..(T1,TW)..(ARL,EUR,GEN)198211-198507

65671BRACE, SIDE PANEL SKIRT, FRONT

main65671-95601iRH11..06S;LH11..06S..EUR;LH11..(T1,TW)..4H..CBU198211-198507

66120HINGE ASSY, SIDE GATE

main66110-95018iLH11,RH11..T3198211-198507

66120BRETAINER, SIDE GATE HINGE, LOWER

main66115-95012iLH11,RH11..T3198211-198507

sub66115-95018

66153LATCH, TAIL GATE FEMALE, RH

main66153-95012iLH11,RH11..T1,TW198211-198507

66154LATCH, TAIL GATE FEMALE, LH

main66153-95012iLH11,RH11..T1,TW198211-198507

66332CUSHION, RUBBER

main66332-95600iLH11,RH11..(T1,TW)..(ARL,EUR,GEN)198211-198308

sub66332-95A00

main66332-95A00iLH11..IDN198211-198507

7751

9017906009

main90179-06009

9017908146

main90179-08146

9020108422

main90201-08422

9054106005

main90541-06005

9111140616

main91111-40616

9152140816

main91521-40816

9165140616

main91651-40616

9327018016

main93270-18016

9327018025

main93270-18025

9327018030

main93270-18030

9411040800

main94110-40800

9451100600

main94511-00600

9461210601

main94612-10601

9461210800

main94612-10800

9461410800

main94614-10800

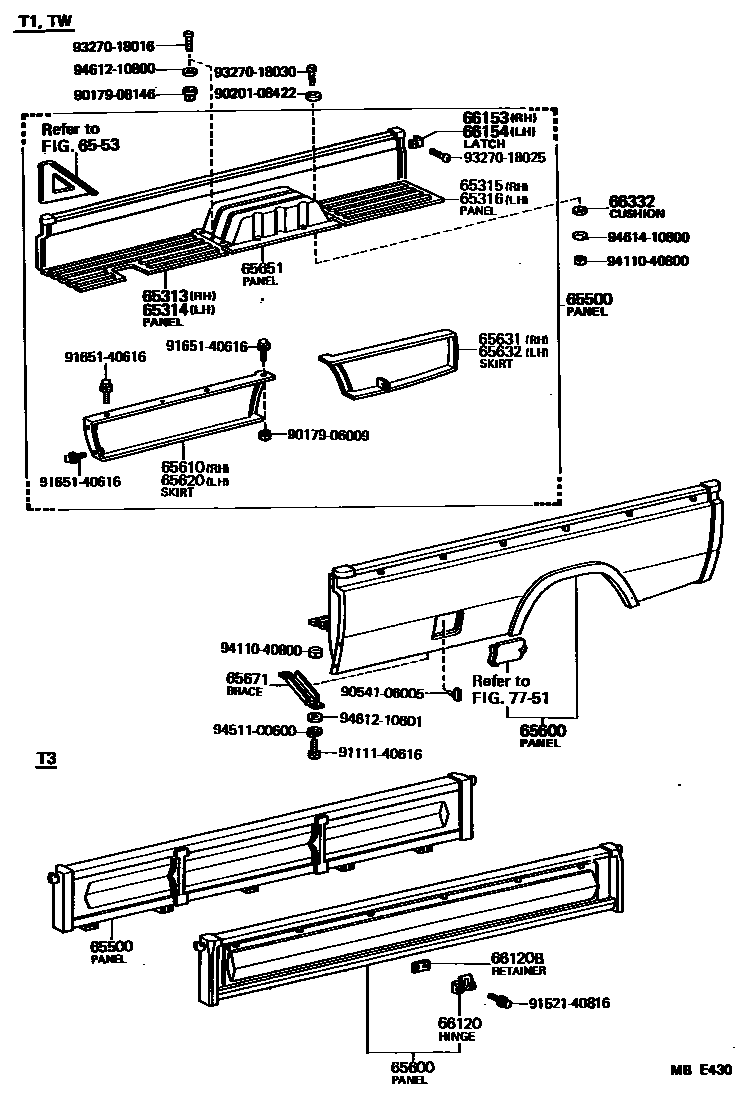

34 parts on this diagram · 1 diagram in section
