REAR BODY FLOOR & FENDER

65110SILL ASSY, MAIN, RH

main65120-95A00iLH11,RH11..T3198211-198507

65120SILL ASSY, MAIN, LH

main65120-95A00iLH11,RH11..T3198211-198507

65240CROSSMEMBER, REAR BODY FLOOR, TAIL

main65204-95011iLH11,RH11..T3198211-198507

main65240-95A00iLH11,RH11..(T1,TW)..(ARL,EUR,GEN)198211-198507

65311PANEL, FLOOR, CENTER

main65311-95010iLH11..IDN198211-198301

main65311-95A01iLH11,RH11..TW198211-198507

main65311-95A03iLH11,RH11..T1..(EUR,GEN)198211-198507

65317PANEL, FLOOR SIDE, RH

main65317-95A00iLH11,RH11..T3198211-198507

65318PANEL, FLOOR SIDE, LH

main65318-95A00iLH11,RH11..T3198211-198507

65351COVER, BATTERY SERVICE HOLE

main65305-95A01iLH11,RH11..T1..(EUR,GEN)198211-198507

65353PACKING, BATTERY SERVICE HOLE COVER

main65352-95A01iLH11,RH11..T1..(EUR,GEN)198211-198507

65354COVER, FUEL TANK SERVICE HOLE

main65305-95010iLH11,RH11..T1..(EUR,GEN)198211-198507

65354APACKING, FUEL TANK SERVICE HOLE COVER

main65352-95A00iLH11,RH11..T1..(EUR,GEN)198211-198507

66010FENDER ASSY, REAR BODY, REAR RH

main66233-95011iLH11,RH11..T3198211-198507

66020FENDER ASSY, REAR BODY, REAR LH

main66234-95011iLH11,RH11..T3198211-198507

66210FENDER ASSY, REAR BODY, FRONT RH

main66231-95011iLH11,RH11..T3198211-198507

66220FENDER ASSY, REAR BODY, FRONT LH

main66232-95011iLH11,RH11..T3198211-198507

66225SUPPORT, REAR MUDGUARD, RH

main66225-95011iLH11,RH11..T1,TW198211-198507

66226SUPPORT, REAR MUDGUARD, LH

main66225-95011iLH11,RH11..T1,TW198211-198507

66241MUDGUARD, REAR

main66241-95600iLH11,RH11198211-198507

66321BUMPER, GATE RUBBER

main66321-95010iLH11,RH11..T3198211-198507

TAIL

main66321-95013iLH11,RH11..T1,TW198211-198507

main66331-95010iLH11,RH11..T3198211-198507

SIDE

9015050031

main90150-50031

9017905095

main90179-05095

9017906009

main90179-06009

9017906164

main90179-06164

9111140614

main91111-40614

9151540620

main91515-40620

9166540825

main91665-40825

9166540830

main91665-40830

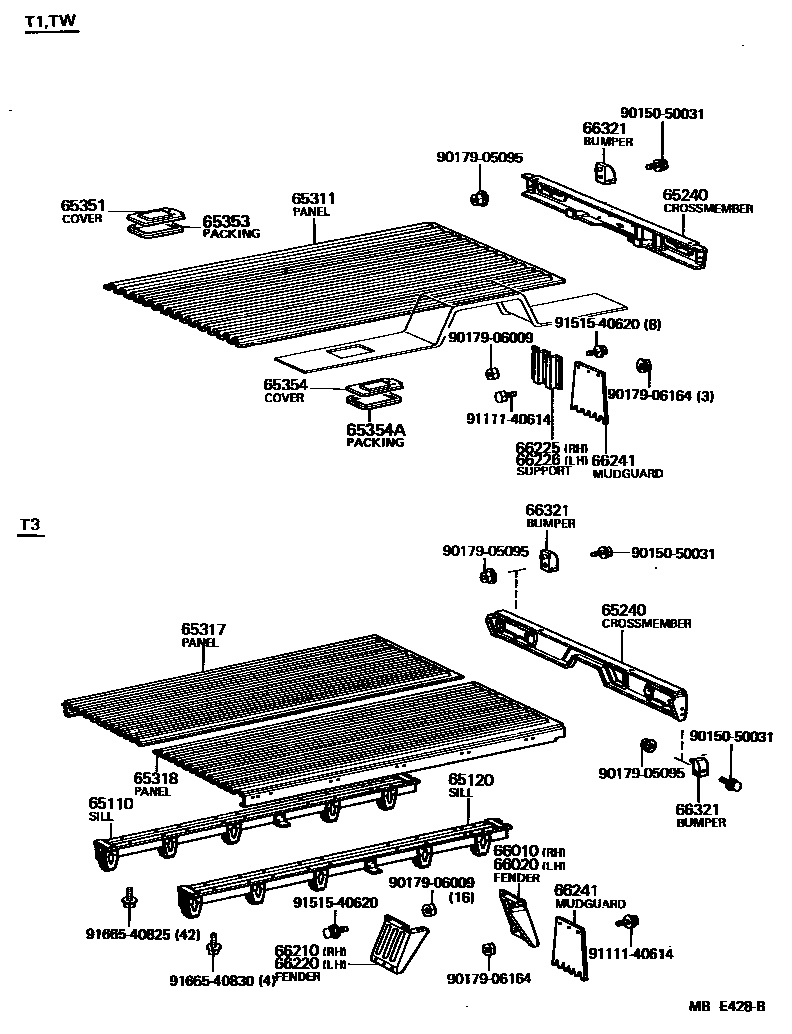

26 parts on this diagram · 1 diagram in section
