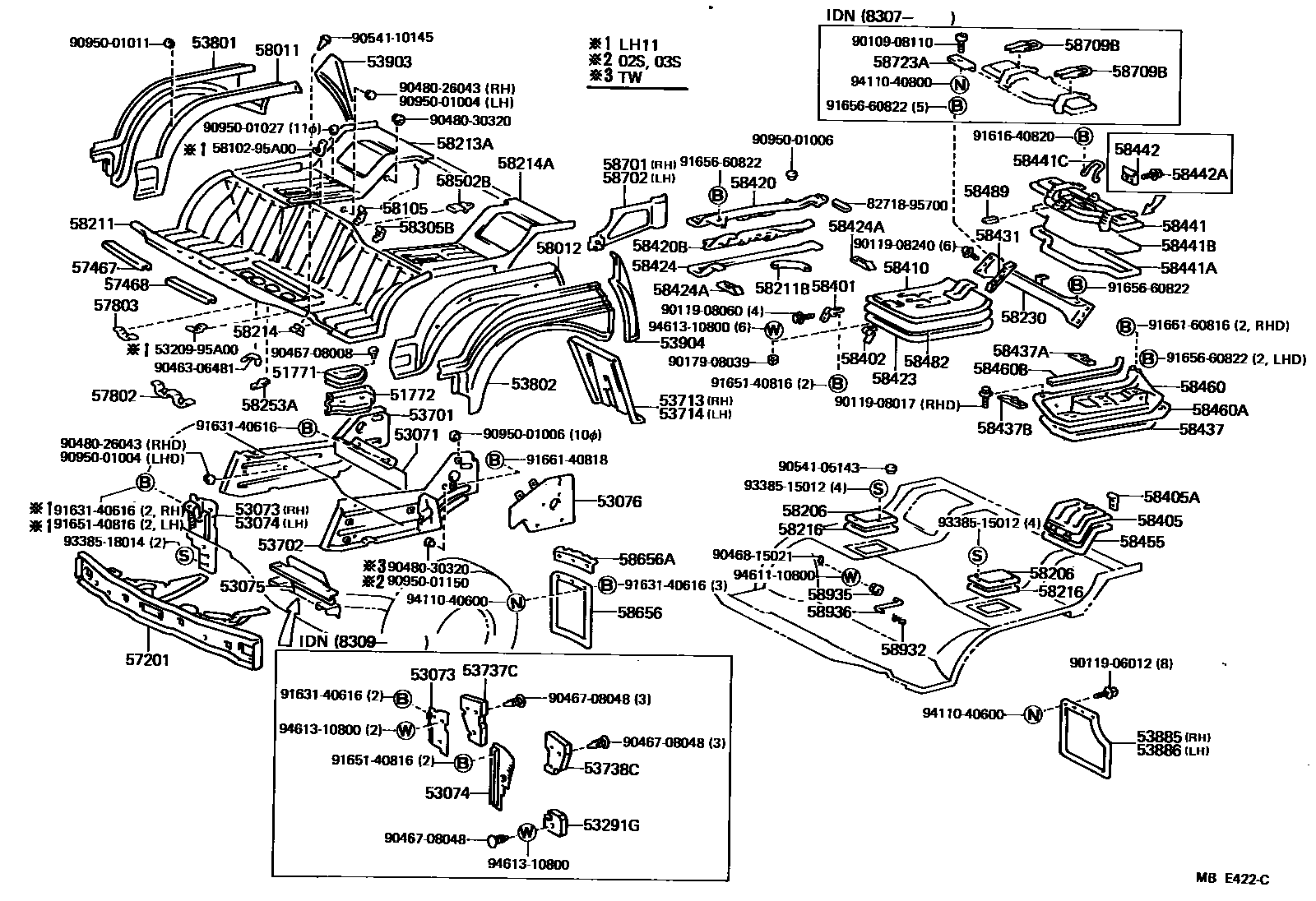

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

51771COVER, STEP PLATE, INNER

main51771-95A01iLH11,RH11198211-198507

RH

main51772-95A01iLH11,RH11198211-198507

LH

51772PLATE, STEP

main61403-95A02iLH11,RH11198211-198507

RH

main61404-95A02iLH11,RH11198211-198507

LH

53071SHUTTER SUB-ASSY, HOT AIR, UPPER

main53071-95A01iLH11,RH11198211-198507

53073SHUTTER SUB-ASSY, HOT AIR SIDE, RH

main53073-95A00iLH11198211-198309

main53073-95A01iLH11..IDN198309-198507

53074SHUTTER SUB-ASSY, HOT AIR SIDE, LH

main53074-95A00iRH11..ARL,GEN198211-198507

main53074-95A03iLH11198211-198309

main53074-95A04iLH11..IDN198309-198507

53075SHUTTER SUB-ASSY, HOT AIR, LOWER

main53075-95600iRH11198211-198507

main53075-95A00iLH11198211-198507

53076SHUTTER SUB-ASSY, HOT AIR, REAR

main53076-95A11iRH11..EUR198211-198507

main53076-95A16iLH11..(T1,T3)..(ARL,EUR,GEN)198211-198507

53291GSHIELD, RADIATOR TO FLOOR PANEL

main53291-95A00iLH11..IDN198309-198507

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-95A09iRH11..06S..(EUR,GEN)198211-198507

main53701-95A15iLH11..TW198211-198507

main53701-95A16iRH11..ARL..CBU198211-198507

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-95A16iRH11..03S198211-198507

main53702-95A17iRH11..06S..(EUR,GEN)198211-198507

ADR27A

main53702-95A22iRH11..03S..GEN198211-198507

AIR CLEANER = CYCLONE TYPE

main53702-95A23iRH11..06S..GEN198211-198507

AIR CLEANER = CYCLONE TYPE

main53702-95A30iRH11..ARL..CBU198211-198507

main53702-95A35iLH11..T1,T3198211-198507

main53702-95A36iLH11..TW198211-198507

53713APRON, FENDER SIDE, RH

main53703-95A00iLH11,RH11..ARL,EUR,GEN198211-198507

53714APRON, FENDER SIDE, LH

main53704-95A13iRH11..03S..(EUR,GEN)198211-198507

main53704-95A14iRH11..03S..GEN198211-198507

AIR CLEANER = CYCLONE TYPE

main53704-95A21iRH11..ARL..IV198211-198507

main53704-95A23iRH11..06S..(EUR,GEN)198211-198507

main53704-95A24iRH11..06S..GEN198211-198507

AIR CLEANER = CYCLONE TYPE

main53704-95A25iLH11..TW198211-198507

main53704-95A26iRH11..ARL..CBU198211-198507

main53714-95A06iLH11..T1,T3198211-198507

53737CSHUTTER, HOT AIR, LOWER RH

main53737-95A01iLH11..IDN198309-198507

53738CSHUTTER, HOT AIR, LOWER LH

main53738-95A01iLH11..IDN198309-198507

53801FENDER SUB-ASSY, FRONT RH

main61411-95A01iLH11,RH11198211-198507

53802FENDER SUB-ASSY, FRONT LH

main61412-95A01iLH11,RH11198211-198507

53885MUDGUARD, FRONT RH

main53881-95A01iLH11,RH11198211-198507

53886MUDGUARD, FRONT LH

main53881-95A01iLH11,RH11198211-198507

53903PLATE SUB-ASSY, FENDER, REAR RH

main61423-95A03iLH11,RH11198211-198507

53904PLATE SUB-ASSY, FENDER, REAR LH

main61424-95A03iLH11,RH11198211-198507

57201MOUNTING SUB-ASSY, FRONT FLOOR

main57310-95A00iLH11,RH11..RHD198211-198507

main57310-95A01iLH11,RH11..LHD198211-198507

57467STIFFENER, FRONT FLOOR SIDE, RH

main57467-95A00iLH11,RH11198211-198507

57468STIFFENER, FRONT FLOOR SIDE, LH

main57468-95A00iLH11,RH11198211-198507

57802BRACKET SUB-ASSY, BRAKE TUBE, NO.1

main58105-95A00iLH11,RH11198211-198507

57803BRACKET SUB-ASSY, BRAKE TUBE, NO.2

main58106-95A00×4iLH11,RH11198211-198507

58011PANEL SUB-ASSY, FRONT FLOOR SIDE, RH

main61421-95A01iLH11,RH11198211-198507

58012PANEL SUB-ASSY, FRONT FLOOR SIDE, LH

main61422-95A02iLH11,RH11198211-198507

58105BRACKET SUB-ASSY, CLAMP SET

main58107-95A00×2iLH11,RH11198211-198507

58206COVER SUB-ASSY, CAMBER SERVICE HOLE

main58215-95700×2iLH11,RH11198211-198507

58211PANEL, FRONT FLOOR

main58211-95A00iLH11,RH11..RHD..(ARL,EUR,GEN)198211-198507

W/HEATER

main58211-95A01iLH11,RH11..LHD198211-198507

W/HEATER

main58211-95A02iLH11,RH11..RHD..GEN198211-198507

main58211-95A03iLH11,RH11..LHD..GEN198211-198507

58211BPAD, FRONT FLOOR PANEL

main58291-95703iLH11,RH11198211-198507

sub58291-95704

58213APANEL, SEAT FLOOR, RH

main58204-95A00iLH11,RH11..RHD..03S..(ARL,EUR,GEN)198211-198507

main58204-95A01iLH11,RH11..LHD..(T1,T3)198211-198507

main58204-95A04iLH11,RH11..RHD..06S198211-198507

main58204-95A05iLH11,RH11..LHD..TW198211-198507

58214BRACKET, CLUTCH PEDAL STOPPER

main58316-95A00iLH11,RH11..LHD198211-198507

58214APANEL, SEAT FLOOR, LH

main58205-95A00iLH11,RH11..RHD..03S..(ARL,EUR,GEN)198211-198507

main58205-95A01iLH11,RH11..LHD..(T1,T3)198211-198507

main58205-95A02iLH11,RH11..RHD..06S198211-198507

main58205-95A03iLH11,RH11..LHD..TW198211-198507

58216PACKING, CAMBER SERVICE HOLE COVER

main58216-95700×2iLH11,RH11198211-198507

58230MEMBER ASSY, CENTER FLOOR CROSS

main58203-95A02iLH11,RH11..RHD..GEN198211-198507

main58203-95A03iLH11,RH11..LHD..GEN198211-198507

main58203-95A05iLH11,RH11..ARL198211-198507

main58203-95A07iRH11..RHD..GEN198211-198507

NEW ZEALAND SPEC

main58203-95A09iLH11,RH11..LHD..EUR198211-198507

main58203-95A10iLH11,RH11..RHD..EUR198211-198507

58253ABRACKET, PARKING CABLE CLAMP

main58308-95700×2iLH11,RH11198211-198507

58305BBRACKET ASSY, HEATER HOSE

main58305-95600×2iLH11,RH11..ARL,EUR,GEN198211-198507

58401HINGE SUB-ASSY, ENGINE SERVICE HOLE COVER, RH

main58043-95A02iLH11,RH11198211-198507

58402HINGE SUB-ASSY, ENGINE SERVICE HOLE COVER, LH

main58044-95A02iLH11,RH11198211-198507

58405COVER SUB-ASSY, AIR CLEANER SERVICE HOLE

main58202-95A00iRH11;LH11..TW198211-198311

main58202-95A01iLH11..T1,T3198211-198311

58405ABRACKET, AIR CLEANER SERVICE HOLE COVER

main58208-95A00×2iLH11,RH11..TW198211-198507

58410COVER, ENGINE SERVICE HOLE

main58401-95A02iLH11,RH11..RHD..(ARL,EUR,GEN)198211-198507

main58401-95A03iLH11,RH11..LHD198211-198507

58420COVER ASSY, ENGINE SERVICE HOLE, NO.2

main58402-95A00iRH11..ARL,GEN198211-198507

main58402-95A09iRH11..RHD..EUR198211-198507

main58402-95A10iRH11..LHD..EUR198211-198507

main58402-95A19iLH11..ARL,GEN198211-198507

main58402-95A21iLH11..RHD..EUR198211-198507

main58402-95A22iLH11..LHD..EUR198211-198507

58420BSILENCER, ENGINE SERVICE HOLE COVER, NO.2

main58471-95A04iLH11,RH11198211-198507

58423PACKING, ENGINE SERVICE HOLE COVER, NO.2

main58435-95A00iLH11,RH11..RHD..(ARL,EUR,GEN)198211-198507

main58435-95A01iLH11,RH11..LHD198211-198507

58424PACKING, ENGINE SERVICE HOLE COVER, NO.1

main58436-95A02iLH11,RH11198211-198507

58424APACKING, ENGINE SERVICE HOLE COVER SUB, NO.1

main58423-95A00×2iLH11,RH11198211-198507

58431PACKING, CENTER FLOOR CROSSMEMBER

main58421-95A00×2iLH11,RH11198211-198507

58437PACKING, ENGINE SERVICE HOLE COVER, NO.3

main58436-95A02iLH11,RH11198211-198507

58437APACKING, ENGINE SERVICE HOLE COVER SUB, NO.1

main58423-95A00iRH11..RHD;LH11..RHD..(EUR,GEN,IDN)198211-198507

main58424-95A00iRH11..LHD;LH11..LHD..CBU;LH11..LHD..EUR..IV;LH11..(ARL,GEN)..IV198211-198507

58437BPACKING, ENGINE SERVICE HOLE COVER SUB, NO.2

main58424-95A00iLH11,RH11198211-198507

58441COVER ASSY, ENGINE, REAR

main58404-95A04iRH11..03S198211-198507

main58404-95A05iLH11,RH11..TW198211-198507

main58404-95A07iLH11..(T1,T3)..(ARL,EUR,GEN)198211-198507

58441APACKING, ENGINE REAR COVER

main58438-95A00iLH11..IDN198211-198311

main58438-95A01iLH11,RH11..ARL,EUR,GEN198211-198311

main58438-95A02iLH11,RH11198311-198507

58441BSILENCER, ENGINE REAR COVER

main58464-95A01iLH11..IDN198211-198507

main58464-95A02iLH11,RH11..ARL,EUR,GEN198211-198507

58441CHOLDER, ENGINE REAR COVER

main58475-95A00iLH11,RH11..T1,T3198211-198507

58442HINGE, ENGINE COVER REAR FEMALE

main58419-95A02×2iLH11,RH11..TW198211-198507

58442ABOLT, ENGINE REAR COVER HINGE SET

main91616-40820×4iLH11,RH11..ARL,EUR,GEN198211-198507

58455PACKING, AIR CLEANER SERVICE HOLE

main58049-95A01iLH11,RH11198211-198507

58460COVER ASSY, ENGINE SERVICE HOLE, NO.3

main58403-95A05iLH11,RH11..LHD..EUR198211-198507

main58403-95A06iLH11,RH11..RHD..EUR198211-198507

main58433-95A00iLH11,RH11..RHD..(GEN,IDN)198211-198507

main58433-95A01iLH11,RH11..LHD..GEN198211-198507

58460ASILENCER, ENGINE SERVICE HOLE COVER, NO.3

main58472-95A02iRH11..RHD;LH11..RHD..(EUR,GEN,IDN)198211-198507

main58472-95A03iRH11..LHD;LH11..LHD..CBU;LH11..LHD..EUR..IV;LH11..(ARL,GEN)..IV198211-198507

58460BPAD, ENGINE COVER

main17719-95400iLH11,RH11198401-198507

sub58439-95701

main58411-95A00iLH11,RH11198211-198401

58482SILENCER, ENGINE COVER

main58463-95A00iLH11,RH11..RHD198211-198507

main58463-95A01iLH11,RH11..LHD198211-198507

58489KNOB, ENGINE COVER REAR LEVER

main58489-95A00iLH11..IDN198211-198507

main58489-95A01iLH11,RH11..ARL,EUR,GEN198211-198507

58502BBRACKET SUB-ASSY, ENGINE COVER

main58502-95A00iLH11,RH11..RHD198211-198507

58656PROTECTOR, CONTROL LINK

main58656-95A00iLH11,RH11198211-198507

58656ABRACKET, CONTROL LINK PROTECTOR

main58651-95A00iLH11,RH11198211-198507

58701PLATE SUB-ASSY, SEAT FLOOR UNDER SHIELD, RH

main57501-95A00iLH11,RH11..T1,T3198211-198507

58702PLATE SUB-ASSY, SEAT FLOOR UNDER SHIELD, LH

main57502-95A00iLH11,RH11..T1,T3198211-198507

main57502-95A03iLH11..IDN198211-198507

58709BCATCH SUB-ASSY, ENGINE SERVICE COVER

main58709-95A00×2iLH11..IDN198307-198507

58723APACKING, ENGINE SERVICE COVER, REAR

main58723-95A00iLH11..IDN198307-198507

58932SPRING, ENGINE COVER STAY

main90508-20005iLH11,RH11198211-198507

58935ROLLER, ENGINE COVER STAY

main58935-95600iLH11,RH11198211-198507

58936STAY, ENGINE COVER

main58936-95A00iLH11,RH11198211-198507

5320995A00BRACE SUB-ASSY, HOOD LOCK

main53209-95A00

5810295A00BAFFLE SUB-ASSY, RADIATOR SIDE, RH

main58102-95A00

8271895700

main82718-95700

9010908110

main90109-08110

9011906012

main90119-06012

9011908017

main90119-08017

9011908060

main90119-08060

9011908240

main90119-08240

9017908039

main90179-08039

9046306481

main90463-06481

9046708008

main90467-08008

9046708048

main90467-08048

9046815021

main90468-15021

9048026043

main90480-26043

9048030320

main90480-30320

9054105143

main90541-05143

9054110145

main90541-10145

9095001004

main90950-01004

9095001006

main90950-01006

9095001011

main90950-01011

9095001027

main90950-01027

9095001150

main90950-01150

9161640820

main91616-40820

9163140616

main91631-40616

9165140816

main91651-40816

9165660822

main91656-60822

9166140818

main91661-40818

9166160816

main91661-60816

9338515012

main93385-15012

9338518014

main93385-18014

9411040600

main94110-40600

9411040800

main94110-40800

9461110800

main94611-10800

9461310800

main94613-10800

108 parts on this diagram · 1 diagram in section
