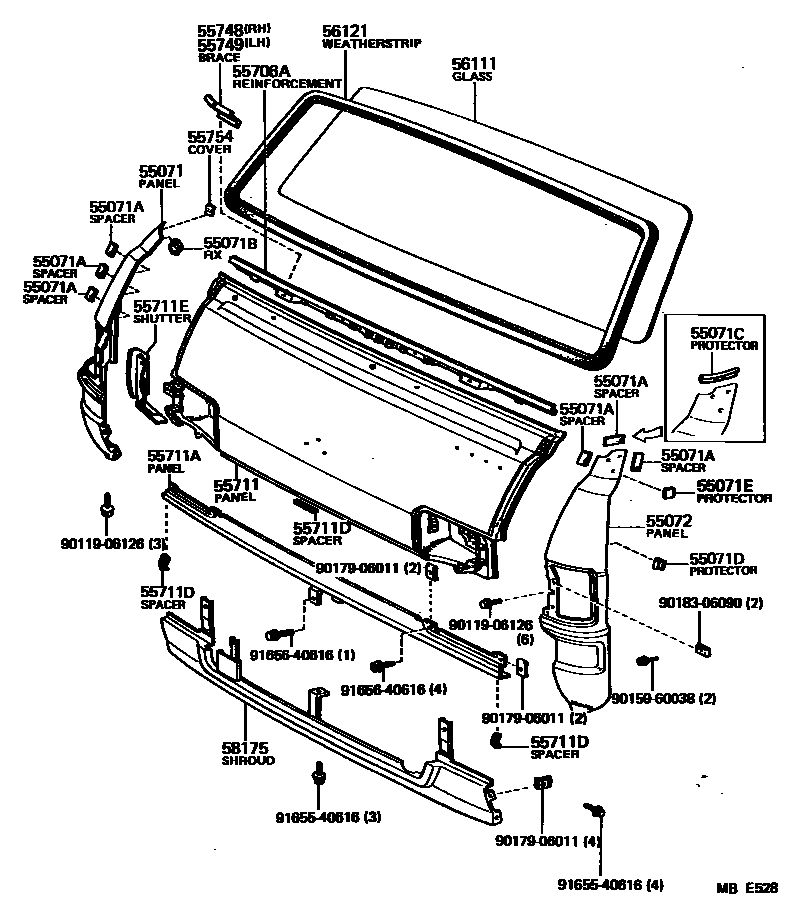

FRONT PANEL & WINDSHIELD GLASS

55071PANEL SUB-ASSY, FRONT SIDE, RH

main53801-95A00iLH11,RH11..ARL,GEN,IDN¥12,100198211-198309

sub53801-95A02¥12,100

main53801-95A01iLH11,RH11..EUR¥12,100198211-198507

main53801-95A02iLH11,RH11¥12,100198309-198507

sub53801-95A01¥12,100

55071ASPACER, FRONT SIDE PANEL

main53817-95A00iLH11,RH11¥300198211-198507

T=2.0

main53878-95A00iLH11,RH11198305-198507

T=5.0

55071BFIX, FRONT SIDE PANEL

main74999-95A01iLH11,RH11¥390198211-198507

55071CPROTECTOR, FRONT SIDE PANEL, NO.1

main53815-95A00iLH11,RH11¥700198211-198507

RH

main53816-95A00iLH11,RH11¥700198211-198507

LH

55071DPROTECTOR, FRONT SIDE PANEL, NO.2

main53814-95A00iLH11,RH11¥260198302-198507

main53814-95A01iLH11,RH11¥250198211-198302

sub53814-95A00¥260

55071EPROTECTOR, FRONT SIDE PANEL, NO.3

main90950-06001iLH11,RH11..ARL..IV¥170198211-198507

55072PANEL SUB-ASSY, FRONT SIDE, LH

main53802-95A00iLH11,RH11..LHD..GEN¥12,100198211-198507

sub53802-95A02¥12,100

main53802-95A01iLH11,RH11..RHD..(ARL,GEN,IDN)¥12,100198211-198309

sub53802-95A03¥12,100

main53802-95A02iLH11,RH11..EUR¥12,100198211-198507

main53802-95A03iLH11,RH11..RHD¥12,100198309-198507

55706AREINFORCEMENT SUB-ASSY, FRONT PANEL, UPPER

main55706-95A01iLH11,RH11..LHD198211-198507

main55706-95A02iLH11,RH11..RHD..(ARL,EUR,GEN)198211-198507

55711PANEL, COWL TOP, OUTER

main55071-95A02iLH11,RH11..RHD..(ARL,EUR,GEN)¥50,300198211-198507

main55071-95A03iLH11,RH11..LHD¥46,800198211-198507

55711APANEL, FRONT, LOWER

main55703-95A03iLH11,RH11¥3,540198211-198507

55711DSPACER, FRONT LOWER PANEL

main55718-95A00iLH11,RH11¥300198211-198507

CENTER

main55741-95A00iLH11,RH11¥300198211-198507

RH

main55742-95A00iLH11,RH11¥300198211-198507

LH

55711ESHUTTER SUB-ASSY, FRONT AIR

main55707-95A00iLH11,RH11¥1,940198211-198507

RH

main55708-95A00iLH11,RH11¥1,940198211-198507

LH

55748BRACE, COWL TOP TO PILLAR, RH

main55725-95A00iLH11,RH11198211-198507

55749BRACE, COWL TOP TO PILLAR, LH

main55726-95A00iLH11,RH11198211-198507

55754COVER WINDSHIELD

main55754-95A00iLH11,RH11198211-198507

56111GLASS, WINDSHIELD

main56111-95A00iLH11,RH11..EUR,GEN,IDN¥41,900198211-198507

*ZT,T=5.0

sub56111-95A02¥85,100

main56111-95A02iLH11,RH11..ARL,EUR,GEN¥85,100198211-198507

*LAM,T=5.7

56121WEATHERSTRIP, WINDSHIELD

main56121-95A00iLH11,RH11..EUR,GEN,IDN¥11,600198211-198507

main56121-95A05iLH11,RH11..ARL,EUR,GEN¥13,600198211-198507

W/MOULDING

58175SHROUD, RADIATOR, LOWER

main53901-95A04iLH11,RH11..RHD¥7,400198211-198507

main53901-95A05iLH11,RH11..LHD¥8,000198211-198507

9011906126

main90119-06126¥70

9015960038

main90159-60038¥190

9017906011

main90179-06011¥190

9018306090

main90183-06090¥140

9165540616

main91655-40616¥120

9165640616

main91656-40616¥100

24 parts on this diagram · 1 diagram in section
