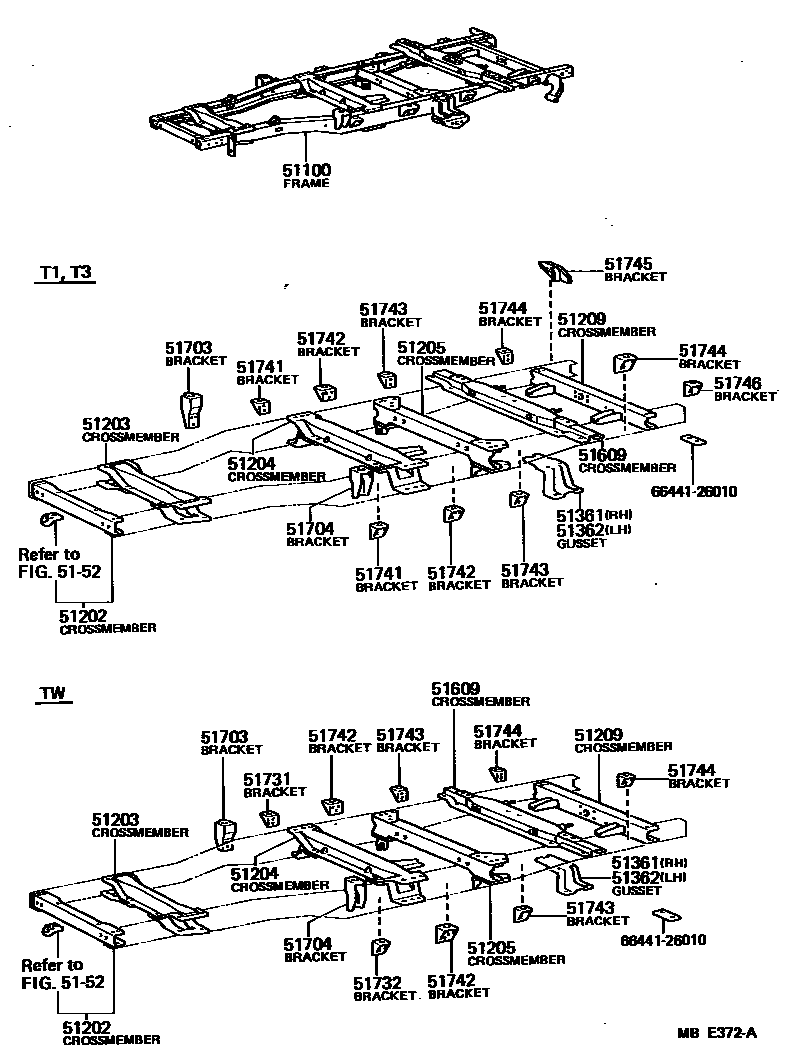

FRAME
51100FRAME ASSY
51202CROSSMEMBER SUB-ASSY, FRAME, NO.1
51203CROSSMEMBER SUB-ASSY, FRAME, NO.2
51204CROSSMEMBER SUB-ASSY, FRAME, NO.3
51205CROSSMEMBER SUB-ASSY, FRAME, NO.4
51209CROSSMEMBER SUB-ASSY, FRAME, NO.8
51361GUSSET, CROSSMEMBER, NO.6 RH
51362GUSSET, CROSSMEMBER, NO.6 LH
5152
51609CROSSMEMBER SUB-ASSY, REAR SHOCK ABSORBER SUPPORT
51703BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH
51704BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH
51731BRACKET, CAB REAR MOUNTING, RH
51732BRACKET, CAB REAR MOUNTING, LH
51741BRACKET, REAR BODY MOUNTING, NO.1
51742BRACKET, BODY MOUNTING, NO.2
51743BRACKET, BODY MOUNTING, NO.3
51744BRACKET, BODY MOUNTING, NO.4
51745BRACKET, BODY MOUNTING, NO.5
51746BRACKET, BODY MOUNTING, NO.6
6644126010SHIM, MOUNTING, NO.1
main66441-26010
21 parts on this diagram · 1 diagram in section
