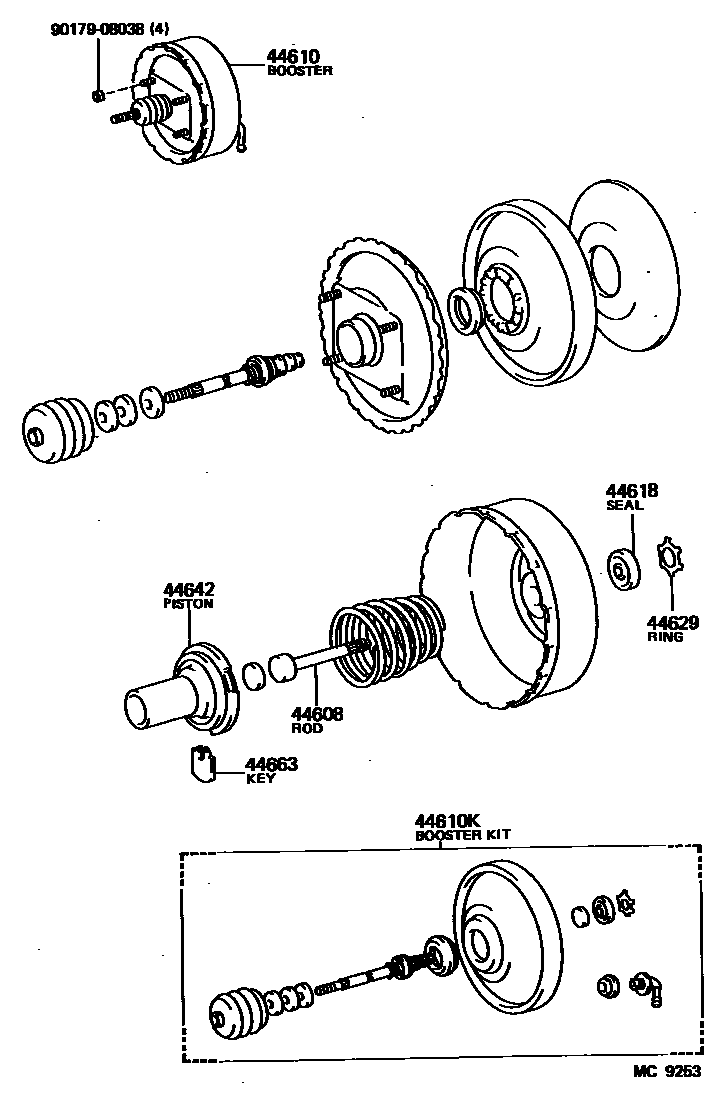

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-12520iLH11,RH11¥2,660198410-198507

main44606-32010iLH11,RH11198211-198410

44610BOOSTER ASSY, BRAKE

main44610-26140iRH11¥50,600198211-198507

9IN BOOSTER

sub44610-26260¥46,000

main44610-26150iLH11..ARL,EUR,GEN¥50,600198211-198507

9IN BOOSTER

sub44610-26260¥46,000

main44610-26160iRH11..GEN¥42,200198211-198507

8IN BOOSTER

sub44610-26170¥42,200

main44610-26170iLH11..4H¥42,200198211-198507

8IN BOOSTER

44610KBOOSTER KIT, BRAKE

main04443-26100iRH11¥12,700198211-198507

9IN BOOSTER

main04443-26110iLH11..ARL,EUR,GEN¥12,700198211-198507

9IN BOOSTER

main04443-26120iRH11..GEN¥11,600198211-198507

8IN BOOSTER

main04443-26130iLH11..4H¥11,600198211-198507

8IN BOOSTER

44618SEAL, BOOSTER BODY

main44621-28120iLH11,RH11¥590198211-198507

44629RING, CIRCULAR INTERNAL

main44628-28120iLH11,RH11¥390198211-198507

44642PISTON, BRAKE BOOSTER

main44642-27120iLH11,RH11..GEN,IDN¥5,500198211-198507

8IN BOOSTER

main44642-32010iLH11,RH11..ARL,EUR,GEN¥6,100198211-198507

9IN BOOSTER

44663KEY, VALVE STOPPER

main44635-28120iLH11,RH11¥370198211-198507

9017908038

main90179-08038¥130

8 parts on this diagram · 3 diagrams in section
