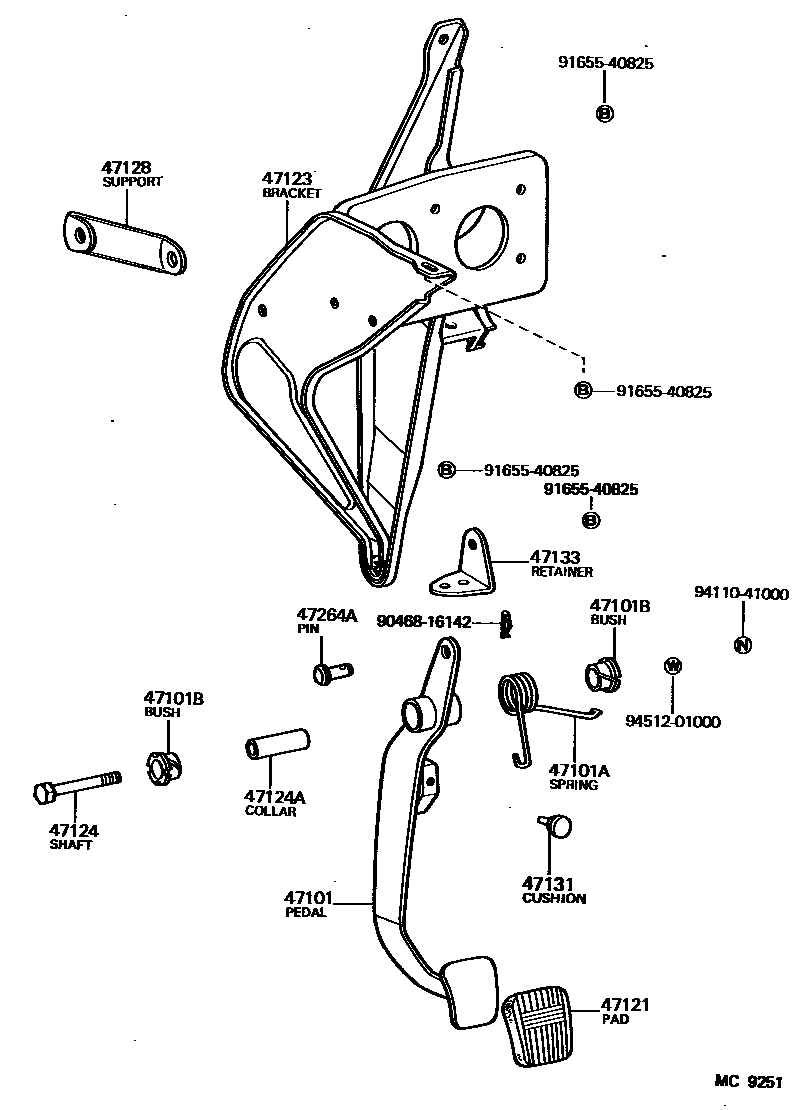

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-26030iLH11,RH11198211-198507

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90508-32002iLH11,RH11198211-198507

47101BBUSH(FOR BRAKE PEDAL)

main90386-13007iLH11,RH11198211-198507

47121PAD, BRAKE PEDAL

main31321-14010iLH11,RH11198211-198507

47123BRACKET, BRAKE PEDAL

main55160-95A07iRH11..LHD198211-198507

sub55160-95A08

main55160-95A08iLH11..LHD198211-198507

main55160-95A12iLH11,RH11..RHD198211-198507

47124SHAFT, BRAKE PEDAL

main91121-51070iLH11,RH11198211-198507

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10004iLH11,RH11198211-198507

47128SUPPORT SUB-ASSY, PEDAL BRACKET

main55172-95A00iLH11,RH11198211-198507

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06008iLH11,RH11198211-198507

47133RETAINER, PEDAL BRACKET, LOWER

main55702-95A00iLH11,RH11..RHD198211-198507

main55772-95A01iLH11,RH11..LHD198211-198507

47264APIN(FOR PUSH ROD)

main90240-10015iLH11,RH11198211-198507

9046816142

main90468-16142

9165540825

main91655-40825

9411041000

main94110-41000

9451201000

main94512-01000

15 parts on this diagram · 1 diagram in section
