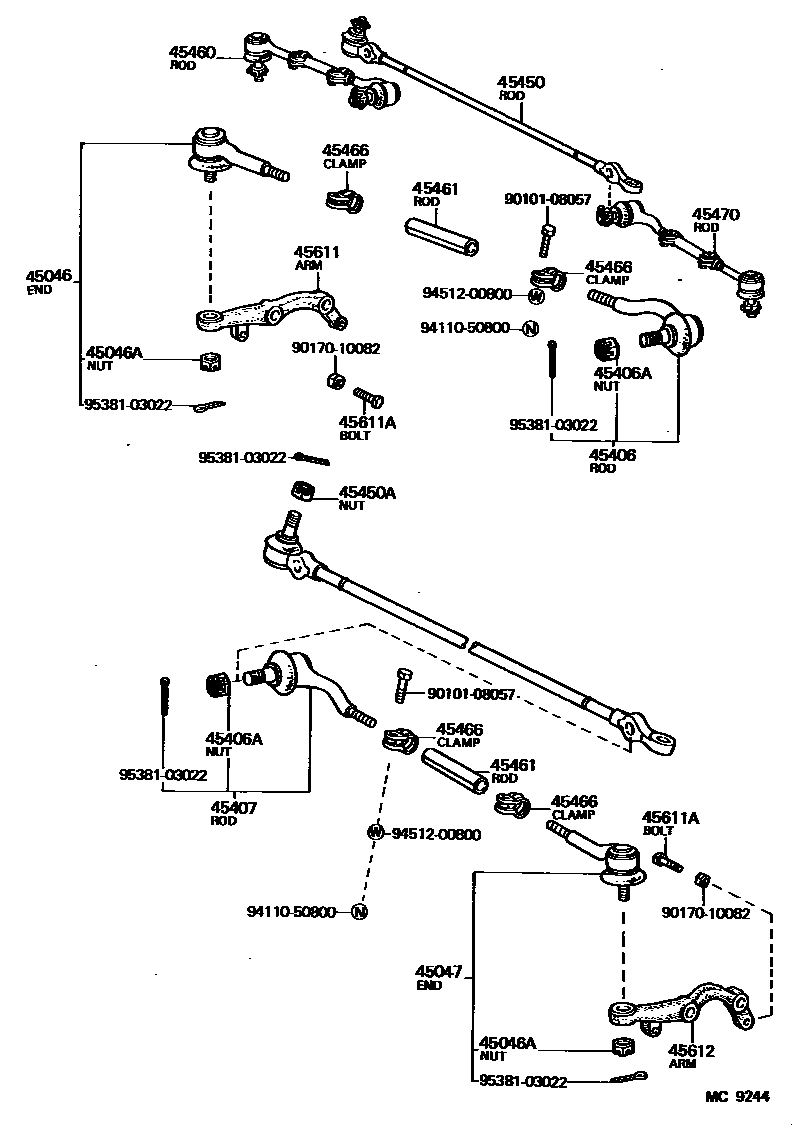

FRONT STEERING GEAR & LINK

0001 1 0002 1

45046END SUB-ASSY, TIE ROD, RH

main45046-29105iLH11,RH11198211-198507

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-14042iLH11,RH11198211-198507

45047END SUB-ASSY, TIE ROD, LH

main45046-29105iLH11,RH11198211-198507

45406ROD SUB-ASSY, TIE, RH

main45406-29095iLH11,RH11198211-198507

45406ANUT, CASTLE(FOR TIE ROD)

main90171-14042iLH11,RH11198211-198507

45407ROD SUB-ASSY, TIE, LH

main45406-29095iLH11,RH11198211-198507

45450ROD ASSY, STEERING RELAY

main45450-29065iLH11,RH11..RHD198211-198507

main45450-29075iLH11,RH11..LHD198211-198507

45450ANUT, CASTLE(FOR RELAY ROD)

main90171-14042iLH11,RH11198211-198507

45460ROD ASSY, TIE, RH

main45460-29185iLH11,RH11198211-198507

45461ROD, STEERING TIE

main45465-26010iLH11,RH11198211-198507

45466CLAMP, TIE ROD END

main45466-30020iLH11,RH11198211-198507

45470ROD ASSY, TIE, LH

main45460-29185iLH11,RH11198211-198507

45611ARM, STEERING KNUCKLE, RH

main45611-26020iLH11,RH11198211-198507

45611ABOLT, KNUCKLE STOPPER

main90106-10006iLH11,RH11198211-198507

45612ARM, STEERING KNUCKLE, LH

main45612-26020iLH11,RH11198211-198507

9010108057

main90101-08057

9017010082

main90170-10082

9411050800

main94110-50800

9451200800

main94512-00800

9538103022

main95381-03022

20 parts on this diagram · 2 diagrams in section
