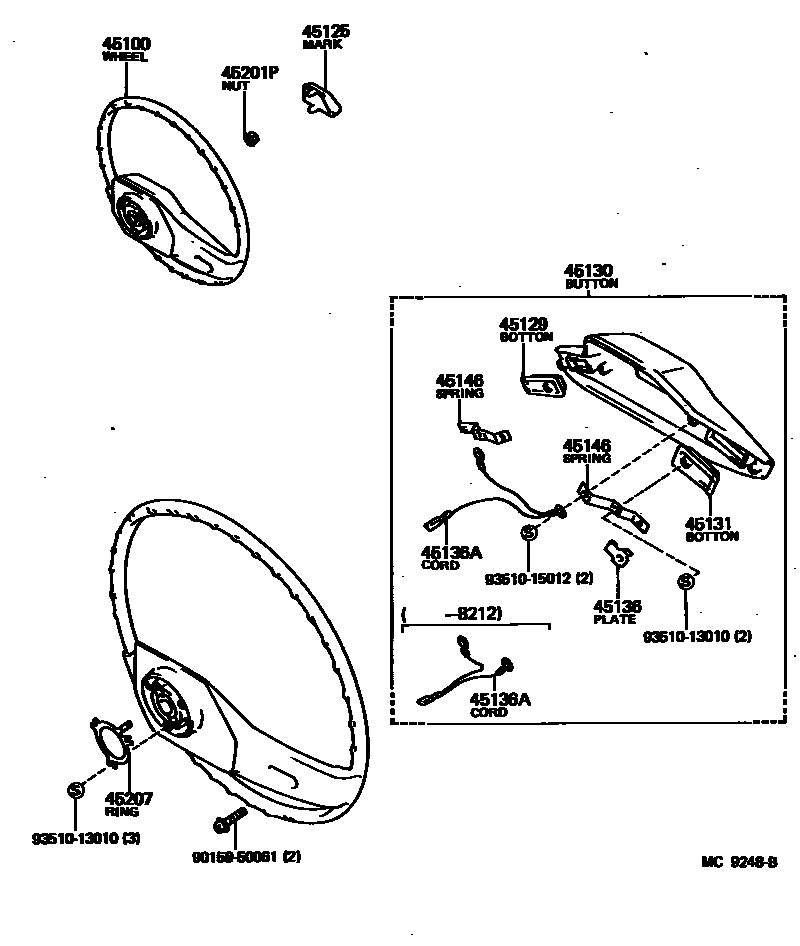

STEERING WHEEL

0001 1 0002 1

45100WHEEL ASSY, STEERING

main45100-26080-01iLH11,RH11198211-198507

BLACK

sub45100-26080

main45100-26090-01iLH11,RH11..EUR198211-198507

2-SPOKE,URETHANE,URETHANE,BLACK

sub45100-26090

45125MARK, STEERING WHEEL PAD

main45125-26050-01iLH11,RH11198211-198507

BLACK

sub45125-26050

45129BUTTON, HORN, NO.2

main45131-26030iLH11,RH11198211-198507

45130BUTTON ASSY, HORN

main45130-26060-01iLH11,RH11198211-198507

BLACK

sub45130-26060

main45130-26070-01iLH11,RH11..EUR198211-198507

URETHANE TYPE,BLACK

sub45130-26070

45131BUTTON, HORN, NO.1

main45129-26020iLH11,RH11198212-198507

main45131-26030iLH11,RH11198211-198212

45136PLATE, HORN BUTTON CONTACT

main45136-26020iLH11,RH11198211-198507

45136ACORD(FOR HORN CONTACT RING)

main90945-02013iLH11,RH11198211-198212

main90945-02068iLH11,RH11198212-198507

45146SPRING, HORN BUTTON CONTACT

main45146-26020iLH11,RH11198211-198507

45201PNUT, STEERING WHEEL SET

main90179-12086iLH11,RH11198211-198507

45207RING, HORN CONTACT

main45176-20030iLH11,RH11..EUR198211-198507

URETHANE TYPE

main45176-30070iLH11,RH11198211-198507

9015950061

main90159-50061

9351013010

main93510-13010

9351015012

main93510-15012

13 parts on this diagram · 2 diagrams in section
