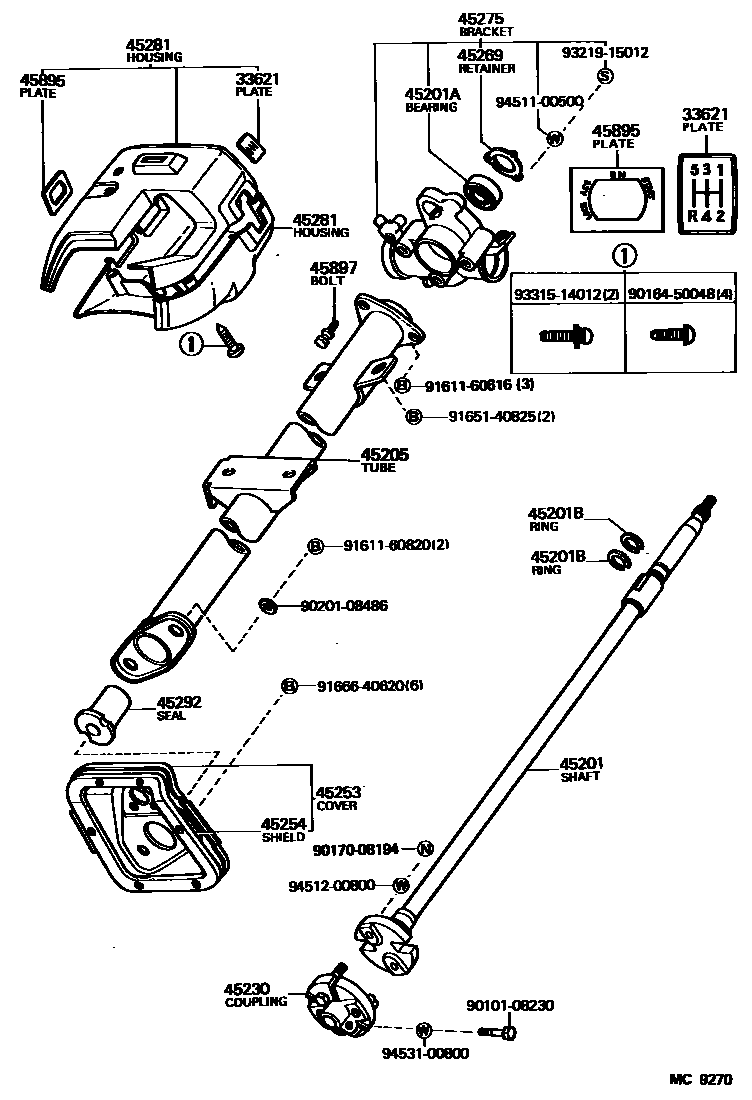

STEERING COLUMN & SHAFT
33621PLATE, CONTROL LEVER CAUTION
45201SHAFT SUB-ASSY, STEERING MAIN
45201ABEARING(FOR STEERING MAIN SHAFT)
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
T=1.20,LWR
T=1.20,UPR
45205TUBE SUB-ASSY, STEERING COLUMN
45230COUPLING ASSY, FLEXIBLE
45253COVER, STEERING COLUMN HOLE
45254SHIELD, STEERING COLUMN HOLE
45269RETAINER, MAIN SHAFT BEARING
45281HOUSING, STEERING COLUMN
UPR
45292SEAL, MAIN SHAFT LOWER DUST
45895PLATE, STEERING LOCK CAUTION
45897BOLT, STEERING LOCK SET
9010108230
main90101-08230
9016450048
main90164-50048
9017008194
main90170-08194
9020108486
main90201-08486
9161160616
main91611-60616
9161160820
main91611-60820
9165140825
main91651-40825
9166640620
main91666-40620
9321915012
main93219-15012
9331514012
main93315-14012
9451100500
main94511-00500
9451200800
main94512-00800
9453100800
main94531-00800
27 parts on this diagram · 2 diagrams in section
