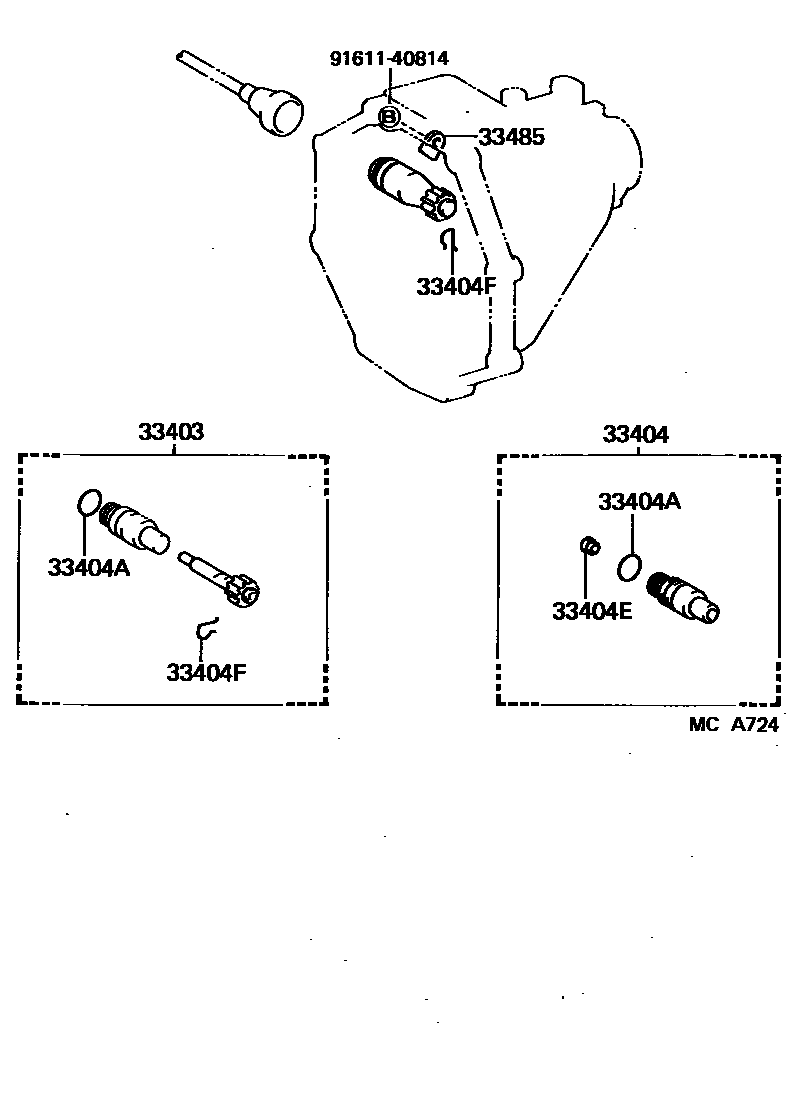

SPEEDOMETER DRIVEN GEAR (MTM)

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33482-29045iLH11..4H198211-198507

N=19,MARK 19:5,N=19

main33482-29045iLH11..4H198211-198507

N=19,MARK 19:5,*AXC=G142,N=19

main33482-29055iLH11..ARL,GEN198211-198507

N=17,MARK 17:5,N=17

main33482-39045iLH11..EUR198211-198507

N=20,MARK 20:6,N=20

main33482-39095iRH11..GEN198211-198507

N=16,MARK 16:4,*AXC=G162,N=16

main33482-39105iRH11..ARL198211-198507

N=17,MARK 17:4,N=17

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-35010iLH11,RH11198211-198507

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90301-18018iLH11,RH11198211-198507

33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iLH11,RH11198211-198507

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iLH11,RH11198211-198507

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-30020iLH11,RH11198211-198507

9161140814

main91611-40814

7 parts on this diagram · 1 diagram in section
